EA2-12 Series

Manufacturer: KEMET

Catalog

RELAY GEN PURPOSE DPDT 1A 12V

Part	Coil Resistance	Contact Form	Contact Rating (Current)	Coil Type	Coil Voltage	Load - Max Switching	Contact Material	Release Time	Must Release Voltage	Must Operate Voltage	Relay Type	Termination Style	Switching Voltage [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Approval Agency	Operate Time
KEMET EA2-12TNJ	1030 Ohms	DPDT (2 Form C)	1 A	Dual Coil Latching	12 VDC	220 W 250 VA	Gold Alloy Silver Alloy	1 ms	1.2 VDC	9 VDC	General Purpose	PC Pin	220 VDC 250 VAC	Through Hole	85 °C	-40 C	11.7 mA	CSA UR	2 ms

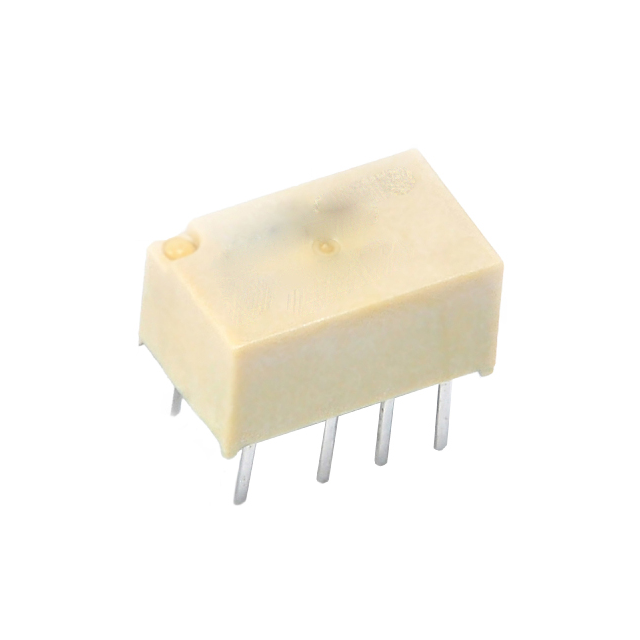

KEMET EA2-12NJ	1030 Ohms	DPDT (2 Form C)	1 A	Non Latching	12 VDC	220 W 250 VA	Gold Alloy Silver Alloy	1 ms	1.2 VDC	9 VDC	General Purpose	PC Pin	220 VDC 250 VAC	Through Hole	85 °C	-40 C	11.7 mA	CSA UR	2 ms
KEMET EA2-12SNU	1440 Ohms	DPDT (2 Form C)	1 A	Latching Single Coil	12 VDC	220 W 250 VA	Gold Alloy Silver Alloy	1 ms		9 VDC	General Purpose	PC Pin	220 VDC 250 VAC	Through Hole	85 °C	-40 C	8.3 mA	CSA UR	2 ms
KEMET EA2-12TNU	1030 Ohms	DPDT (2 Form C)	1 A	Dual Coil Latching	12 VDC	220 W 250 VA	Gold Alloy Silver Alloy	1 ms		9 VDC	General Purpose	PC Pin	220 VDC 250 VAC	Through Hole	85 °C	-40 C	11.7 mA	CSA UR	2 ms
KEMET EA2-12NU	1030 Ohms	DPDT (2 Form C)	1 A	Non Latching	12 VDC	220 W 250 VA	Gold Alloy Silver Alloy	1 ms	1.2 VDC	9 VDC	General Purpose	PC Pin	220 VDC 250 VAC	Through Hole	85 °C	-40 C	11.7 mA	CSA UR	2 ms
