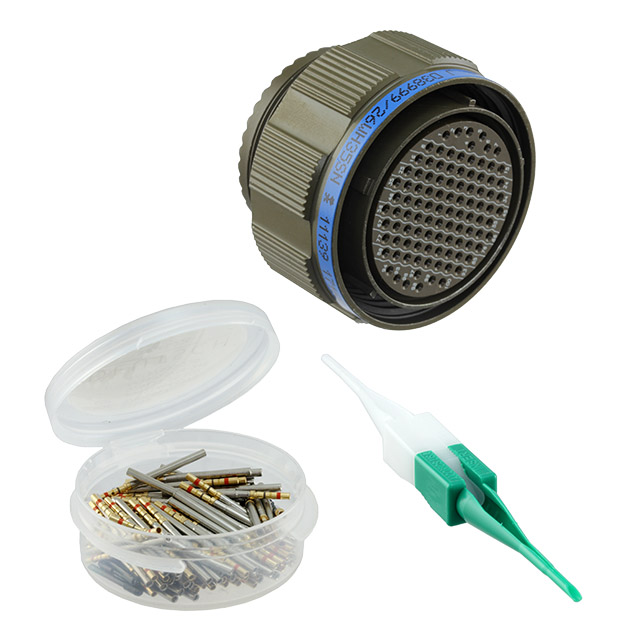

D38999/26WH Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
PLUG ASSY
| Part | Note | Orientation | Shell Material | Number of Positions | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Grade | Ingress Protection | Qualification | Primary Material | Type | Fastening Type | Features | Shell Finish | Shell Size, MIL | Housing Color | Contact Size | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Mounting Type | Contact Type | Connector Type | Insert Material | Shielding | Current Rating (Amps) | Color | Contact Finish - Mating | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Voltage Rating | Voltage Rating | Applications | Contact Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors | Contacts Not Included | B | Aluminum | 100 | Circular | -65 ░C | 175 °C | Military | Environment Resistant | MIL-DTL-38999 Series III | Metal | For Male Pins | Threaded | Coupling Nut | Cadmium | H | Olive Drab | 22D | 35 | 23 | Free Hanging (In-Line) | Crimp | Plug Housing | Thermoplastic | Shielded | |||||||||||
TE Connectivity AMP Connectors | A | Aluminum | 55 | -65 ░C | 175 °C | Military | Environment Resistant | MIL-DTL-38999 Series III | Metal | Threaded | Self Locking | Olive Drab Cadmium | H | 55 | 23 | Free Hanging (In-Line) | Plug Female Sockets | Thermoplastic | Shielded | 7.5 A | Olive Drab | Gold | Copper Alloy | 50 µin | 1.27 µm | Crimp | 600 VAC | 850 VDC | Aviation Communication Systems Industrial Military | |||||||
 TE Connectivity AMP Connectors | N (Normal) | Aluminum | 100 | -65 ░C | 175 °C | Military | Environment Resistant | MIL-DTL-38999 Series III | Metal | Threaded | Self Locking | Olive Drab Cadmium | H | 35 | 23 | Free Hanging (In-Line) | Plug Female Sockets | Thermoplastic | Shielded | 5 A | Olive Drab | Gold | Copper Alloy | 50 µin | 1.27 µm | Crimp | Aviation Communication Systems Industrial Military | |||||||||
TE Connectivity AMP Connectors | Contacts Not Included | N (Normal) | Aluminum | 55 | Circular | -65 ░C | 175 °C | Military | Environment Resistant | MIL-DTL-38999 Series III | Metal | For Female Sockets | Threaded | Coupling Nut | Cadmium | H | Olive Drab | 55 | 23 | Free Hanging (In-Line) | Crimp | Plug Housing | Thermoplastic | Shielded | 20 | |||||||||||
TE Connectivity AMP Connectors | B | Aluminum | 21 | -65 ░C | 175 °C | Military | Environment Resistant | MIL-DTL-38999 Series III | Metal | Threaded | Self Locking | Olive Drab Cadmium | H | 23 | 21 | Free Hanging (In-Line) | Plug Male Pins | Thermoplastic | Shielded | 13 A | Olive Drab | Gold | Copper Alloy | 50 µin | 1.27 µm | Crimp | 750 Vrms 1050 VDC | Aviation Communication Systems Industrial Military | ||||||||
TE Connectivity AMP Connectors | A | Aluminum | 21 | -65 ░C | 175 °C | Military | Environment Resistant | MIL-DTL-38999 Series III | Metal | Threaded | Self Locking | Olive Drab Cadmium | H | 23 | 21 | Free Hanging (In-Line) | Plug Male Pins | Thermoplastic | Shielded | 13 A | Olive Drab | Gold | Copper Alloy | 50 µin | 1.27 µm | Crimp | 750 Vrms 1050 VDC | Aviation Communication Systems Industrial Military |
