PZT4403 Series

Catalog

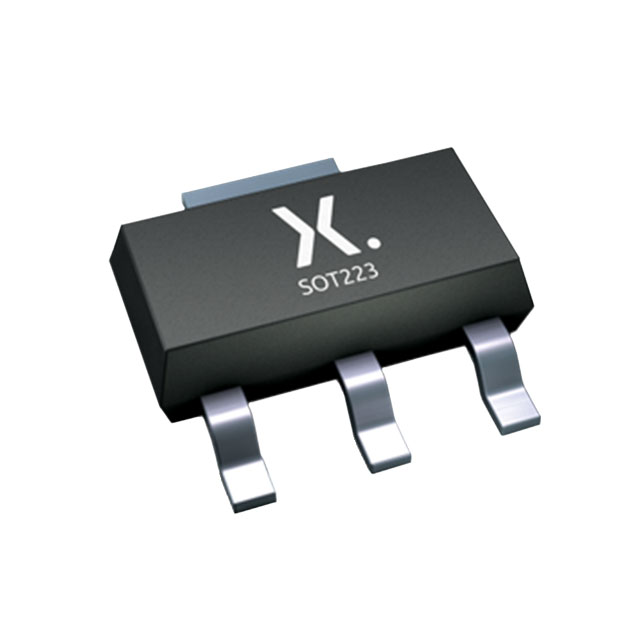

TRANS PNP 40V 0.6A SOT223

Part	Current - Collector (Ic) (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Frequency - Transition	Current - Collector Cutoff (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Grade	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Transistor Type	Operating Temperature	Package / Case	Qualification	Supplier Device Package	Power - Max [Max]
Freescale Semiconductor - NXP PZT4403,115	600 mA	100	200 MHz	50 nA	750 mV	Automotive	Surface Mount	40 V	PNP	150 °C	TO-261-4 TO-261AA	AEC-Q101	SOT-223	1.15 W
