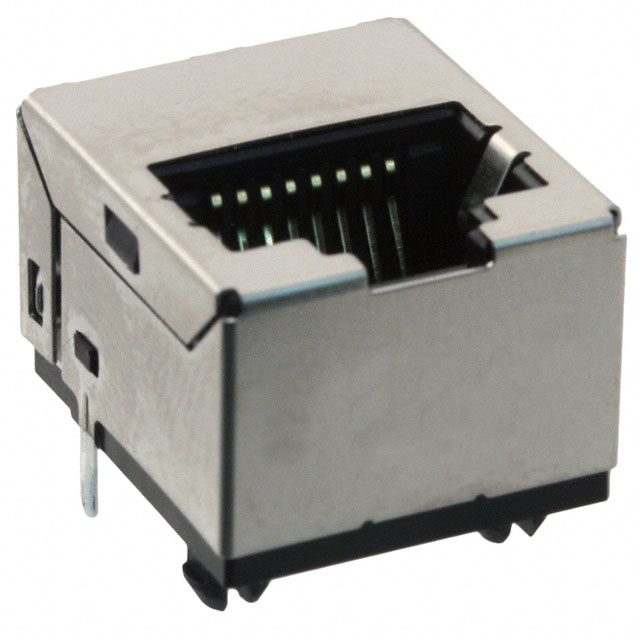

SMJ103 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN JACK 1PORT 100 BASE-T PCB
| Part | Housing Material | Contact Finish Thickness | Contact Finish Thickness | Shield Material | Mounting Type | Contact Material | Tab Direction | Contact Finish | Number of Ports | Applications | Height Above Board [z] | Height Above Board [z] | Termination | Connector Type | Features | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | LED Color | Orientation | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 0.152 Ám | 6 Áin | Brass | Through Hole | Phosphor Bronze | User Selectable | Gold | 1 | 10/100 Base-T AutoMDIX | 12 mm | 0.472 in | Solder | RJ45 | Board Lock | 1 | 70 °C | 0 °C | Does Not Contain LED | Vertical | Shielded |
