RB1-1A Series

Catalog

SWITCH ROCKER SPST 10A 125V

Part	Mechanical Life	Electrical Life	Voltage Rating - DC	Color - Actuator/Cap	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Actuator Type	Termination Style	Voltage Rating - AC	Mounting Type	Switch Function	Panel Cutout Dimensions [diameter]	Current Rating (Amps)

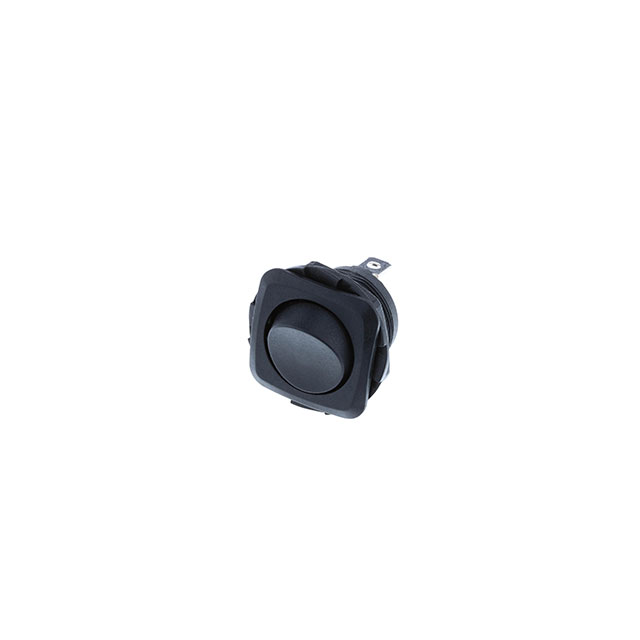

Switch Components RB1-1A-DC-2-B	10000 Steps	6000 Cycles	14 V	Black	No Marking	85 °C	-25 °C	SPST	Round	Quick Connect	125 V	Panel Mount Threaded Body with Nut	On-Off	20.2 mm	16 A 20 A
Switch Components RB1-1A-AC-2-B				Black	No Marking	85 °C	-25 °C	SPST	Round	Quick Connect		Panel Mount Threaded Body with Nut	On-Off	20.2 mm	16 A

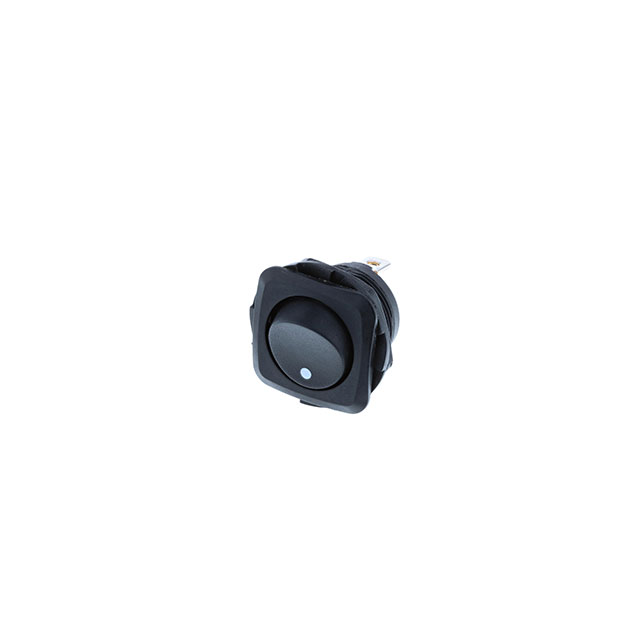

Switch Components RB1-1A-DC-2-B-3	10000 Steps	6000 Cycles	14 V	Black	Dot	85 °C	-25 °C	SPST	Round	Quick Connect	125 V	Panel Mount Threaded Body with Nut	On-Off	20.2 mm	16 A 20 A

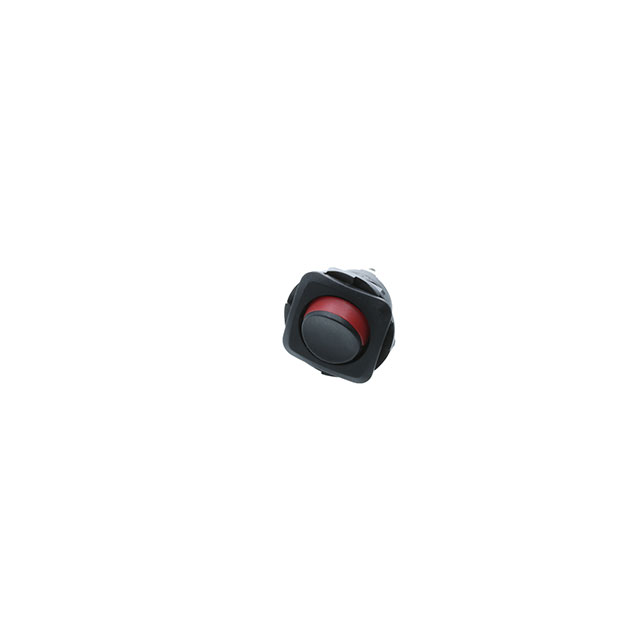

Switch Components RB1-1A-DC-2-R	10000 Steps	6000 Cycles	14 V	Black Red	No Marking	85 °C	-25 °C	SPST	Round	Quick Connect	125 V	Panel Mount Threaded Body with Nut	On-Off	20.2 mm	16 A 20 A
Switch Components RB1-1A-AC-2-B-3				Black	Dot	85 °C	-25 °C	SPST	Round	Quick Connect		Panel Mount Threaded Body with Nut	On-Off	20.2 mm	16 A
Switch Components RB1-1A-DC-2-B-1	10000 Steps	6000 Cycles	14 V	Black	O -	85 °C	-25 °C	SPST	Round	Quick Connect	125 V	Panel Mount Threaded Body with Nut	On-Off	20.2 mm	16 A 20 A
Switch Components RB1-1A-AC-2-B-1				Black	O -	85 °C	-25 °C	SPST	Round	Quick Connect		Panel Mount Threaded Body with Nut	On-Off	20.2 mm	16 A
