77804WS Series
Manufacturer: Belden Inc.
Beta
⌘K

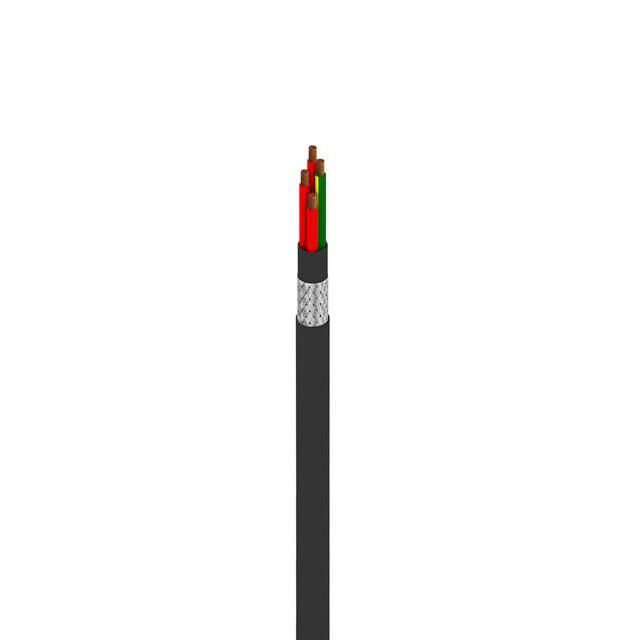

CABLE 4COND 18AWG BLK SHLD
| Part | Shield Coverage | Shield Material | Cable Type | Wire Gauge | Ratings | Features | Jacket (Insulation) Material | Conductor Material | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Number of Conductors | Conductor Strand | Operating Temperature [Min] | Operating Temperature [Max] | Shield Type | Length | Length | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % | Copper Tinned | Multi-Conductor | 18 AWG | UL Style 2587 | Oil Resistant | Poly-Vinyl Chloride (PVC) | Copper Bare | Poly-Vinyl Chloride (PVC) | 1.016 mm | 0.04 in | Black | 4 | 38 AWG 105 | -5 °C | 90 °C | Braid | 152.4 m | 500 ft | 600 V | 0.414 " | 10.52 mm | ||
 Belden Inc. | 85 % | Copper Tinned | Multi-Conductor | 18 AWG | UL Style 2587 | Oil Resistant | Poly-Vinyl Chloride (PVC) | Copper Bare | Poly-Vinyl Chloride (PVC) | 1.016 mm | 0.04 in | Black | 4 | 38 AWG 105 | -5 °C | 90 °C | Braid | 600 V | 0.414 " | 10.52 mm | 100 ft | 30.5 m |
