SJD12A Series

Manufacturer: YAGEO

Catalog

ESD PROTECTION DIODES / TVS DIODES UND WKG51V 1CH SMD SOD1232 BKDN56.7V

Part	Package / Case	Applications	Power - Peak Pulse	Power - Peak Pulse	Current - Peak Pulse (10/1000µs)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Unidirectional Channels [custom]	Voltage - Reverse Standoff (Typ)	Supplier Device Package	Type	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Breakdown (Min) [Min]	Current - Peak Pulse (10/1000µs) [custom]

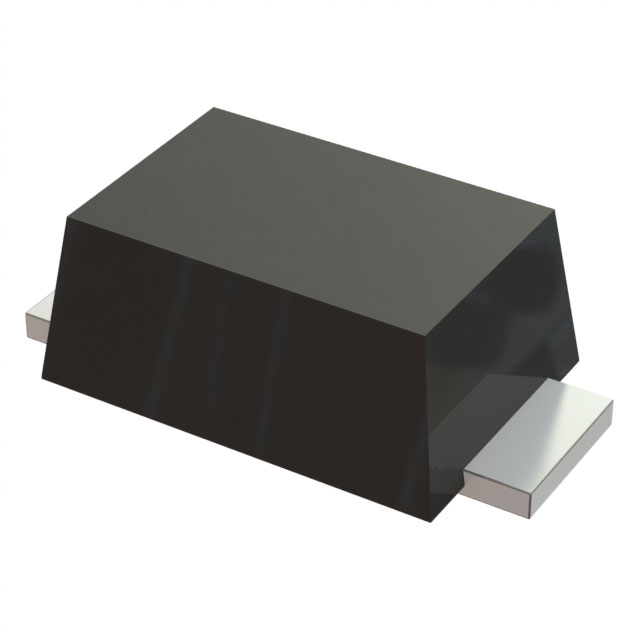

YAGEO SJD12A51L01	DO-219AA	General Purpose	1 kW	1000 W	2.5 A	150 °C	-55 °C	Surface Mount	1	51 V	SOD-123S	Zener	82.4 V
YAGEO SJD12A05L01	DO-219AA	General Purpose	1 kW	1000 W	21.8 A	150 °C	-55 °C	Surface Mount	1	5 V	SOD-123S	Zener	9.2 V	6.4 V
YAGEO SJD12A36L01	DO-219AA	General Purpose	1 kW	1000 W	3.5 A	150 °C	-55 °C	Surface Mount	1	36 V	SOD-123S	Zener	58.1 V	40 V
YAGEO SJD12A24L01	DO-219AA	General Purpose	1 kW	1000 W	5.2 A	150 °C	-55 °C	Surface Mount	1	24 V	SOD-123S	Zener	38.9 V	26.7 V
YAGEO SJD12A06L01	DO-219AA	General Purpose	1 kW	1000 W	19.4 A	150 °C	-55 °C	Surface Mount	1	6 V	SOD-123S	Zener	10.3 V	6.67 V
YAGEO SJD12A14L01	DO-219AA	General Purpose	1 kW	1000 W	8.6 A	150 °C	-55 °C	Surface Mount	1	14 V	SOD-123S	Zener	23.2 V	15.6 V
YAGEO SJD12A28L01	DO-219AA	General Purpose	1 kW	1000 W	4.4 A	150 °C	-55 °C	Surface Mount	1	28 V	SOD-123S	Zener	45.4 V	31.1 V
YAGEO SJD12A43L01	DO-219AA	General Purpose	1 kW	1000 W	2.9 A	150 °C	-55 °C	Surface Mount	1	43 V	SOD-123S	Zener	69.4 V	47.8 V
YAGEO SJD12A10L01	DO-219AA	General Purpose	1 kW	1000 W	11.8 A	150 °C	-55 °C	Surface Mount	1	10 V	SOD-123S	Zener	17 V	11.1 V
YAGEO SJD12A20L01	DO-219AA	General Purpose	1 kW	1000 W		150 °C	-55 °C	Surface Mount	1	20 V	SOD-123S	Zener	32.4 V	22.2 V	6.2 A
