MF-VS Series

Catalog

PTC RESET FUSE 16V 2.1A STRAP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Max [Max]	Time to Trip	Package / Case	Current - Hold (Ih) (Max) [Max]	Current - Trip (It)	Resistance - Post Trip (R1) (Max) [Max]	Type	Mounting Type	Thickness (Max) [Max] [z]	Thickness (Max)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Max [Max]	Resistance - Initial (Ri) (Min) [Min]	Approval Agency
Bourns Inc. MF-VS210SS-0	85 °C	-40 C	100 A	5 s	Strap	2.1 A	4.7 A	60 mOhms	Polymeric	User Defined	0.035 in	0.9 mm	0.205 "	0.866 "	22 mm	5.2 mm	16 V	18 mOhms
Bourns Inc. MF-VS210N-0	85 °C	-40 C	100 A	5 s	Strap	2.1 A	4.7 A	60 mOhms	Polymeric	User Defined	0.035 in	0.9 mm	0.148 in	1.22 in	31 mm	3.75 mm	12 V	18 mOhms	cURus TUV
Bourns Inc. MF-VS175N-0	85 °C	-40 C	100 A	3 s	Strap	1.75 A	3.5 A	102 mOhms	Polymeric	User Defined							12 V	29 mOhms	cURus TUV
Bourns Inc. MF-VS170S-0	85 °C	-40 C	100 A	3 s	Strap	1.7 A	3.4 A	105 mOhms	Polymeric	User Defined	0.035 in	0.9 mm	0.205 "	0.669 in	17 mm	5.2 mm	16 V	30 mOhms

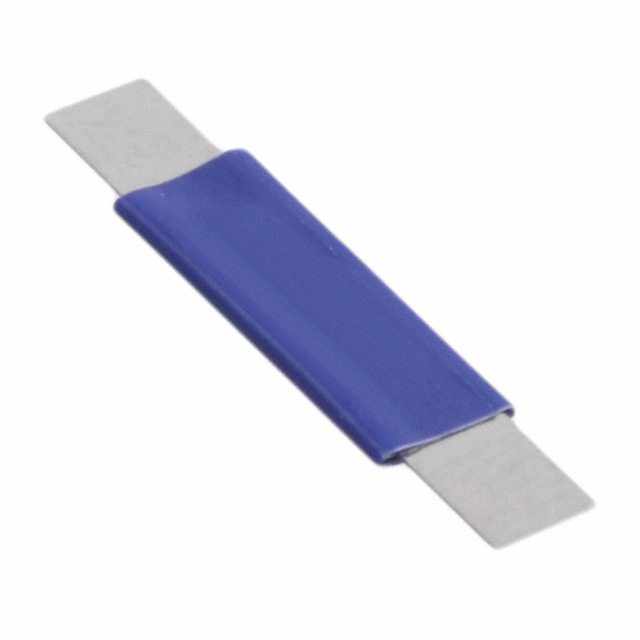

Bourns Inc. MF-VS210-0	85 °C	-40 C	100 A	5 s	Strap	2.1 A	4.7 A	60 mOhms	Polymeric	User Defined	0.035 in	0.9 mm	0.205 "	0.866 "	22 mm	5.2 mm	16 V	18 mOhms	cURus TUV
Bourns Inc. MF-VS170N-0	85 °C	-40 C	100 A	3 s	Strap	1.7 A	3.4 A	105 mOhms	Polymeric	User Defined	0.035 in	0.9 mm	0.148 in	0.906 in	23 mm	3.75 mm	12 V	30 mOhms	cURus TUV
