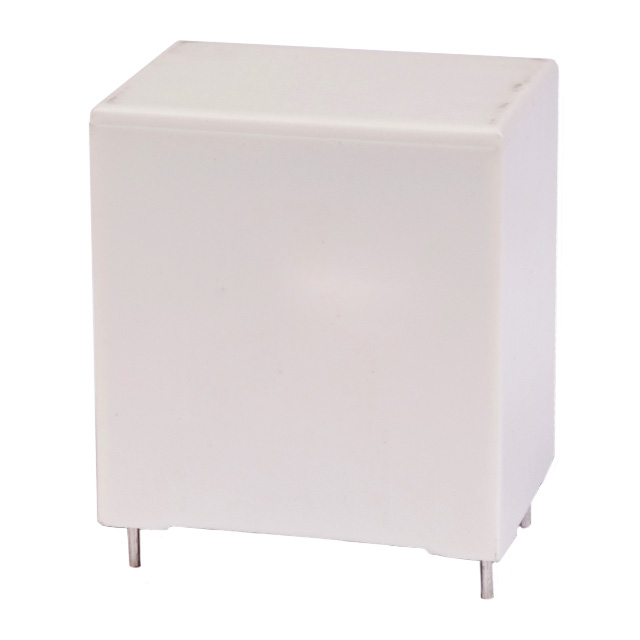

4ATHBW Series
Manufacturer: KEMET
Beta
⌘K
CAP FILM 3.3UF 600V PP 5%( 32 X 22 X 37MM) RADIAL PLASTIC RECTANGULAR CAN 27.5MM 0.0024 OHM 85°C BULK
| Part | Termination | Voltage Rating - DC | Mounting Type | Tolerance | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | ESR (Equivalent Series Resistance) | Applications | Height - Seated (Max) | Height - Seated (Max) [Max] [z] | Capacitance | Lead Spacing | Lead Spacing | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Voltage Rating - AC | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | PC Pins | 600 V | Through Hole | 5 % | 85 °C | -40 C | Polypropylene (PP) Metallized | 2.4 mOhms | DC Filtering DC Link High Frequency Switching | 37 mm | 1.457 in | 3.3 µF | 27.5 mm | 1.083 in | 0.866 in | 1.26 in | 32 mm | 22 mm | 350 V | Radial - 4 Leads |
