LP5866 Series

6 × 18 LED matrix driver with 8-bit analog and 8-/16-bit PWM dimming

Catalog

6 × 18 LED matrix driver with 8-bit analog and 8-/16-bit PWM dimming

Part	Voltage - Output [Max]	Voltage - Output [Min]	Number of Outputs	Topology	Voltage - Supply (Max)	Package / Case [custom]	Package / Case [custom]	Package / Case	Internal Switch(s)	Applications	Current - Output / Channel	Supplier Device Package	Dimming	Frequency	Mounting Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]

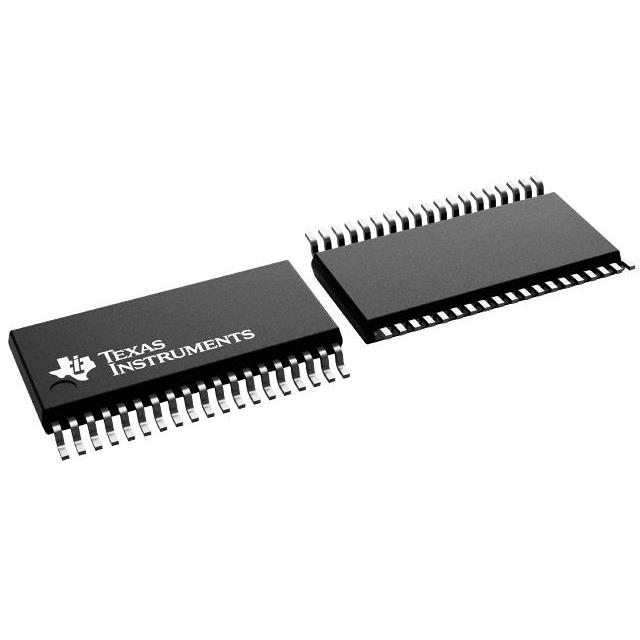

Texas Instruments LP5866MDBTR	5.5 V	2.7 V	18	Constant Current	5.5 V	4.4 mm	0.173 in	38-TFSOP		General Purpose	50 mA	38-TSSOP	Analog PWM	1 MHz 12 MHz	Surface Mount	Linear	125 °C	-55 °C
Texas Instruments LP5866RKPR			18	Constant Current	5.5 V			40-VFQFN Exposed Pad		General Purpose	50 mA	40-VQFN (5x5)	Analog PWM	31.2 MHz	Surface Mount	Linear			85 °C	-40 °C

Catalog

6 × 18 LED matrix driver with 8-bit analog and 8-/16-bit PWM dimming

Key Features

• LED matrix topology:18 constant current sinks with 6 scan switches for 108 LED dotsConfigurable for 1 to 6 scan switchesOperating voltage range:VCC/VLED range: 2.7V to 5.5VLogic pins compatible with 1.8V, 3.3V, and 5V18 constant current sinks with high precision:0.1mA – 50mA per current sink when VCC ≥ 3.3VDevice-to-device error: ±3% when channel current = 50mAChannel-to-channel error: ±3% when channel current = 50mAPhase-shift for balanced transient powerUltra-low power consumption:Shutdown mode: ICC ≤ 1µA when EN = LowStandby mode: ICC ≤ 10µA (15µA for LP5866MDBT) when EN = High and CHIP_EN = 0 (data retained)Active mode: ICC = 4.3mA (typ.) when channel current = 5mAFlexible dimming options:Individual ON, OFF control for each LED dotAnalog dimming (current gain control)Global 3-bit Maximum Current (MC) setting for all LED dots3 groups of 7-bit Color Current (CC) setting for red, green, and blueIndividual 8-bit Dot Current (DC) setting for each LED dotPWM dimming with audible-noise-free frequencyGlobal 8-bit PWM dimming for all LED dots3 programmable groups of 8-bit PWM dimming for LED dot arbitrary mappingIndividual 8-bit or 16-bit PWM dimming for each LED dotFull addressable SRAM to minimize data trafficIndividual LED dot open and short detectionDeghosting and low brightness compensationInterface options:1MHz (max.) I2C interface when IFS = Low12MHz (max.) SPI interface when IFS = HighLED matrix topology:18 constant current sinks with 6 scan switches for 108 LED dotsConfigurable for 1 to 6 scan switchesOperating voltage range:VCC/VLED range: 2.7V to 5.5VLogic pins compatible with 1.8V, 3.3V, and 5V18 constant current sinks with high precision:0.1mA – 50mA per current sink when VCC ≥ 3.3VDevice-to-device error: ±3% when channel current = 50mAChannel-to-channel error: ±3% when channel current = 50mAPhase-shift for balanced transient powerUltra-low power consumption:Shutdown mode: ICC ≤ 1µA when EN = LowStandby mode: ICC ≤ 10µA (15µA for LP5866MDBT) when EN = High and CHIP_EN = 0 (data retained)Active mode: ICC = 4.3mA (typ.) when channel current = 5mAFlexible dimming options:Individual ON, OFF control for each LED dotAnalog dimming (current gain control)Global 3-bit Maximum Current (MC) setting for all LED dots3 groups of 7-bit Color Current (CC) setting for red, green, and blueIndividual 8-bit Dot Current (DC) setting for each LED dotPWM dimming with audible-noise-free frequencyGlobal 8-bit PWM dimming for all LED dots3 programmable groups of 8-bit PWM dimming for LED dot arbitrary mappingIndividual 8-bit or 16-bit PWM dimming for each LED dotFull addressable SRAM to minimize data trafficIndividual LED dot open and short detectionDeghosting and low brightness compensationInterface options:1MHz (max.) I2C interface when IFS = Low12MHz (max.) SPI interface when IFS = High

Description

Electronic devices are becoming smarter, requiring to use larger quantity of LEDs for animation and indication purpose. A high-performance LED matrix driver is required to improve user experience with small solution size. The LP586x devices are a family of high performance LED matrix drivers. The device integrates 18 constant current sinks with N (N = 1/2/4/6/8/11) switching MOSFETs to support N × 18 LED dots or N × 6 RGB LEDs. The LP5866 integrates 6 MOSFETs for up to 108 LED dots or 36 RGB LEDs. The LP5866 supports both analog dimming and PWM dimming methods. For analog dimming, each LED dot can be adjusted with 256 steps. For PWM dimming, the integrated 8-bit or 16-bit configurable PWM generators enable smooth and audible-noise-free dimming control. Each LED dot can also be arbitrarily mapped into 8-bit group PWM to achieve dimming control together. The LP5866 device implements full addressable SRAM to minimize the data traffic. The ghost-cancellation circuitry is integrated to eliminate both upside and downside ghosting. The LP5866 also supports LED open and short detection functions. Both 1MHz (maximum) I2C and 12MHz (maximum) SPI are available in LP5866. Electronic devices are becoming smarter, requiring to use larger quantity of LEDs for animation and indication purpose. A high-performance LED matrix driver is required to improve user experience with small solution size. The LP586x devices are a family of high performance LED matrix drivers. The device integrates 18 constant current sinks with N (N = 1/2/4/6/8/11) switching MOSFETs to support N × 18 LED dots or N × 6 RGB LEDs. The LP5866 integrates 6 MOSFETs for up to 108 LED dots or 36 RGB LEDs. The LP5866 supports both analog dimming and PWM dimming methods. For analog dimming, each LED dot can be adjusted with 256 steps. For PWM dimming, the integrated 8-bit or 16-bit configurable PWM generators enable smooth and audible-noise-free dimming control. Each LED dot can also be arbitrarily mapped into 8-bit group PWM to achieve dimming control together. The LP5866 device implements full addressable SRAM to minimize the data traffic. The ghost-cancellation circuitry is integrated to eliminate both upside and downside ghosting. The LP5866 also supports LED open and short detection functions. Both 1MHz (maximum) I2C and 12MHz (maximum) SPI are available in LP5866.
