HDSP-460 Series
Manufacturer: Broadcom Limited
Beta
⌘K

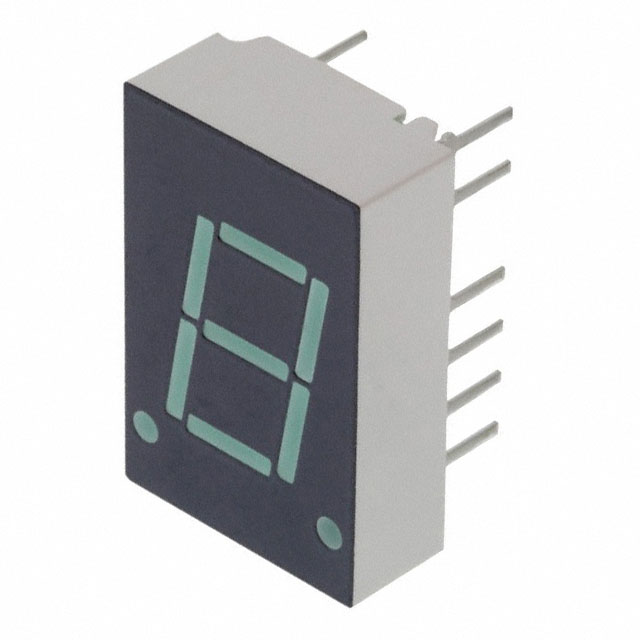

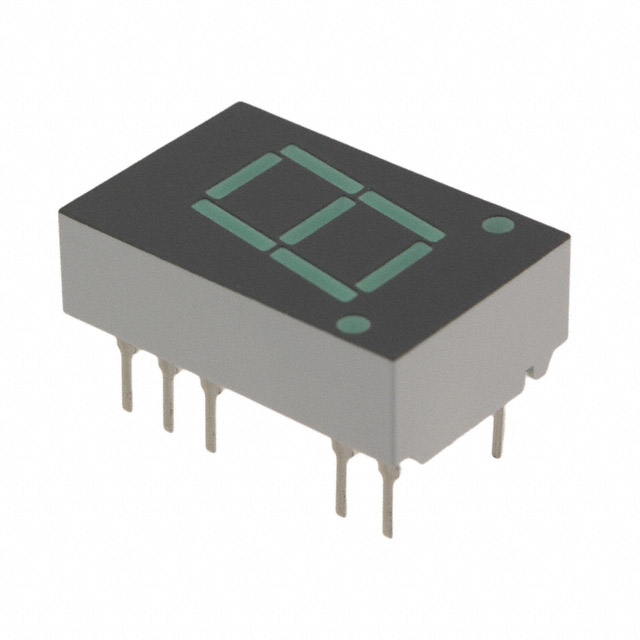

DISPLAY 7SEG 0.43" SGL GRN 14DIP
| Part | Digit/Alpha Size | Digit/Alpha Size | Wavelength - Peak | Power Dissipation (Max) [Max] | Number of Characters | Millicandela Rating | Current - Test | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Forward (Vf) (Typ) | Common Pin | Color | Display Type | Number of Characters | Package / Case | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 11 mm | 0.43 in | 566 nm | 105 mW | 1 | 4 mcd | 10 mA | 0.25 " | 6.35 mm | 0.5 " | 19.05 mm | 0.75 in | 12.7 mm | 2.1 V | Common Anode | Green | 7-Segment | ||||
 Broadcom Limited | 11 mm | 0.43 in | 566 nm | 105 mW | 4 mcd | 10 mA | 0.25 " | 6.35 mm | 0.5 " | 19.05 mm | 0.75 in | 12.7 mm | 2.1 V | Universal | Green | 7-Segment | +/-1 | 12 Leads 14-DIP | 0.3 in | 7.62 mm | |
 Broadcom Limited | 11 mm | 0.43 in | 566 nm | 105 mW | 1 | 4 mcd | 10 mA | 0.25 " | 6.35 mm | 0.5 " | 19.05 mm | 0.75 in | 12.7 mm | 2.1 V | Common Cathode | Green | 7-Segment |
