C90-3106F Series
Manufacturer: Harwin Inc.
Beta
⌘K
2 POS. CIRCULAR STRAIGHT PLUG CONN. PLUG CONTACT ROHS COMPLIANT: YES
| Part | Primary Material | Ingress Protection | Current Rating (Amps) | Contact Finish - Mating | Number of Positions | Shell Finish | Features | Insert Material | Shell Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Voltage Rating | Orientation | Backshell Material, Plating | Mounting Type | Connector Type | Contact Material | Shielding | Shell Size - Insert | Cable Opening | Cable Opening | Fastening Type | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

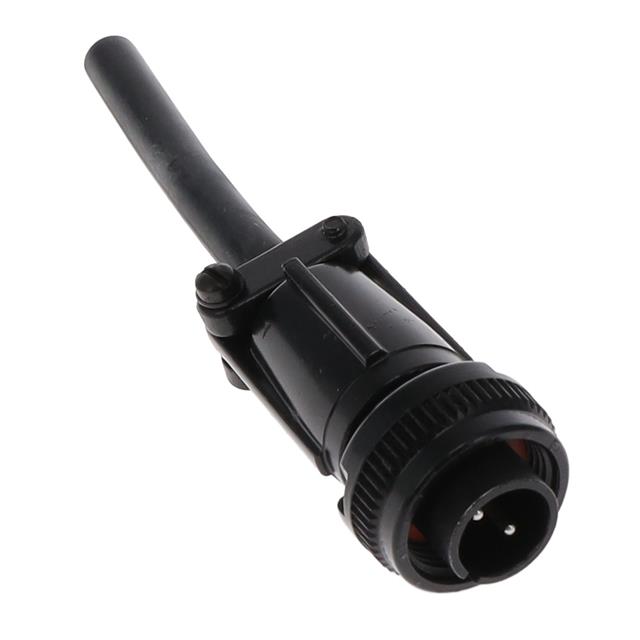

 Harwin Inc. | Metal | IP67 - Dust Tight Waterproof | 13 A | Silver | 2 | Black Zinc Cobalt Alloy | Backshell Cable Clamp Coupling Nut | Synthetic Rubber | Aluminum Alloy | -55 C | 125 °C | Black | 500 VAC 700 VDC | Keyed | Aluminum Alloy Black Zinc Cobalt | Free Hanging (In-Line) | Plug Male Pins | Copper Alloy | Unshielded | 12S-3 | 0.281 in | 7.14 mm | Threaded | Automotive Industrial |

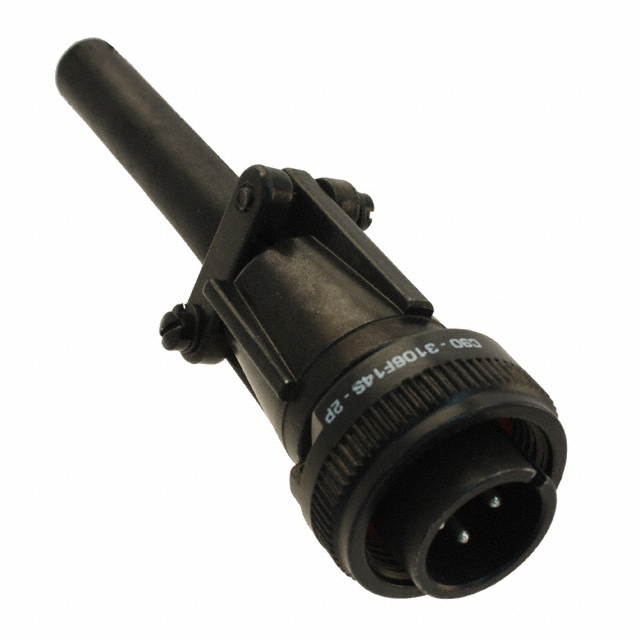

 Harwin Inc. | Metal | IP67 - Dust Tight Waterproof | 13 A | Silver | 4 | Black Zinc Cobalt Alloy | Backshell Cable Clamp Coupling Nut | Synthetic Rubber | Aluminum Alloy | -55 C | 125 °C | Black | 200 VAC 250 V | Keyed | Aluminum Alloy Black Zinc Cobalt | Free Hanging (In-Line) | Plug Male Pins | Copper Alloy | Unshielded | 14S-2 | 0.406 in | 10.3 mm | Threaded | Automotive Industrial |

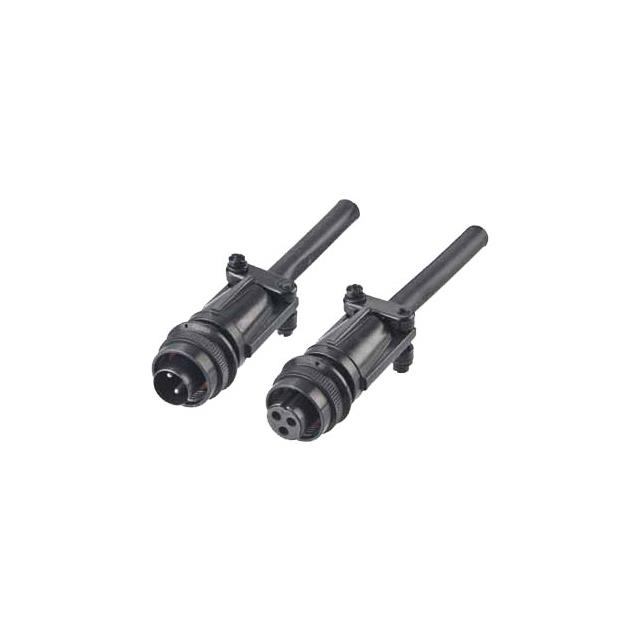

 Harwin Inc. | Metal | IP67 - Dust Tight Waterproof | 13 A | Silver | 2 | Black Zinc Cobalt Alloy | Backshell Cable Clamp Coupling Nut | Synthetic Rubber | Aluminum Alloy | -55 C | 125 °C | Black | 500 VAC 700 VDC | Keyed | Aluminum Alloy Black Zinc Cobalt | Free Hanging (In-Line) | Plug Female Sockets | Copper Alloy | Unshielded | 12S-3 | 0.281 in | 7.14 mm | Threaded | Automotive Industrial |

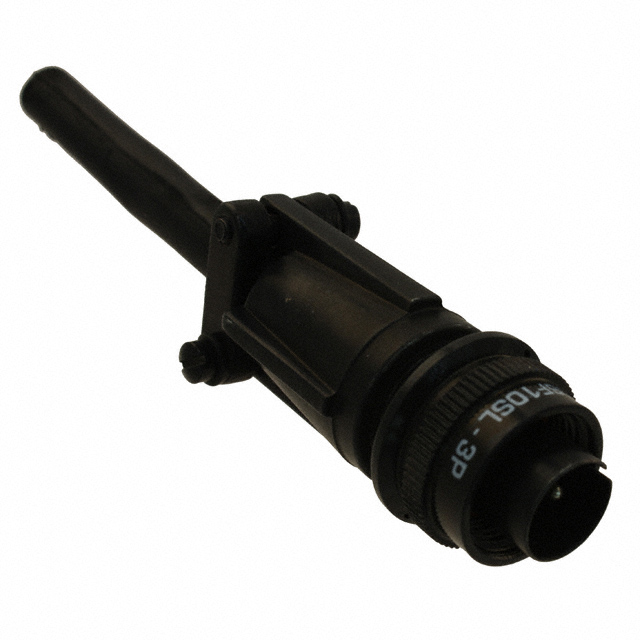

 Harwin Inc. | Metal | IP67 - Dust Tight Waterproof | 13 A | Silver | 3 | Black Zinc Cobalt Alloy | Backshell Cable Clamp Coupling Nut | Synthetic Rubber | Aluminum Alloy | -55 C | 125 °C | Black | 500 VAC 700 VDC | Keyed | Aluminum Alloy Black Zinc Cobalt | Free Hanging (In-Line) | Plug Male Pins | Copper Alloy | Unshielded | 10SL-3 | 0.281 in | 7.14 mm | Threaded | Automotive Industrial |
 Harwin Inc. | Metal | IP67 - Dust Tight Waterproof | 13 A | Silver | 6 | Black Zinc Cobalt Alloy | Backshell Cable Clamp Coupling Nut | Synthetic Rubber | Aluminum Alloy | -55 C | 125 °C | Black | 200 VAC 250 V | Keyed | Aluminum Alloy Black Zinc Cobalt | Free Hanging (In-Line) | Plug Female Sockets | Copper Alloy | Unshielded | 14S-6 | 0.406 in | 10.3 mm | Threaded | Automotive Industrial |

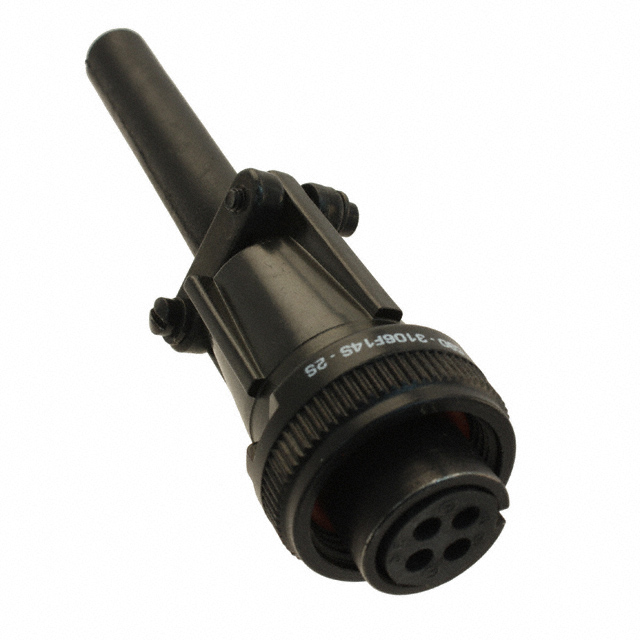

 Harwin Inc. | Metal | IP67 - Dust Tight Waterproof | 13 A | Silver | 4 | Black Zinc Cobalt Alloy | Backshell Cable Clamp Coupling Nut | Synthetic Rubber | Aluminum Alloy | -55 C | 125 °C | Black | 200 VAC 250 V | Keyed | Aluminum Alloy Black Zinc Cobalt | Free Hanging (In-Line) | Plug Female Sockets | Copper Alloy | Unshielded | 14S-2 | 0.406 in | 10.3 mm | Threaded | Automotive Industrial |

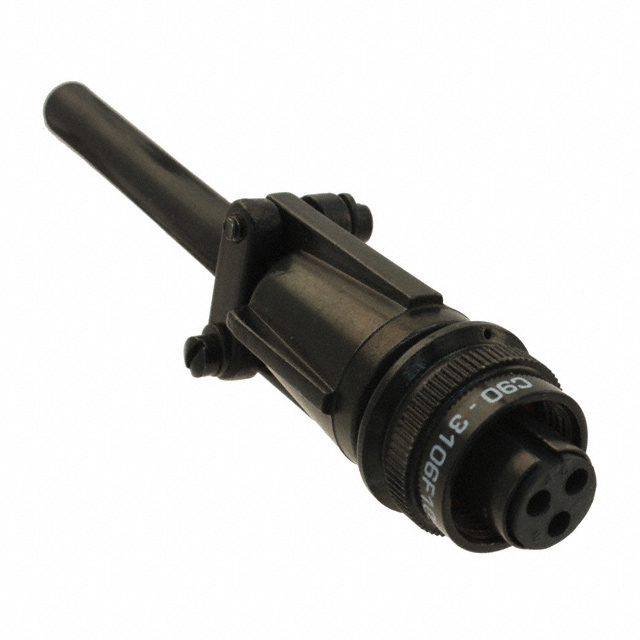

 Harwin Inc. | Metal | IP67 - Dust Tight Waterproof | 13 A | Silver | 3 | Black Zinc Cobalt Alloy | Backshell Cable Clamp Coupling Nut | Synthetic Rubber | Aluminum Alloy | -55 C | 125 °C | Black | 500 VAC 700 VDC | Keyed | Aluminum Alloy Black Zinc Cobalt | Free Hanging (In-Line) | Plug Female Sockets | Copper Alloy | Unshielded | 10SL-3 | 0.281 in | 7.14 mm | Threaded | Automotive Industrial |

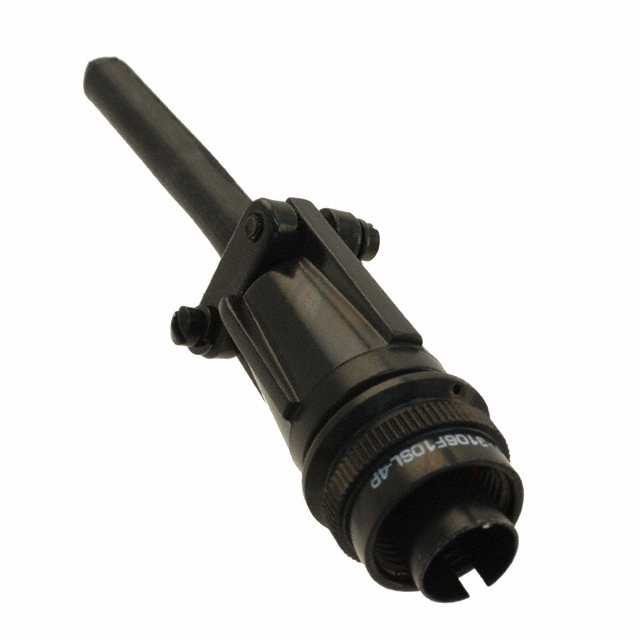

 Harwin Inc. | Metal | IP67 - Dust Tight Waterproof | 13 A | Silver | 2 | Black Zinc Cobalt Alloy | Backshell Cable Clamp Coupling Nut | Synthetic Rubber | Aluminum Alloy | -55 C | 125 °C | Black | 500 VAC 700 VDC | Keyed | Aluminum Alloy Black Zinc Cobalt | Free Hanging (In-Line) | Plug Male Pins | Copper Alloy | Unshielded | 10SL-4 | 0.281 in | 7.14 mm | Threaded | Automotive Industrial |

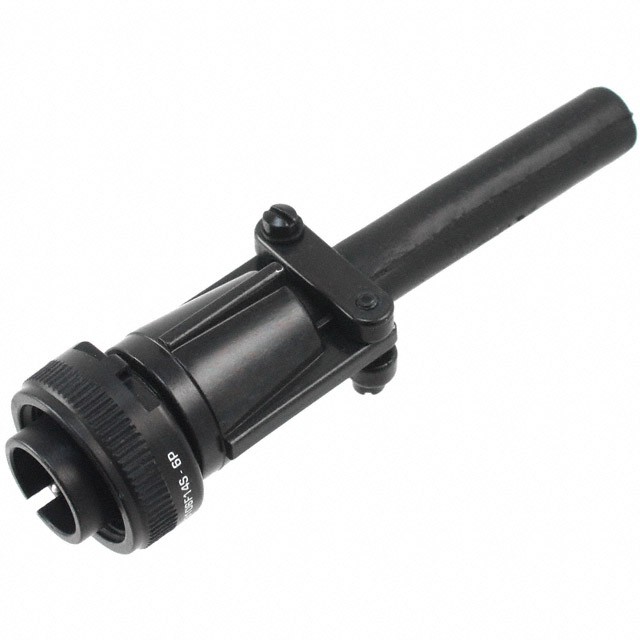

 Harwin Inc. | Metal | IP67 - Dust Tight Waterproof | 13 A | Silver | 6 | Black Zinc Cobalt Alloy | Backshell Cable Clamp Coupling Nut | Synthetic Rubber | Aluminum Alloy | -55 C | 125 °C | Black | 200 VAC 250 V | Keyed | Aluminum Alloy Black Zinc Cobalt | Free Hanging (In-Line) | Plug Male Pins | Copper Alloy | Unshielded | 14S-6 | 0.406 in | 10.3 mm | Threaded | Automotive Industrial |
