890-80 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN HEADER VERT 27POS 2.54MM

...

Part	Insulation Color	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Fastening Type	Contact Length - Mating	Contact Length - Mating [x]	Material Flammability Rating	Current Rating (Amps)	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Shape	Number of Positions	Shrouding	Insulation Material	Number of Rows	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Termination	Contact Finish - Post	Contact Type	Contact Material	Voltage Rating	Contact Length - Post	Contact Length - Post	Number of Positions [custom]	Contact Length - Mating	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]

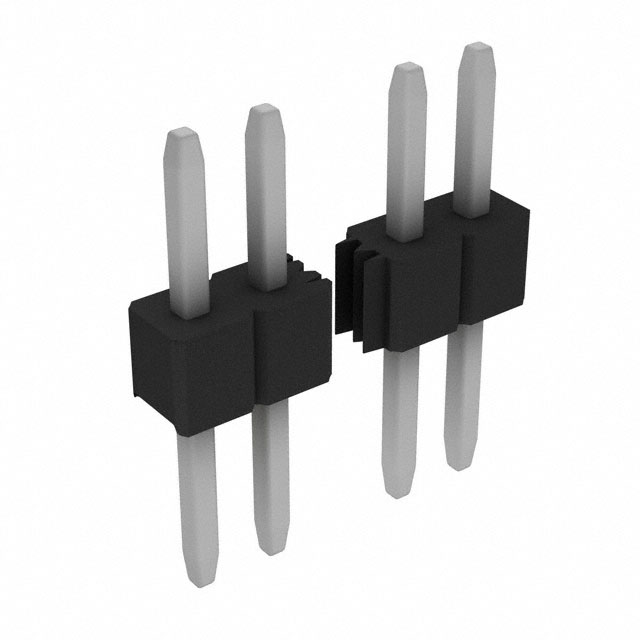

Preci-Dip 890-80-027-10-002101	Black	Header	-55 C	125 °C	Through Hole	Push-Pull	7 mm	0.276 in	UL94 V-0	3 A	0.1 in	2.54 mm	All	Square	27	Unshrouded	Glass Filled Nylon Polyamide (PA)	1	0.1 "	2.54 mm	0.494 in	12.54 mm	Solder	Tin	Male Pin	Brass	150 VDC	0.118 in	3 mm

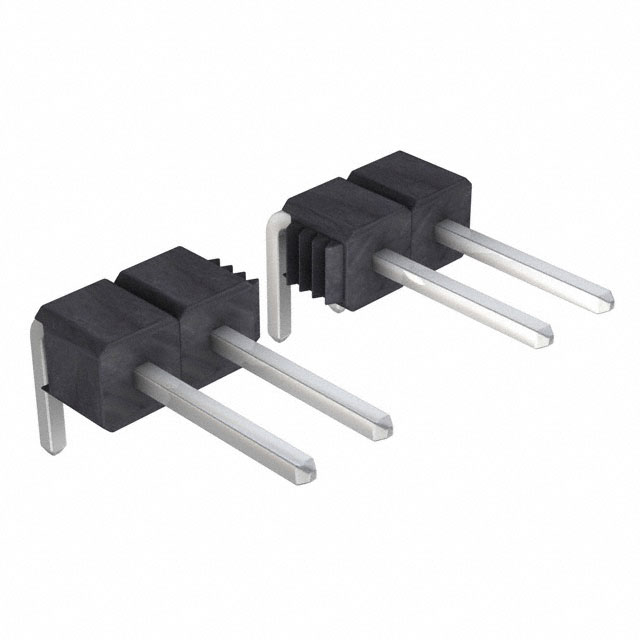

Preci-Dip 890-80-038-20-002101	Black	Header	-55 C	125 °C	Right Angle Through Hole	Push-Pull	7 mm	0.276 in	UL94 V-0	3 A	0.1 in	2.54 mm	All	Square	38	Unshrouded	Glass Filled Nylon Polyamide (PA)	1	0.1 "	2.54 mm			Solder	Tin	Male Pin	Brass	150 VDC	0.118 in	3 mm
Preci-Dip 890-80-034-10-002101	Black	Header	-55 C	125 °C	Through Hole	Push-Pull	7 mm	0.276 in	UL94 V-0	3 A	0.1 in	2.54 mm	All	Square		Unshrouded	Glass Filled Nylon Polyamide (PA)	1	0.1 "	2.54 mm	0.494 in	12.54 mm	Solder	Tin	Male Pin	Brass	150 VDC	0.118 in	3 mm	34
Preci-Dip 890-80-016-20-002101	Black	Header	-55 C	125 °C	Right Angle Through Hole	Push-Pull	7 mm	0.276 in	UL94 V-0	3 A	0.1 in	2.54 mm	All	Square	16	Unshrouded	Glass Filled Nylon Polyamide (PA)	1	0.1 "	2.54 mm			Solder	Tin	Male Pin	Brass	150 VDC	0.118 in	3 mm
Preci-Dip 890-80-028-10-002101	Black	Header	-55 C	125 °C	Through Hole	Push-Pull	7 mm	0.276 in	UL94 V-0	3 A	0.1 in	2.54 mm	All	Square	28	Unshrouded	Glass Filled Nylon Polyamide (PA)	1	0.1 "	2.54 mm	0.494 in	12.54 mm	Solder	Tin	Male Pin	Brass	150 VDC	0.118 in	3 mm
Preci-Dip 890-80-022-10-001101	Black	Header	-55 C	125 °C	Through Hole	Push-Pull	6 mm		UL94 V-0	3 A	0.1 in	2.54 mm	All	Square	22	Unshrouded	Glass Filled Nylon Polyamide (PA)	1	0.1 "	2.54 mm	11.64 mm		Solder	Tin	Male Pin	Brass	150 VDC				0.236 in	0.458 "	0.122 in	3.1 mm
Preci-Dip 890-80-034-20-001101	Black	Header	-55 C	125 °C	Right Angle Through Hole	Push-Pull	6 mm		UL94 V-0	3 A	0.1 in	2.54 mm	All	Square		Unshrouded	Glass Filled Nylon Polyamide (PA)	1	0.1 "	2.54 mm			Solder	Tin	Male Pin	Brass	150 VDC	0.118 in	3 mm	34	0.236 in
Preci-Dip 890-80-038-10-003101	Black	Header	-55 C	125 °C	Through Hole	Push-Pull	8.51 mm		UL94 V-0	3 A	0.1 in	2.54 mm	All	Square	38	Unshrouded	Glass Filled Nylon Polyamide (PA)	1	0.1 "	2.54 mm	14.04 mm		Solder	Tin	Male Pin	Brass	150 VDC	0.118 in	3 mm		0.335 in	0.553 in
Preci-Dip 890-80-027-20-002101	Black	Header	-55 C	125 °C	Right Angle Through Hole	Push-Pull	7 mm	0.276 in	UL94 V-0	3 A	0.1 in	2.54 mm	All	Square	27	Unshrouded	Glass Filled Nylon Polyamide (PA)	1	0.1 "	2.54 mm			Solder	Tin	Male Pin	Brass	150 VDC	0.118 in	3 mm
Preci-Dip 890-80-023-10-001101	Black	Header	-55 C	125 °C	Through Hole	Push-Pull	6 mm		UL94 V-0	3 A	0.1 in	2.54 mm	All	Square	23	Unshrouded	Glass Filled Nylon Polyamide (PA)	1	0.1 "	2.54 mm	11.64 mm		Solder	Tin	Male Pin	Brass	150 VDC				0.236 in	0.458 "	0.122 in	3.1 mm
