231 Series

Catalog

ACCESSORY, 231 SERIES CAGE CLAMP CONNECTORS, PUSHBUTTON FOR FEMALE AND MALE CONNECTORS

Part	Type	For Use With/Related Products	Contact Material	Material Flammability Rating	Insulation Height	Insulation Height	Wire Strip Length [Min]	Wire Strip Length [Max]	Voltage - IEC	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Mounting Type	Positions Per Level	Contact Mating Finish	Current - IEC	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Number of Levels	Plug Wire Entry	Termination Style	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
WAGO Corporation 231-131	Push-Button	Terminal Blocks
WAGO Corporation 231-306/026-000	Plug Female Sockets		Copper Alloy	UL94 V-0	14.3 mm	0.563 in	8 mm	9 mm	630 V	28 AWG	12 AWG	Free Hanging (In-Line)	6	Tin	16 A	2.5 mm²	0.08 mm²	1	180 °	Screwless - Spring Cage Tension Clamp	5.08 mm	0.2 in	-60 °C	85 °C	6
WAGO Corporation 231-303/026-000	Plug Female Sockets		Copper Alloy	UL94 V-0	14.3 mm	0.563 in	8 mm	9 mm	630 V	28 AWG	12 AWG	Free Hanging (In-Line)	3	Tin	16 A	2.5 mm²	0.08 mm²	1	180 °	Screwless - Spring Cage Tension Clamp	5.08 mm	0.2 in	-60 °C	85 °C

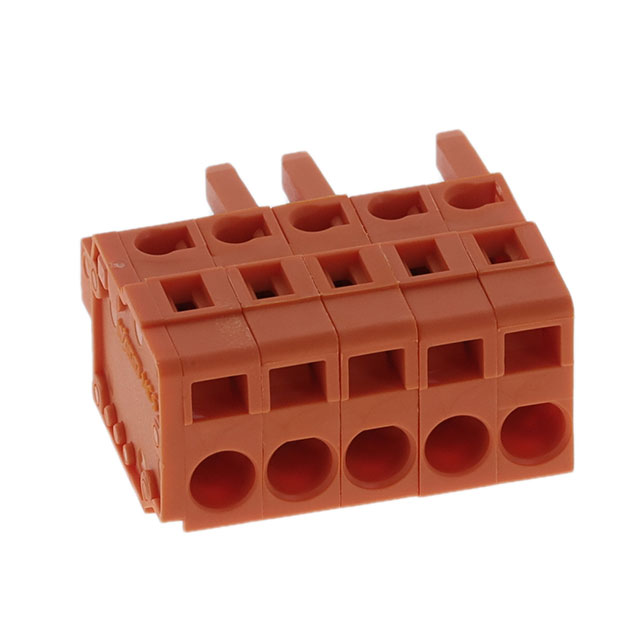

WAGO Corporation 231-305/026-000	Plug Female Sockets		Copper Alloy	UL94 V-0	14.3 mm	0.563 in	8 mm	9 mm	630 V	28 AWG	12 AWG	Free Hanging (In-Line)	5	Tin	16 A	2.5 mm²	0.08 mm²	1	180 °	Screwless - Spring Cage Tension Clamp	5.08 mm	0.2 in	-60 °C	85 °C	5	2.5 mm˛	0.08 mm˛

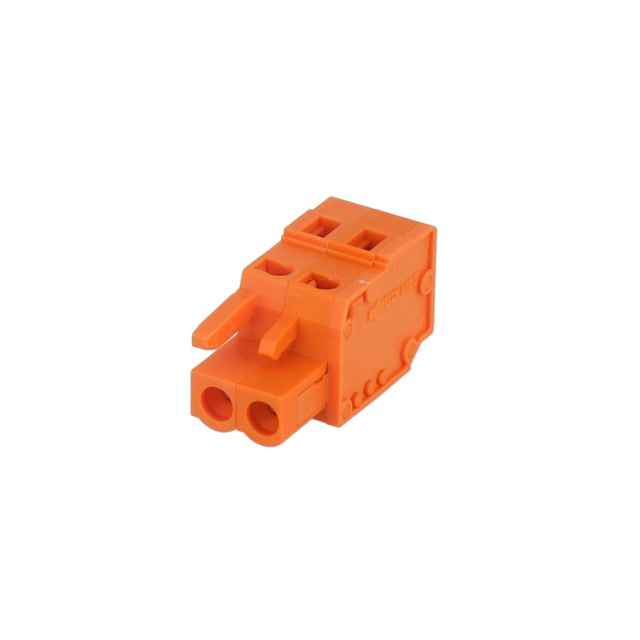

WAGO Corporation 231-302/026-000	Plug Female Sockets		Copper Alloy	UL94 V-0	14.3 mm	0.563 in	8 mm	9 mm	630 V	28 AWG	12 AWG	Free Hanging (In-Line)	2	Tin	16 A	2.5 mm²	0.08 mm²	1	180 °	Screwless - Spring Cage Tension Clamp	5.08 mm	0.2 in	-60 °C	85 °C	2

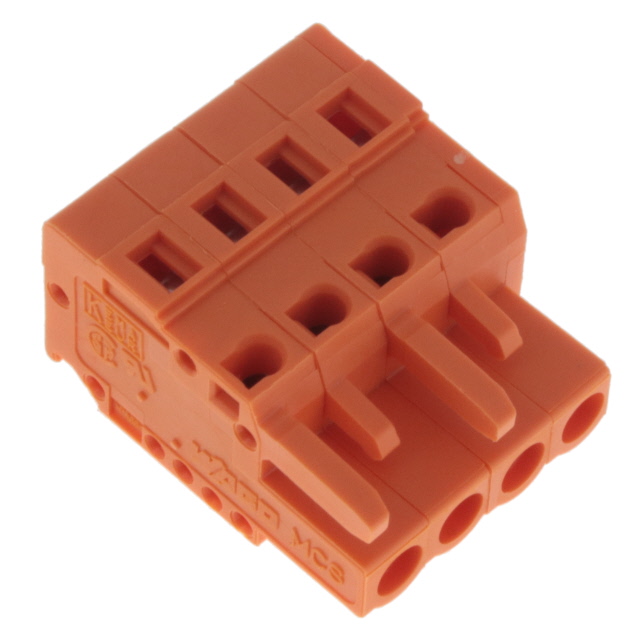

WAGO Corporation 231-304/026-000	Plug Female Sockets		Copper Alloy	UL94 V-0	14.3 mm	0.563 in	8 mm	9 mm	630 V	28 AWG	12 AWG	Free Hanging (In-Line)	4	Tin	16 A	2.5 mm²	0.08 mm²	1	180 °	Screwless - Spring Cage Tension Clamp	5.08 mm	0.2 in	-60 °C	85 °C	4
