CU Series

Catalog

ENCLOSURES, BOXES, & CASES SNAP UTILITY BOX BLACK (3.2 X 3.2 X 0.9 IN)

Part	Color	Thickness	Thickness	Height	Height	Design	Features	Container Type	Material Flammability Rating	Material	Area (L x W)	Area (L x W)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Height [z]	Area (L x W)	Weight [custom]	Weight [custom]	Size / Dimension [y]	Weight [custom]	Weight [custom]
BUD INDUSTRIES CU-18430-B	Black	2.2 mm	0.087 in	23.5 mm	0.925 in	Cover Included	Cable Management Mounting Flange PCB Supports Wall Mount	Box Potting	UL94 HB	ABS Plastic	10.1 in²	65 cm˛	80.1 mm	3.213 in	81.6 mm	3.154 in
BUD INDUSTRIES CU-247	Natural	2.39 mm	0.094 in			Cover Included		Box		Aluminum Metal		225 cm²	119.46 mm	7.39 in	187.71 mm	4.703 "	2.218 in	56.34 mm	34.8 in²

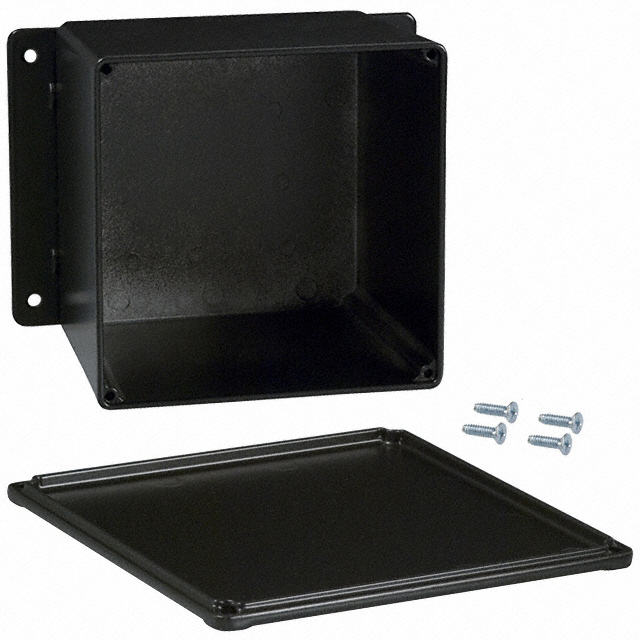

BUD INDUSTRIES CU-4475-B	Black	2.39 mm	0.094 in			Cover Included		Box		Aluminum Metal	22.6 in²	146 cm²	120.65 mm	4.75 in	120.65 mm	4.75 "	3.75 in	95.25 mm		1.3 lbs	589.7 g
BUD INDUSTRIES CU-4472-B	Black	2.39 mm	0.094 in			Cover Included		Box		Aluminum Metal	15 in²	97 cm²	80.01 mm	4.75 in	120.65 mm	3.15 in	2.33 "	59.18 mm
BUD INDUSTRIES CU-5472	Natural	2.39 mm	0.094 in			Cover Included		Box		Aluminum Metal	15 in²	97 cm²	80.01 mm	4.75 in	120.65 mm	3.15 in	2.33 "	59.18 mm
BUD INDUSTRIES CU-1931-MB	Black					Cover Included	Mounting Flange PCB Supports	Box	UL94 V-0	ABS Plastic	6.55 in²	42.3 cm˛		3.12 in	79.25 mm	2.1 in	1.08 in	27.43 mm				53.34 mm
BUD INDUSTRIES CU-18422-B	Black	2.01 mm	0.079 in			Cover Included	Cable Management Mounting Flange PCB Supports Wall Mount	Box Potting	UL94 HB	ABS Plastic	3.99 in²	25.7 cm²	50.1 mm	2.024 in	51.4 mm	1.972 in	1.063 in	27 mm

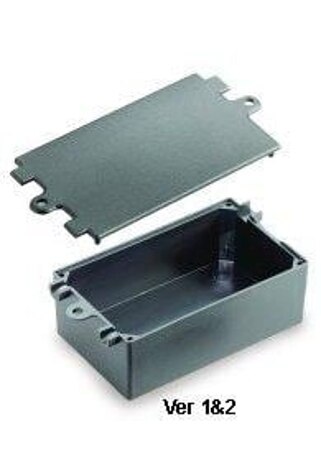

BUD INDUSTRIES CU-1954	Black			33.83 mm	1.332 in	Cover Included		Box	UL94 HB	ABS Plastic	7.25 in²	46.8 cm²	57 mm	3.23 in	82.04 mm	2.244 "
BUD INDUSTRIES CU-3245-MB	Black	2.54 mm	0.1 in	34.29 mm		Cover Included	Mounting Flange PCB Supports	Box	UL94 5VA	ABS Plastic	21.5 in²	139 cm²	97.74 mm	5.604 in	142.34 mm	3.848 in	1.35 in
BUD INDUSTRIES CU-1474	Black	1.78 mm	0.07 in	37.85 mm		Split Sides	PCB Supports	Box	UL94 V-0	ABS Plastic	9.3 in²	60 cm²	57.23 mm	4.128 "	104.85 mm	2.253 "	1.49 in						113.4 g	0.25 lbs
