396-082 Series
Manufacturer: EDAC Inc.
Beta
⌘K

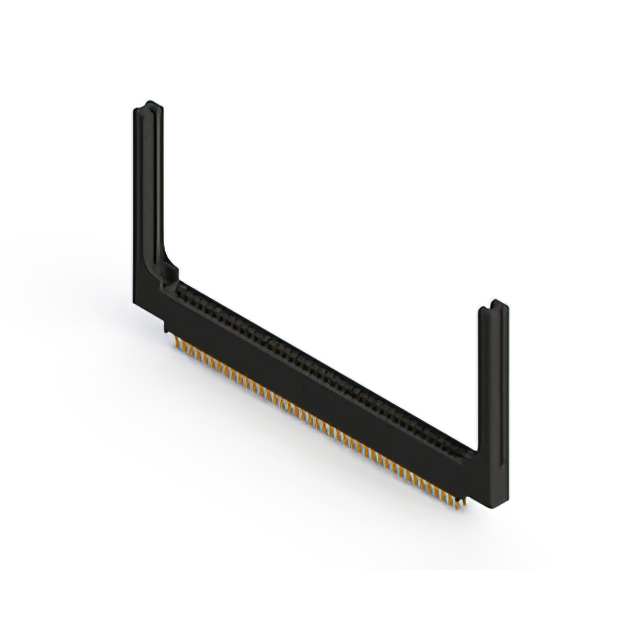

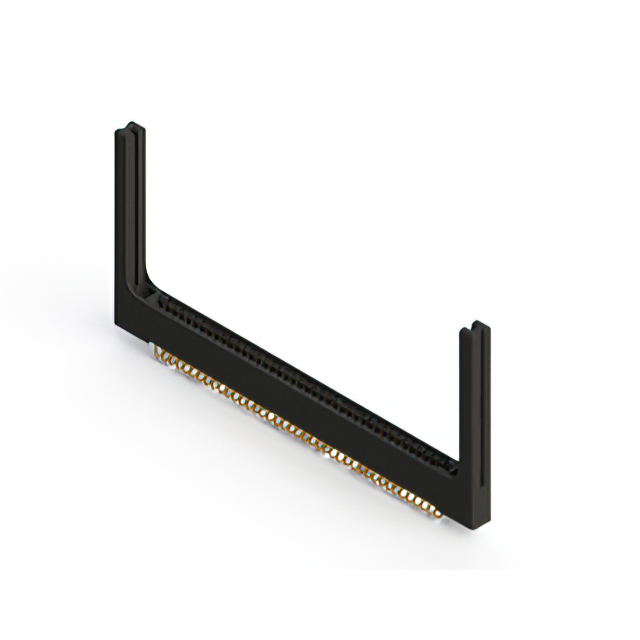

CONN EDGE DUAL FMALE 82POS 0.125
| Part | Material - Insulation | Termination Rows [custom] | Mounting Type | Termination | Number of Positions | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Features | Contact Type | Pitch | Pitch | Card Type | Number of Positions/Bay/Row | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Gender | Flange Feature | Color | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | Right Angle Through Hole | Solder Wire Wrap | 82 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Guides | Cantilever | 3.18 mm | 0.125 in | Non Specified - Dual Edge | 41 | 2 | 0.25 Ám | 10 Áin | Gold | Female | 4-40 Flush Mount Threaded Insert Top Opening | Black | -40 C | 105 ░C | Dual | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Through Hole | Solder | 82 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 3.18 mm | 0.125 in | Non Specified - Dual Edge | 41 | 2 | 0.25 Ám | 10 Áin | Gold | Female | 4-40 Threaded Insert Top Mount Opening | Black | -40 C | 105 ░C | Dual | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Right Angle Through Hole | Solder Wire Wrap | 82 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 3.18 mm | 0.125 in | Non Specified - Dual Edge | 41 | 2 | 0.25 Ám | 10 Áin | Gold | Female | Black | -40 C | 105 ░C | Dual | 0.156 " | 3.96 mm | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Board Edge Straddle Mount | Solder | 82 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Extender | Cantilever | 3.18 mm | 0.125 in | Non Specified - Dual Edge | 41 | 2 | 0.25 Ám | 10 Áin | Gold | Female | 4-40 Threaded Insert Top Mount Opening | Black | -40 C | 105 ░C | Dual | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Through Hole | Solder | 82 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 3.18 mm | 0.125 in | Non Specified - Dual Edge | 41 | 2 | 0.25 Ám | 10 Áin | Gold | Female | Flush Mount Side Opening Unthreaded | Black | -40 C | 105 ░C | Dual | 0.128 " | 3.25 mm | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Through Hole | Solder | 82 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Guides | Cantilever | 3.18 mm | 0.125 in | Non Specified - Dual Edge | 41 | 2 | 0.25 Ám | 10 Áin | Gold | Female | 4-40 Threaded Insert Top Mount Opening | Black | -40 C | 105 ░C | Dual | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Board Edge Straddle Mount | Solder | 82 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Extender | Cantilever | 3.18 mm | 0.125 in | Non Specified - Dual Edge | 41 | 2 | 0.25 Ám | 10 Áin | Gold | Female | Side Mount Opening Unthreaded | Black | -40 C | 105 ░C | Dual | 0.128 " | 3.25 mm |
 EDAC Inc. | Polyester Thermoplastic | 2 | Right Angle Through Hole | Solder Wire Wrap | 82 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 3.18 mm | 0.125 in | Non Specified - Dual Edge | 41 | 2 | 0.25 Ám | 10 Áin | Gold | Female | Floating Bobbin Top Mount Opening | Black | -40 C | 105 ░C | Dual | 0.116 " | 2.95 mm | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Through Hole | Wire Wrap | 82 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 3.18 mm | 0.125 in | Non Specified - Dual Edge | 41 | 2 | 0.25 Ám | 10 Áin | Gold | Female | Black | -40 C | 105 ░C | Dual | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | Board Edge Straddle Mount | Solder | 82 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Extender Card Guides | Cantilever | 3.18 mm | 0.125 in | Non Specified - Dual Edge | 41 | 2 | 0.25 Ám | 10 Áin | Gold | Female | 4-40 Threaded Insert Top Mount Opening | Black | -40 C | 105 ░C | Dual |
