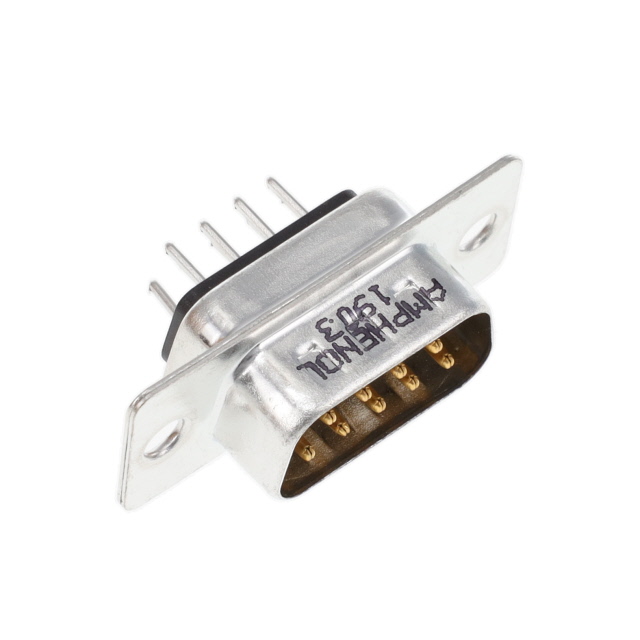

L777SDE09 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K
CONN D-SUB PLUG 9POS R/A SLDR
| Part | Dielectric Material | Color | Contact Form | Voltage Rating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Features | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Mounting Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Termination | Backset Spacing | Backset Spacing | Number of Positions | Material Flammability Rating | Contact Finish | Contact Type | Connector Style | Connector Type | Current Rating (Amps) | Number of Rows [custom] | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Black | Stamped | 250 V | Brass | -55 C | 125 °C | Board Lock Grounding Indents | 0.38 µm | 15 µin | Board Side (M3) | Right Angle Through Hole | 1 | DE E | Solder | 10.3 mm | 0.406 in | 9 | UL94 V-0 | Gold | Signal | D-Sub | Plug Male Pins | 3 A | 2 | |
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Black | Stamped | 250 V | Brass | -55 C | 125 °C | Board Lock Grounding Indents | 0.38 µm | 15 µin | 4-40 Mating Side Female Screwlock | Right Angle Through Hole | 1 | DE E | Solder | 8.08 mm | 0.318 " | 9 | UL94 V-0 | Gold | Signal | D-Sub | Plug Male Pins | 3 A | 2 | |
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Black | Stamped | 250 V | Brass | -55 C | 105 ░C | Grounding Indents | 0.38 µm | 15 µin | 4-40 Mating Side Female Screwlock | Free Hanging (In-Line) | 1 | DE E | 9 | UL94 V-0 | Gold | Signal | D-Sub | Plug Male Pins | 3 A | 2 | 20 AWG | |||
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Black | Stamped | 250 V | Brass | -55 C | 125 °C | Board Lock Grounding Indents | 0.38 µm | 15 µin | 4-40 Mating Side Female Screwlock | Right Angle Through Hole | 1 | DE E | Solder | 10.3 mm | 0.406 in | 9 | UL94 V-0 | Gold | Signal | D-Sub | Plug Male Pins | 3 A | 2 | |
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Black | Stamped | 250 V | Brass | -55 C | 125 °C | Board Lock Grounding Indents | 0.38 µm | 15 µin | Mating Side Female Screwlock (M3) | Right Angle Through Hole | 1 | DE E | Solder | 8.08 mm | 0.318 " | 9 | UL94 V-0 | Gold | Signal | D-Sub | Plug Male Pins | 3 A | 2 | |
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Black | Stamped | 250 V | Brass | -55 C | 125 °C | Grounding Indents | 0.38 µm | 15 µin | Housing/Shell (Unthreaded) | Through Hole | 1 | DE E | Solder | 9 | UL94 V-0 | Gold | Signal | D-Sub | Plug Male Pins | 3 A | 2 |
