337-014 Series
Manufacturer: EDAC Inc.
Beta
⌘K

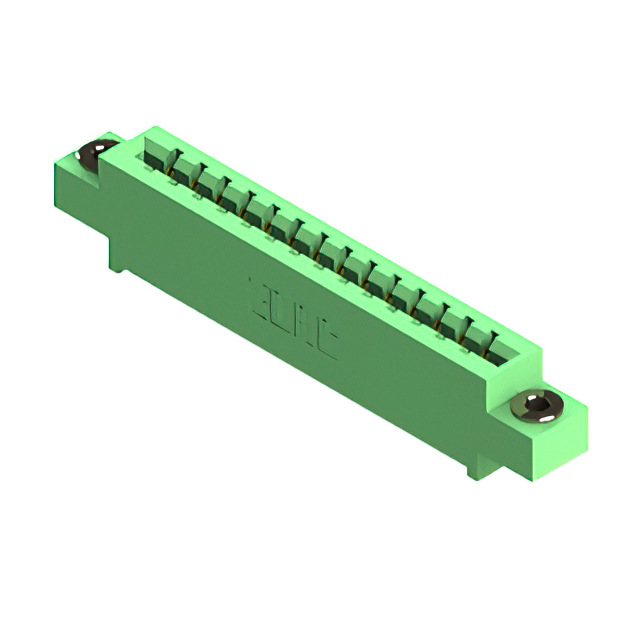

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 14 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
| Part | Termination Rows | Material - Insulation | Gender | Number of Positions | Card Type | Color | Pitch | Pitch | Number of Positions/Bay/Row | Termination | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Contact Material | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Read Out | Number of Rows | Mounting Type | Contact Finish | Flange Feature [diameter] | Flange Feature [diameter] | Termination Rows [custom] | Number of Rows [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | Female | 14 | Non Specified - Single Edge | Green | 3.96 mm | 0.156 in | 14 | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Single | 1 | Right Angle Through Hole | Gold | |||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Female | 14 | Non Specified - Single Edge | Green | 3.96 mm | 0.156 in | 14 | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Copper Alloy | Flush Mount Top Opening Unthreaded | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Single | 1 | Through Hole | Gold | 0.156 " | 3.96 mm | |||
 EDAC Inc. | Polyester Thermoplastic | Female | 14 | Non Specified - Dual Edge | Green | 3.96 mm | 0.156 in | 7 | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Copper Alloy | M3 Threaded Insert Top Mount Opening | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Dual | Right Angle Through Hole | Gold | 2 | 2 | |||||
 EDAC Inc. | Polyester Thermoplastic | Female | 14 | Non Specified - Dual Edge | Green | 3.96 mm | 0.156 in | 7 | Solder Eyelet(s) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Copper Alloy | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Dual | Board Edge Straddle Mount | Gold | 0.156 " | 3.96 mm | 2 | 2 | Card Extender | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Female | 14 | Non Specified - Single Edge | Green | 3.96 mm | 0.156 in | 14 | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Copper Alloy | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Single | 1 | Through Hole | Gold | ||||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Female | 14 | Non Specified - Single Edge | Green | 3.96 mm | 0.156 in | 14 | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Single | 1 | Through Hole | Gold | |||||
 EDAC Inc. | Polyester Thermoplastic | Female | 14 | Non Specified - Dual Edge | Green | 3.96 mm | 0.156 in | 7 | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Dual | Through Hole | Gold | 2 | 2 | Card Guides | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Female | 14 | Non Specified - Single Edge | Green | 3.96 mm | 0.156 in | 14 | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Single | 1 | Through Hole | Gold | |||||
 EDAC Inc. | Polyester Thermoplastic | Female | 14 | Non Specified - Dual Edge | Green | 3.96 mm | 0.156 in | 7 | Solder Eyelet(s) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Dual | Board Edge Straddle Mount | Gold | 2 | 2 | Card Extender Card Guides | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Female | 14 | Non Specified - Single Edge | Green | 3.96 mm | 0.156 in | 14 | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Copper Alloy | Flush Mount Top Opening Unthreaded | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Single | 1 | Through Hole | Gold | 0.156 " | 3.96 mm |
