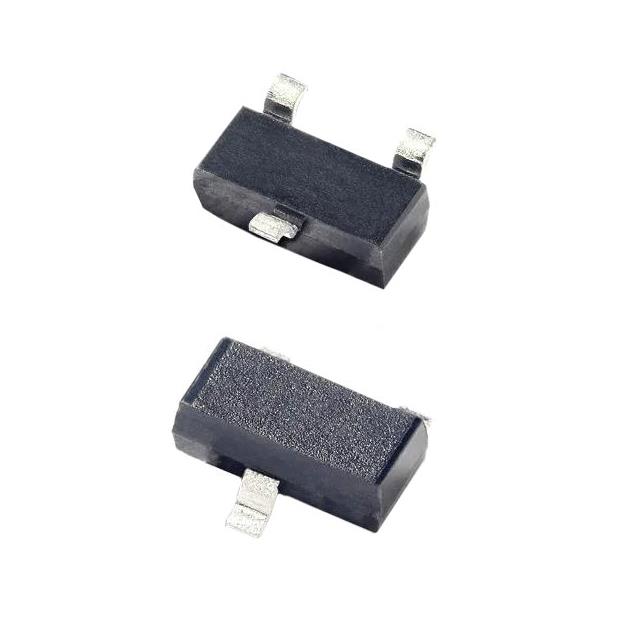

AQ24COME-02HTG Series

Catalog

24V 30KV SOT23-3L DIODE ARRAY

Part	Capacitance @ Frequency	Mounting Type	Voltage - Clamping (Max) @ Ipp [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Type	Bidirectional Channels	Power Line Protection	Qualification	Grade	Voltage - Breakdown (Min) [Min]	Current - Peak Pulse (10/1000µs)	Power - Peak Pulse	Voltage - Reverse Standoff (Typ)	Supplier Device Package	Applications
Littelfuse/Commercial Vehicle Products AQ24COME-02HTG	22 pF	Surface Mount	51 V	-40 °C	150 °C	SC-59 SOT-23-3 TO-236-3	Zener	2		AEC-Q101	Automotive	26 V	9 A	450 W	24 V	SOT-23-3	CAN

• ESD, IEC 61000-4-2, ±30kV contact/air

• ESD, ISO 10605, 330pF 330Ω, ±30kV contact/air

• EFT, IEC 61000-4-4, 40A (5/50ns)

• Maximum surge tolerance, IEC 61000- 4-5 2nd Edition, 9A (8/20μs)

• Halogen free, lead free and RoHS compliant

• Moisture Sensitivity Level (MSL-1)

• AEC-Q101 qualified and PPAP capable
