MT5000 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

HEATSHRINK 3/8" CLEAR

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Shrink Temperature	Features	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Type	Color	Length	Spool Size [x]	Spool Size [x]	Length	Length	Length [x]	Length [x]
TE Connectivity AMP Connectors MT5000-3/8-X-SP	-55 C	150 °C	Polyolefin (PO) Irradiated	1	2	90 °C	Abrasion Resistant Solvent Resistant Strain Resistant	0.025 in	0.64 mm	0.187 in	4.75 mm	0.375 in	9.53 mm	Tubing Flexible	Clear
TE Connectivity AMP Connectors MT5000-3/4-X-SP	-55 C	150 °C	Polyolefin (PO) Irradiated	1	2	90 °C	Abrasion Resistant Solvent Resistant Strain Resistant	0.03 in	0.76 mm	0.374 "	9.5 mm			Tubing Flexible	Clear

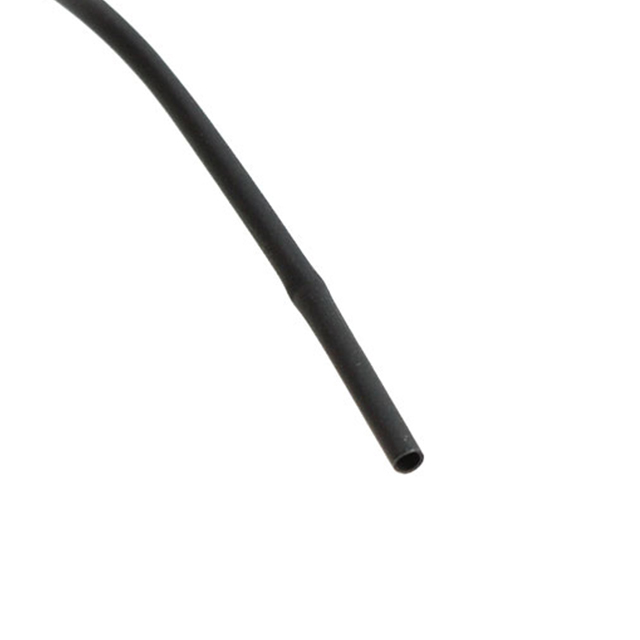

TE Connectivity AMP Connectors MT5000-1/2-0-SP	-55 C	150 °C	Polyolefin (PO) Irradiated	1	2	90 °C	Abrasion Resistant Solvent Resistant Strain Resistant	0.025 in	0.64 mm	0.25 in	6.35 mm	0.5 "	12.7 mm	Tubing Flexible	Black	Enter Number of Feet in Order Quantity
TE Connectivity AMP Connectors MT5000-1/8-0-SP	-55 C	150 °C	Polyolefin (PO) Irradiated	1	2	90 °C	Abrasion Resistant Solvent Resistant Strain Resistant	0.02 in	0.51 mm	0.062 in	1.57 mm	0.125 in	3.18 mm	Tubing Flexible	Black
TE Connectivity AMP Connectors MT5000-3/16-0-SP	-55 C	150 °C	Polyolefin (PO) Irradiated	1	2	90 °C	Abrasion Resistant Solvent Resistant Strain Resistant	0.02 in	0.51 mm	0.093 in	2.36 mm	0.187 "	4.75 mm	Tubing Flexible	Black	Enter Number of Feet in Order Quantity	381 m	1250 ft	381 m	1250 ft
TE Connectivity AMP Connectors MT5000-3/16-X-STK	-55 C	150 °C	Polyolefin (PO) Irradiated	1	2	90 °C	Abrasion Resistant Solvent Resistant Strain Resistant	0.02 in	0.51 mm	0.093 in	2.36 mm	0.187 "	4.75 mm	Tubing Flexible	Clear						4 ft	1.22 m
TE Connectivity AMP Connectors MT5000-1/8-9-SP	-55 C	150 °C	Polyolefin (PO) Irradiated	1	2	90 °C	Abrasion Resistant Solvent Resistant Strain Resistant	0.02 in	0.51 mm	0.062 in	1.57 mm	0.125 in	3.18 mm	Tubing Flexible	White
TE Connectivity AMP Connectors MT5000-NO.1-X-SP	-55 C	150 °C	Polyolefin (PO) Irradiated	1	2	90 °C	Abrasion Resistant Solvent Resistant Strain Resistant							Tubing Flexible	Clear
TE Connectivity AMP Connectors MT5000-3/8-6-SP	-55 C	150 °C	Polyolefin (PO) Irradiated	1	2	90 °C	Abrasion Resistant Solvent Resistant Strain Resistant	0.025 in	0.64 mm	0.187 in	4.75 mm	0.375 in	9.53 mm	Tubing Flexible	Blue
TE Connectivity AMP Connectors MT5000-3/8-0-SP	-55 C	150 °C	Polyolefin (PO) Irradiated	1	2	90 °C	Abrasion Resistant Solvent Resistant Strain Resistant	0.025 in	0.64 mm	0.187 in	4.75 mm	0.375 in	9.53 mm	Tubing Flexible	Black
