SA40600 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

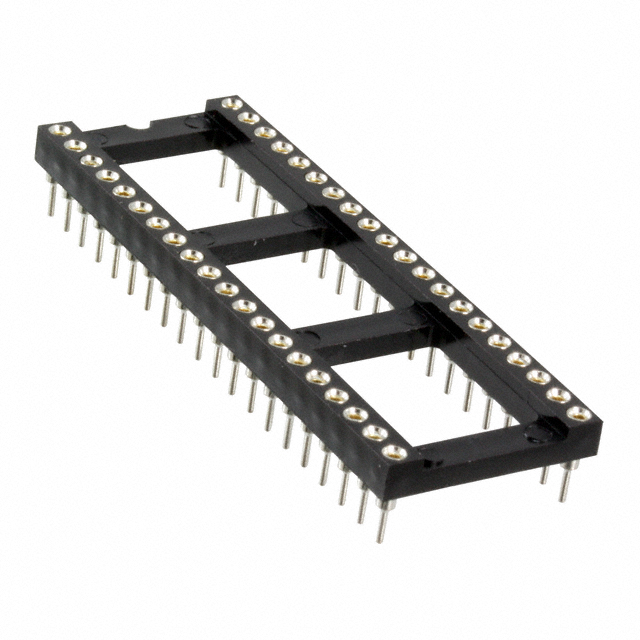

CONN IC DIP SOCKET 40POS GOLD
| Part | Current Rating (Amps) | Material Flammability Rating | Contact Resistance | Contact Finish - Mating | Contact Material - Post [custom] | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Pitch - Post | Pitch - Post | Number of Positions or Pins (Grid) | Mounting Type | Features | Contact Material - Mating | Housing Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Type [custom] | Type [custom] | Type | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 3 A | UL94 V-0 | 4 mOhm | Gold | Brass | Solder | -40 C | 105 ░C | 0.1 " | 2.54 mm | Tin | 0.1 in | 2.54 mm | 40 | Through Hole | Open Frame | Beryllium Copper | Glass Filled Polyester Thermoplastic | 200 µin | 5.08 µm | 15.24 mm | 0.6 in | DIP | Flash |
