IL-S-2 Series

Catalog

CONN HEADER VERT 2POS 2MM

Part	Mated Stacking Heights	Insulation Height	Insulation Height	Mounting Type	Voltage Rating	Fastening Type	Contact Finish - Post	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Termination	Style	Insulation Material	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Number of Rows	Contact Material	Number of Positions	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Connector Type	Contact Shape	Contact Length - Post	Contact Length - Post	Contact Type	Note	Pitch [x]	Pitch [x]	Contact Termination
JAE Electronics IL-S-2P-S2T2-EF	7.5 mm	0.217 in	5.51 mm	Through Hole	300 VAC 400 V	Detent Lock	Tin	UL94 V-0	0.079 "	2 mm	All	Kinked Pin Solder	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	Shrouded - 4 Wall	85 °C	-40 C	Brown	1	Brass	2	0.126 in	3.2 mm	3 A	Header	Square	0.138 in	3.5 mm	Male Pin

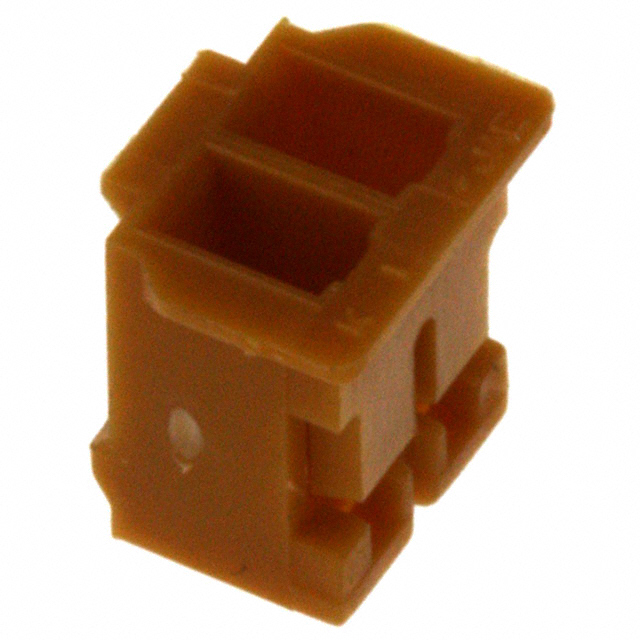

JAE Electronics IL-S-2S-S2C2				Free Hanging (In-Line)										Nylon 6/6 Polyamide (PA66)		85 °C	-40 C		1		2				Receptacle				Female Socket	Contacts Not Included	0.079 in	2 mm	Crimp
