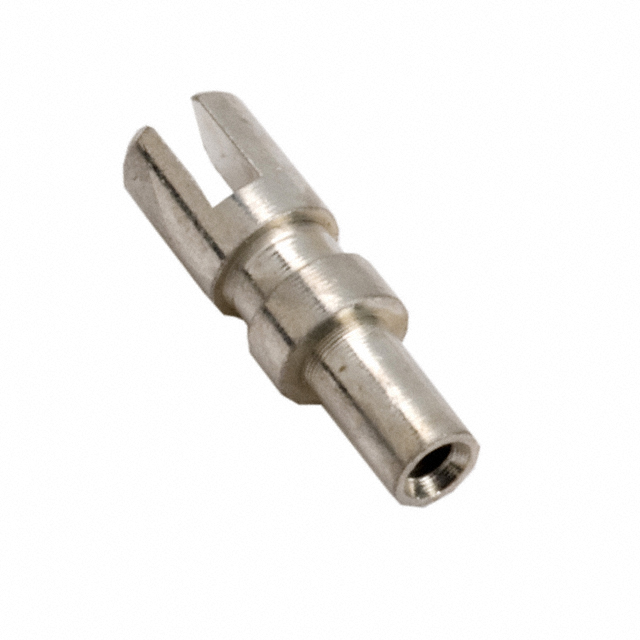

H9023 Series
Manufacturer: Harwin Inc.
Beta
⌘K
TERMINAL, TURRET, 1.38MM ROHS COMPLIANT: YES
| Part | Number of Turrets | Termination | Mounting Type | Board Thickness | Board Thickness | Length - Overall [x] | Length - Overall [x] | Length - Above Board [x] | Length - Above Board [x] | Insulation | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish | Mounting Hole Diameter [Max] [diameter] | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Max] [diameter] | Contact Material | Staking Side ID [diameter] | Staking Side ID [diameter] | Terminal Type | Length - Below Flange [x] | Length - Below Flange [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Single | Swage | Through Hole | 0.063 in | 1.6 mm | 0.238 in | 6.04 mm | 0.156 in | 3.96 mm | Non-Insulated | 0.072 " | 1.83 mm | Tin | 1.37 mm | 0.05 " | 1.27 mm | 0.054 " | Brass Alloy | 0.039 in | 1 mm | Fork Hollow Single End | 2.08 mm | 0.082 " |
