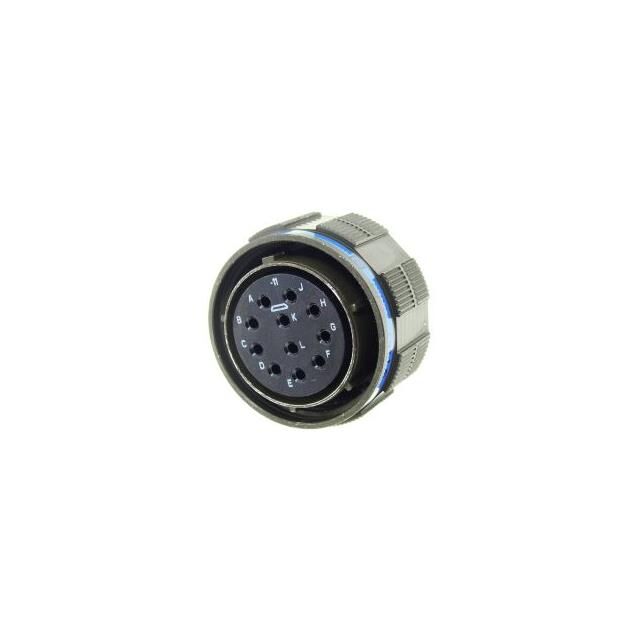

D38999/24FJ Series
Manufacturer: Conesys
Beta
⌘K
AE3 8C 8#8 TWINAX PIN RECP
| Part | Orientation | Ingress Protection | Shell Material | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Note | Shielding | Contact Shape | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Contact Size | Shell Size, MIL | Shell Finish | Connector Type | Grade | Contact Type | Housing Color | Mounting Type | Type | Qualification | Number of Positions | Mounting Feature | Contact Size | Termination | Contact Finish - Mating | Applications | Color | Material Flammability Rating | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insert Material | Primary Material | Voltage Rating | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Conesys | N (Normal) | Environment Resistant | Aluminum | -65 ░C | 200 °C | Threaded | Contacts Not Included | Shielded | Circular | 8 | 25 | 8 Twinax | J | Electroless Nickel | Receptacle Housing | Military | Crimp | Silver | Panel Mount | For Male Pins | MIL-DTL-38999 Series III | 8 | Bulkhead - Front Side Nut | |||||||||||||
Conesys | A | Environment Resistant | Aluminum | -65 ░C | 200 °C | Threaded | Contacts Not Included | Shielded | Circular | 43 | 25 | J | Electroless Nickel | Receptacle Housing | Military | Crimp | Silver | Panel Mount | For Female Sockets | MIL-DTL-38999 Series III | 43 | Bulkhead - Front Side Nut | 16 20 | |||||||||||||
Conesys | A | Environment Resistant | Aluminum | -65 ░C | 200 °C | Threaded | Contacts Not Included | Shielded | Circular | 37 | 25 | J | Electroless Nickel | Receptacle Housing | Military | Crimp | Silver | Panel Mount | For Male Pins | MIL-DTL-38999 Series III | 37 | Bulkhead - Front Side Nut | 16 | |||||||||||||
 Conesys | N (Normal) | Environment Resistant Waterproof | Aluminum Aluminum Alloy | -65 ░C | 125 °C 200 °C | Threaded | Shielded | 8 | 25 | J | Electroless Nickel | Receptacle Male Pins | Military | Panel Mount | MIL-DTL-38999 Series III | 8 | Bulkhead - Front Side Nut | Crimp | Gold | Aerospace Aviation Marine Military | Silver | UL94 V-0 | Copper Alloy | 50 µin | 1.27 µm | Thermoplastic | Metal | 500 VAC | ||||||||
Conesys | N (Normal) | Environment Resistant | Aluminum Alloy | -65 ░C | 200 °C | Threaded | 61 | 25 | Electroless Nickel | Receptacle Female Sockets | Panel Mount | 61 | Bulkhead - Front Side Nut | Crimp | Gold | 50 µin | 1.27 µm | Metal | ||||||||||||||||||
Conesys | A | Environment Resistant | Aluminum Alloy | -65 ░C | 200 °C | Threaded | Electroless Nickel | Receptacle Male Pins | Panel Mount | 56 | Bulkhead - Front Side Nut | Crimp | Gold | 50 µin | 1.27 µm | Metal | 25-4 |
