PP-H Series

Catalog

DIN RAIL TERMINAL BLOCKS PP-H 6/ 9

Part	Wire Strip Length [x]	Material Flammability Rating	Insulation Height	Insulation Height	Housing Material	Number of Levels	Features	Positions Per Level	Type	Voltage - IEC	Plug Wire Entry	Termination Style	Number of Positions	Current - IEC	Color	Current - UL	Mounting Type	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Voltage - UL

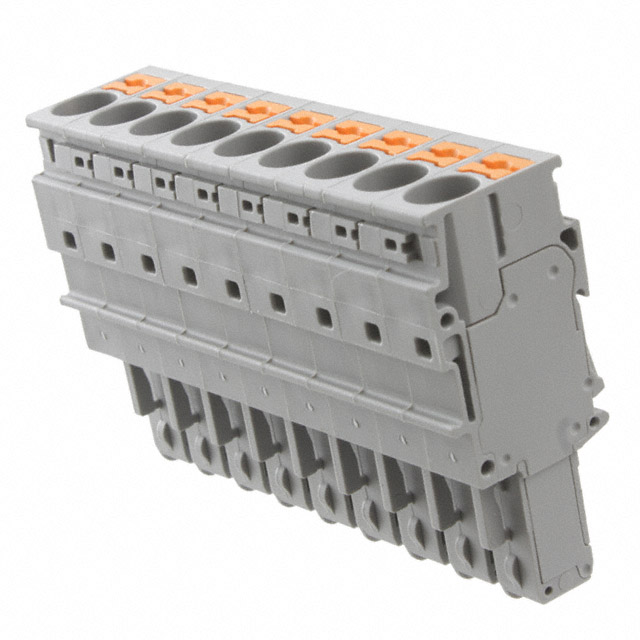

Phoenix Contact 3061648	12 mm	UL94 V-0	1.941 in	49.3 mm	Polyamide (PA) Nylon	1	Interlocking (Side)	9	Plug Female Sockets	1 kV	180 °	Screwless - Push-In Spring	9	41 A	Gray	40 A	Free Hanging (In-Line)	10 mm²	0.5 mm²	20 AWG	8 AWG
Phoenix Contact 3061745						1	Interlocking (Side)	1	Plug Female Sockets	1 kV	180 °	Screwless - Push-In Spring	1	41 A	Green Yellow	40 A	Free Hanging (In-Line)	10 mm²	0.5 mm²	20 AWG	8 AWG
Phoenix Contact 3209950						1		10	Plug Female Sockets	500 V	180 °	Screwless - Push-In Spring	10	24 A	Gray	20 A	Free Hanging (In-Line)	4 mm²	0.14 mm²	26 AWG	12 AWG	300 V
Phoenix Contact 3212594						1		10	Plug Female Sockets	500 V	180 °	Screwless - Push-In Spring	10	17.5 A	Gray	5 A	Free Hanging (In-Line)	1.5 mm²	0.14 mm²	26 AWG	14 AWG
Phoenix Contact 3061635						1	Interlocking (Side)	8	Plug Female Sockets	1 kV	180 °	Screwless - Push-In Spring	8	41 A	Gray	40 A	Free Hanging (In-Line)	10 mm²	0.5 mm²	20 AWG	8 AWG
Phoenix Contact 3061651	12 mm	UL94 V-0	1.941 in	49.3 mm	Polyamide (PA) Nylon	1	Interlocking (Side)	10	Plug Female Sockets	1 kV	180 °	Screwless - Push-In Spring	10	41 A	Gray	40 A	Free Hanging (In-Line)	10 mm²	0.5 mm²	20 AWG	8 AWG
Phoenix Contact 3212691						1	Interlocking (Side)	1	Plug Female Sockets	500 V	180 °	Screwless - Push-In Spring	1	17.5 A	Blue	5 A	Free Hanging (In-Line)	1.5 mm²	0.14 mm²	26 AWG	14 AWG

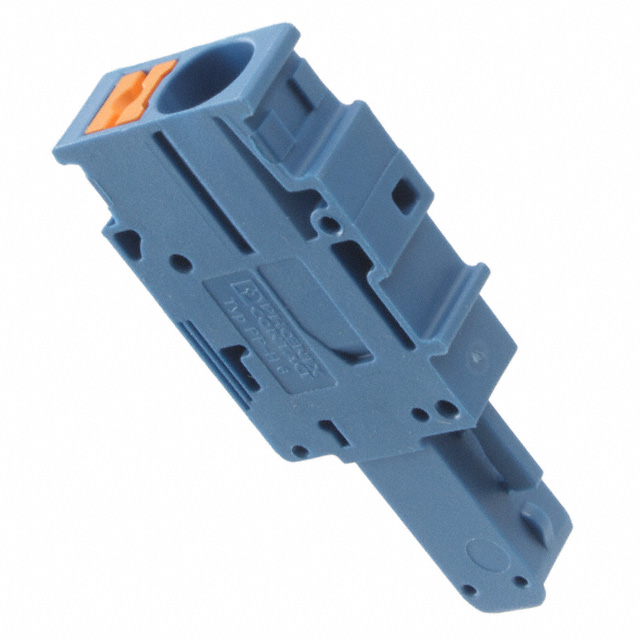

Phoenix Contact 3061554	12 mm	UL94 V-0	1.941 in	49.3 mm	Polyamide (PA) Nylon	1	Interlocking (Side)	1	Plug Female Sockets	1 kV	180 °	Screwless - Push-In Spring	1	41 A	Blue	40 A	Free Hanging (In-Line)	10 mm²	0.5 mm²	20 AWG	8 AWG
Phoenix Contact 3061732						1	Interlocking (Side)	1	Plug Female Sockets	1 kV	180 °	Screwless - Push-In Spring	1	41 A	Blue	40 A	Free Hanging (In-Line)	10 mm²	0.5 mm²	20 AWG	8 AWG
Phoenix Contact 3061567	12 mm	UL94 V-0	1.941 in	49.3 mm	Polyamide (PA) Nylon	1	Interlocking (Side)	1	Plug Female Sockets	1 kV	180 °	Screwless - Push-In Spring	1	41 A	Green Yellow	40 A	Free Hanging (In-Line)	10 mm²	0.5 mm²	20 AWG	8 AWG
