Q2-Z-1/4 Series

Manufacturer: Qualtek

Catalog

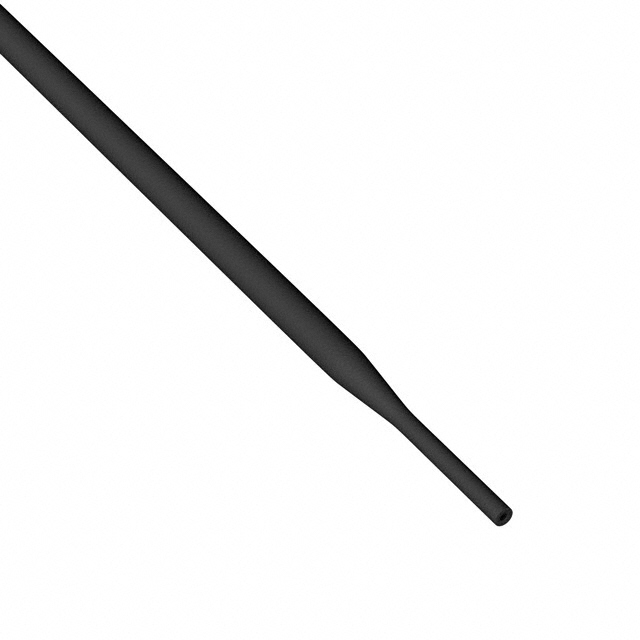

HEATSHRINK 1/4"-48" BLACK 1=1PC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shelf Life	Material	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Length [x]	Length [x]	Features	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Type	Recovered Wall Thickness	Recovered Wall Thickness	Shrink Temperature	Color	Length	Length	Length
Qualtek Q2-Z-1/4-01-QB48IN-25	-55 C	125 °C	144 Months	Polyolefin (PO)	0.25 "	6.35 mm	1	2	4 ft	1.22 m	Flame Retardant	40 °C	14 °F	-50 °F	40 °C	0.125 in	3.18 mm	Tubing Flexible	0.022 in	0.56 mm	70 °C	Black
Qualtek Q2-Z-1/4-01-QB6IN-20	-55 C	125 °C	144 Months	Polyolefin (PO)	0.25 "	6.35 mm	1	2			Flame Retardant	40 °C	14 °F	-50 °F	40 °C	0.125 in	3.18 mm	Tubing Flexible	0.022 in	0.56 mm	70 °C	Black	152.4 mm	0.5 '	6 "
Qualtek Q2-Z-1/4-01-MS100FT	-55 C	125 °C	144 Months	Polyolefin (PO)	0.25 "	6.35 mm	1	2	100 ft	30.5 m	Flame Retardant	40 °C	14 °F	-50 °F	40 °C	0.125 in	3.18 mm	Tubing Flexible	0.022 in	0.56 mm	70 °C	Black
