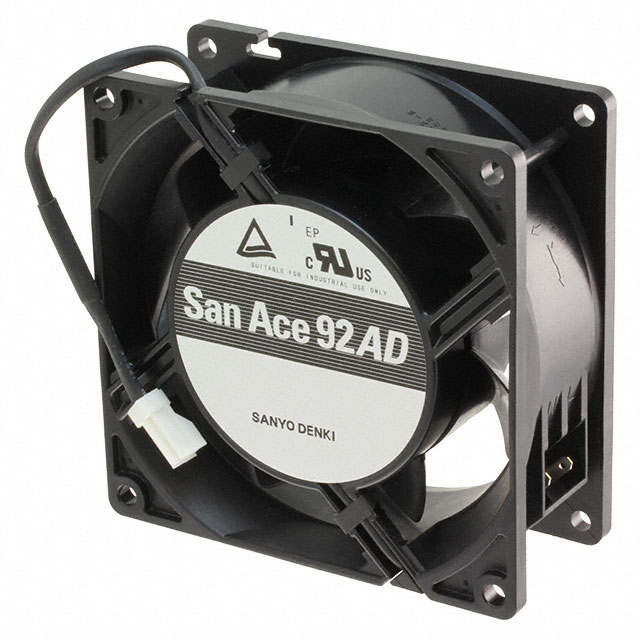

9AD0901 Series

Catalog

FAN 92X38MM 90/264VAC LSS

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Air Flow	Air Flow	Material - Blade	Current Rating (Amps)	Bearing Type	Termination	RPM	Features	Operating Temperature [Min]	Operating Temperature [Max]	Noise	Static Pressure	Static Pressure	Fan Type	Weight	Weight	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Approval Agency	Width [y]	Voltage - Rated [Max]	Voltage - Rated [Min]
Sanyo Denki America Inc. 9AD0901M1H	90 VAC	240 VAC	Plastic	1.17 mł/min	41.7 CFM	Plastic	60 mA	Ball	2 Position Rectangular Connector	3100 RPM	Speed Sensor (Tach)	-4 °F	167 °F	33 dB(A)	54.8 Pa	0.22 in H2O	Tubeaxial	0.551 lb	249.93 g	92 mm	92 mm	3 W	CE CSA PSE TUV UL	38 mm	240 VAC	100 VAC
Sanyo Denki America Inc. 9AD0901H1H1	90 VAC	240 VAC	Plastic	1.48 mł/min	53 CFM	Plastic		Ball	2 Position Rectangular Connector	3850 RPM		-4 °F	167 °F	40 dB(A)	89.7 Pa	0.36 in H2O	Tubeaxial	0.551 lb	249.93 g	92 mm	92 mm	4.5 W	CE CSA PSE TUV UL	38 mm	240 VAC	100 VAC
