MHR-14 Series
Manufacturer: Adam Tech
Beta
⌘K

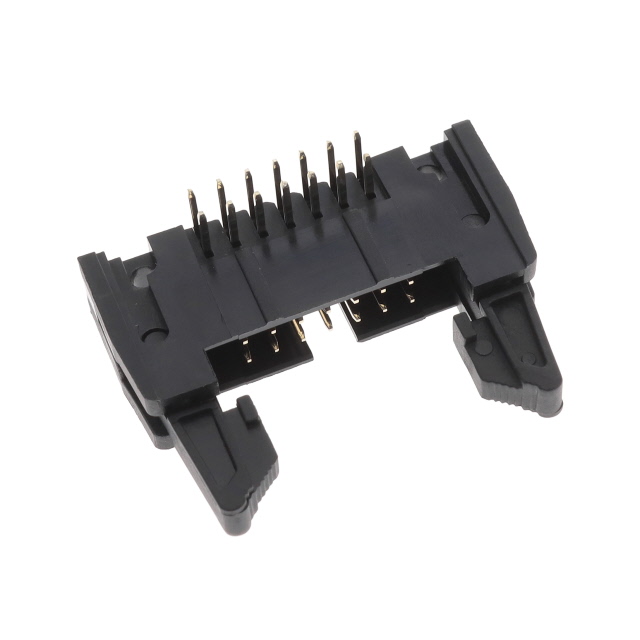

CONN HEADER R/A 14POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Type | Number of Positions | Contact Finish - Post | Style | Fastening Type | Voltage Rating | Connector Type | Contact Length - Post [x] | Contact Length - Post | Insulation Material | Current Rating (Amps) | Insulation Height [z] | Insulation Height | Mounting Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Material | Number of Positions Loaded | Number of Rows [custom] | Shrouding | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Termination | Contact Finish - Mating | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Features | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Flash | Male Pin | 14 | Gold | Board to Cable/Wire | Latch Lock/Eject Hooks | 250 VAC | Header | 0.157 in | 4 mm | Polybutylene Terephthalate (PBT) | 3 A | 0.331 in | 8.4 mm | Right Angle Through Hole | 0.1 in | 2.54 mm | Brass | All | 2 | Shrouded - 4 Wall | Flash | 0.1 " | 2.54 mm | Solder | Gold | Black | -55 C | 105 ░C | UL94 V-0 | Keying Slot | Square |
