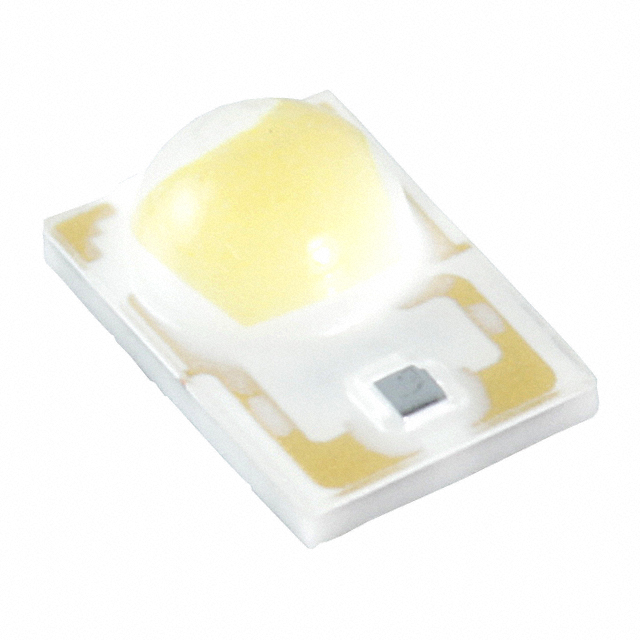

LXH8-PW Series

Manufacturer: Lumileds

Catalog

LED LUXEON WARM WHITE 3000K 3SMD

Part	Thermal Resistance of Package	Package / Case	Voltage - Forward (Vf) (Typ)	Mounting Type	Current - Max [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	CRI (Color Rendering Index)	Viewing Angle	Flux @ 85°C, Current - Test	Lumens/Watt @ Current - Test	Color	CCT (K)	CCT (K)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
Lumileds LXH8-PW30	6 °C/W	1812 (4532 Metric)	2.81 V	Surface Mount	1 A	2.1 mm	0.083 in	80	120 °	174 lm	88 lm/W	Warm White	3-Step MacAdam Ellipse	3000 K	0.177 in	4.49 mm	3.05 mm	0.12 in
Lumileds LXH8-PW50	6 °C/W	1812 (4532 Metric)	2.81 V	Surface Mount	1 A	2.1 mm	0.083 in	80	120 °	190 lm	97 lm/W	Cool White	3-Step MacAdam Ellipse	5000 K	0.177 in	4.49 mm	3.05 mm	0.12 in
