TRF3761-A Series

Low Noise Integer N PLL Frequency Synthesizer With Integrated VCO

Catalog

Low Noise Integer N PLL Frequency Synthesizer With Integrated VCO

Part	Utilized IC / Part	Supplied Contents	Primary Attributes	Function	Type	Output	Divider/Multiplier	Differential - Input:Output	Package / Case	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Number of Circuits	Frequency - Max [Max]	Ratio - Input:Output [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Input

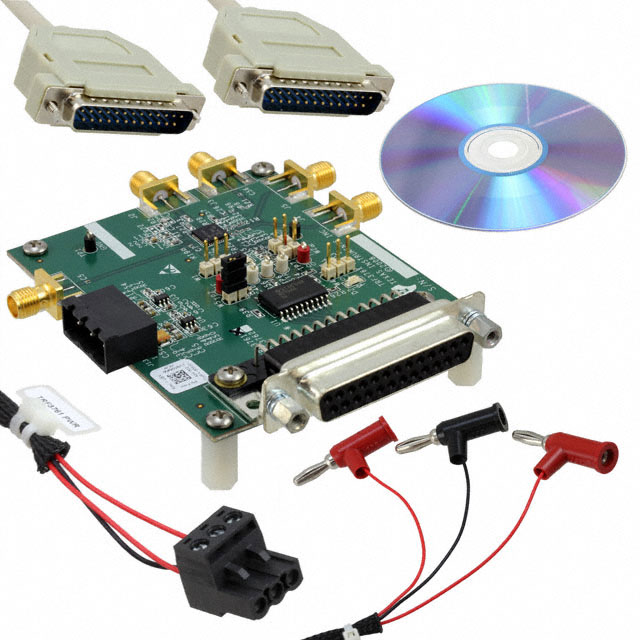

Texas Instruments TRF3761EVM-X	TRF3761	Board(s) Cable(s)	Single Integer-N PLL with VCO	Frequency Synthesizer	Timing

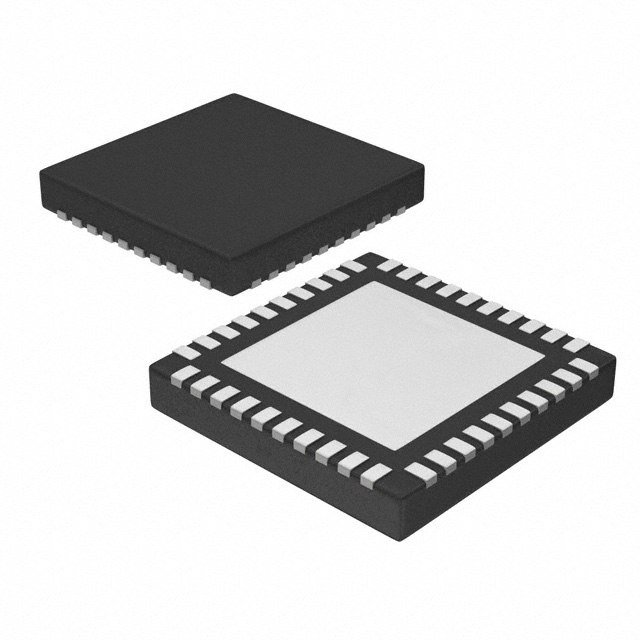

Texas Instruments TRF3761-GIRHAR					Integer-N Synthesizer/VCO	Clock	Yes/No	No/Yes	40-VFQFN Exposed Pad	40-VQFN (6x6)	4.5 V	5.25 V	Surface Mount	1	2.06 GHz	1:1	85 °C	-40 °C	Clock
Texas Instruments TRF3761-FIRHAT					Integer-N Synthesizer/VCO	Clock	Yes/No	No/Yes	40-VFQFN Exposed Pad	40-VQFN (6x6)	4.5 V	5.25 V	Surface Mount	1	1.98 GHz	1:1	85 °C	-40 °C	Clock
Texas Instruments TRF3761-HIRHAT					Integer-N Synthesizer/VCO	Clock	Yes/No	No/Yes	40-VFQFN Exposed Pad	40-VQFN (6x6)	4.5 V	5.25 V	Surface Mount	1	2.18 GHz	1:1	85 °C	-40 °C	Clock
Texas Instruments TRF3761-EIRHAT					Integer-N Synthesizer/VCO	Clock	Yes/No	No/Yes	40-VFQFN Exposed Pad	40-VQFN (6x6)	4.5 V	5.25 V	Surface Mount	1	1.94 GHz	1:1	85 °C	-40 °C	Clock
Texas Instruments TRF3761-FIRHAR					Integer-N Synthesizer/VCO	Clock	Yes/No	No/Yes	40-VFQFN Exposed Pad	40-VQFN (6x6)	4.5 V	5.25 V	Surface Mount	1	1.98 GHz	1:1	85 °C	-40 °C	Clock
Texas Instruments TRF3761-AIRHAR					Integer-N Synthesizer/VCO	Clock	Yes/No	No/Yes	40-VFQFN Exposed Pad	40-VQFN (6x6)	4.5 V	5.25 V	Surface Mount	1	1.6 GHz	1:1	85 °C	-40 °C	Clock
Texas Instruments TRF3761-DIRHAT					Integer-N Synthesizer/VCO	Clock	Yes/No	No/Yes	40-VFQFN Exposed Pad	40-VQFN (6x6)	4.5 V	5.25 V	Surface Mount	1	1.87 GHz	1:1	85 °C	-40 °C	Clock
Texas Instruments TRF3761-HIRHAR					Integer-N Synthesizer/VCO	Clock	Yes/No	No/Yes	40-VFQFN Exposed Pad	40-VQFN (6x6)	4.5 V	5.25 V	Surface Mount	1	2.18 GHz	1:1	85 °C	-40 °C	Clock
Texas Instruments TRF3761-CIRHAT					Integer-N Synthesizer/VCO	Clock	Yes/No	No/Yes	40-VFQFN Exposed Pad	40-VQFN (6x6)	4.5 V	5.25 V	Surface Mount	1	1.79 GHz	1:1	85 °C	-40 °C	Clock

Catalog

Low Noise Integer N PLL Frequency Synthesizer With Integrated VCO

Key Features

• Fully Integrated VCOLow Phase Noise: –137dBc/Hz (at 600kHz, fVCOof 1.9GHz)Low Noise Floor: –158dBc/Hz at 10MHz OffsetInteger-N PLLInput Reference Frequency range: 10MHz to104MHzVCO Frequency Divided by 2-4 OutputOutput Buffer Enable PinProgrammable Charge Pump CurrentHardware and Software Power Down3-Wire Serial InterfaceSingle Supply: 4.5V to 5.25V OperationFully Integrated VCOLow Phase Noise: –137dBc/Hz (at 600kHz, fVCOof 1.9GHz)Low Noise Floor: –158dBc/Hz at 10MHz OffsetInteger-N PLLInput Reference Frequency range: 10MHz to104MHzVCO Frequency Divided by 2-4 OutputOutput Buffer Enable PinProgrammable Charge Pump CurrentHardware and Software Power Down3-Wire Serial InterfaceSingle Supply: 4.5V to 5.25V Operation

Description

TRF3761 is a family of high performance, highly integrated frequency synthesizers, optimized for high performance applications. The TRF3761 includes a low-noise, voltage-controlled oscillator (VCO) and an integer-N PLL. TRF3761 integrates divide-by 1, 2, or 4 options for a more flexible output frequency range. It is controlled through a 3-wire serial-programming-interface (SPI) interface. For power sensitive applications the TRF3761 can be powered down by the SPI interface or externally via chip_en pin 2. TRF3761 is a family of high performance, highly integrated frequency synthesizers, optimized for high performance applications. The TRF3761 includes a low-noise, voltage-controlled oscillator (VCO) and an integer-N PLL. TRF3761 integrates divide-by 1, 2, or 4 options for a more flexible output frequency range. It is controlled through a 3-wire serial-programming-interface (SPI) interface. For power sensitive applications the TRF3761 can be powered down by the SPI interface or externally via chip_en pin 2.
