28S107 Series
Manufacturer: Rosenberger
Beta
⌘K

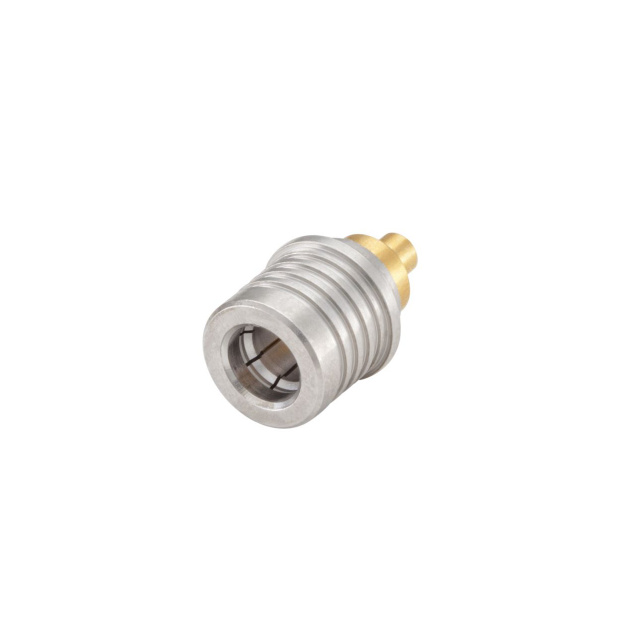

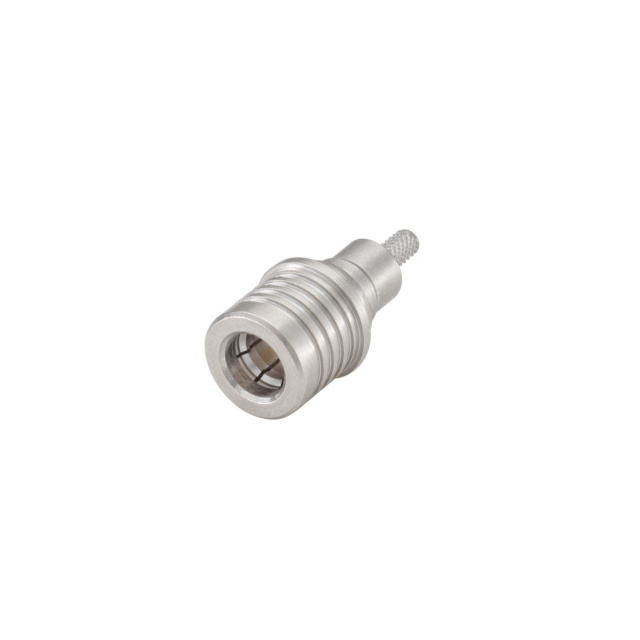

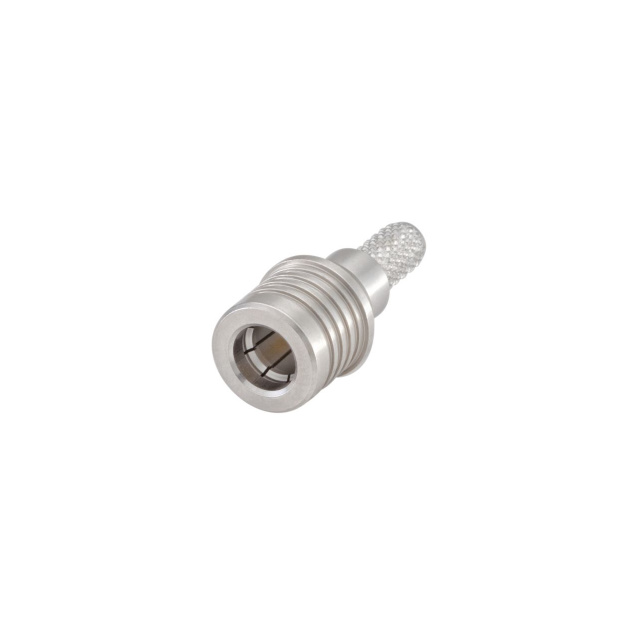

QMA STRAIGHT PLUG
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Voltage Rating | Center Contact Plating | Body Finish | Dielectric Material | Mounting Type | Impedance | Housing Color | Frequency - Max [Max] | Connector Type | Center Contact Material | Cable Group | Cable Group | Contact Termination | Number of Ports | Fastening Type | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 85 °C | -40 C | Brass Bronze | 480 V | Gold | White Bronze | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | 50 Ohms | Silver | 18 GHz | Plug Male Pin | Brass | 223 400 | RG-142B | Solder | 1 | Snap-On | Crimp |
 Rosenberger | 85 °C | -40 C | Brass Bronze | 250 V | Gold | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | 50 Ohms | Gold | 18 GHz | Plug Male Pin | Beryllium Copper | RG-405 (.085" Semi Rigid) | Solder | 1 | Snap-On | Crimp | ||
 Rosenberger | 85 °C | -40 C | Brass Bronze | 350 VDC | Gold | White Bronze | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | 50 Ohms | Silver | 18 GHz | Plug Male Pin | Brass | RG-316 | Solder | 1 | Snap-On | Crimp | |
 Rosenberger | 85 °C | -40 C | Brass Bronze | 350 VDC | Gold | White Bronze | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | 50 Ohms | Silver | 18 GHz | Plug Male Pin | Brass | RG-316 | Solder | 1 | Snap-On | Crimp |
