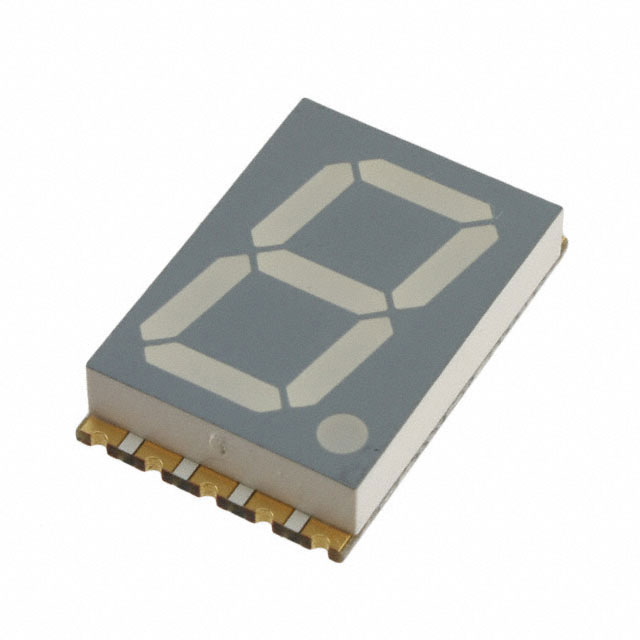

ACSC56 Series

Catalog

DISPLAY 7SEG 0.56" SGL GRN 10SMD

Part	Voltage - Forward (Vf) (Typ)	Color	Wavelength - Peak	Digit/Alpha Size	Digit/Alpha Size	Current - Test	Millicandela Rating	Number of Characters	Common Pin	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Power Dissipation (Max)	Display Type	Power Dissipation (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]
Kingbright ACSC56-41ZGWA-F01	3.3 V	Green	515 nm	0.56 in	14.22 mm	10 mA 20 mA	160 mcd	1	Common Cathode	3.75 mm 17 mm	12.4 mm	0.148 in 0.669 "	0.488 "	10-SMD No Lead	102.5 mW	7-Segment
Kingbright ACSC56-41SYKWA-F01	2 V	Yellow	590 nm	0.56 in	14.22 mm	20 mA	76 mcd	1	Common Cathode	3.75 mm 17 mm	12.4 mm	0.148 in 0.669 "	0.488 "	10-SMD No Lead		7-Segment	75 mw
Kingbright ACSC56-41SRWA-F01	1.85 V	Red	660 nm	0.56 in	14.22 mm	20 mA	26 mcd	1	Common Cathode	3.75 mm 17 mm	12.4 mm	0.148 in 0.669 "	0.488 "	10-SMD No Lead		7-Segment	75 mw
Kingbright ACSC56-41QWA/D-F01	3 V	White		0.56 in	14.2 mm	10 mA	38 mcd	1	Common Cathode	3.75 mm 17 mm	12.4 mm	0.148 in 0.669 "	0.488 "	10-SMD No Lead	120 mW	7-Segment

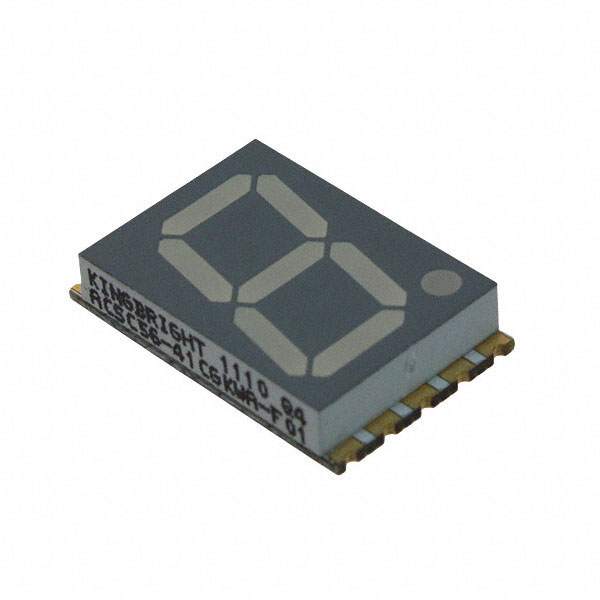

Kingbright ACSC56-41CGKWA-F01	2 V	Green		0.56 in	14.22 mm	10 mA	25 mcd	1	Common Cathode	2.95 mm 3.75 mm 17 mm	12.4 mm	0.116 " 0.148 in 0.669 "	0.488 "	10-SMD No Lead		7-Segment	75 mw	17 mm	0.669 in

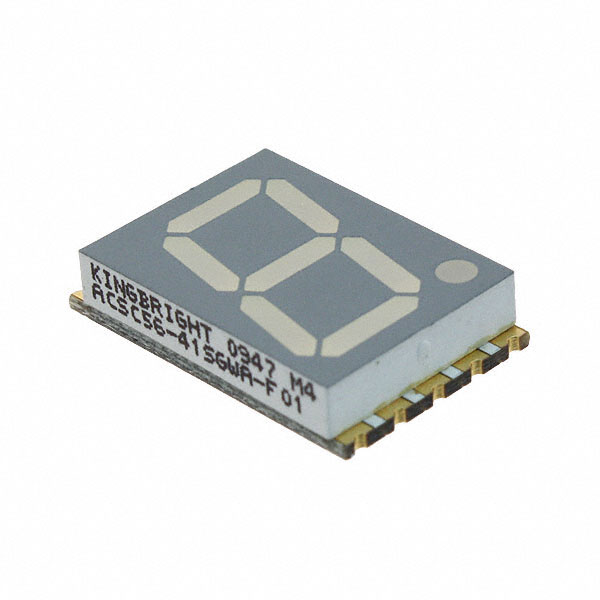

Kingbright ACSC56-41SGWA-F01	2.2 V	Green	565 nm	0.56 in	14.22 mm	20 mA	6 mcd	1	Common Cathode	3.75 mm 17 mm	12.4 mm	0.148 in 0.669 "	0.488 "	10-SMD No Lead		7-Segment	62.5 mW
Kingbright ACSC56-41SEKWA-F01	2.1 V		610 nm	0.56 in	14.22 mm	20 mA	78 mcd	1	Common Cathode	3.75 mm 17 mm	12.4 mm	0.148 in 0.669 "	0.488 "	10-SMD No Lead		7-Segment	75 mw
Kingbright ACSC56-41SURKWA-F01	1.95 V	Red	650 nm	0.56 in	14.22 mm	20 mA	44 mcd	1	Common Cathode	3.75 mm 17 mm	12.4 mm	0.148 in 0.669 "	0.488 "	10-SMD No Lead		7-Segment	75 mw
Kingbright ACSC56-41QBWA/D-F01	3.3 V	Blue	468 nm	0.56 in	14.22 mm	20 mA	15 mcd	1	Common Cathode	3.75 mm 17 mm	12.4 mm	0.148 in 0.669 "	0.488 "	10-SMD No Lead	120 mW	7-Segment
