OSTYD07 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

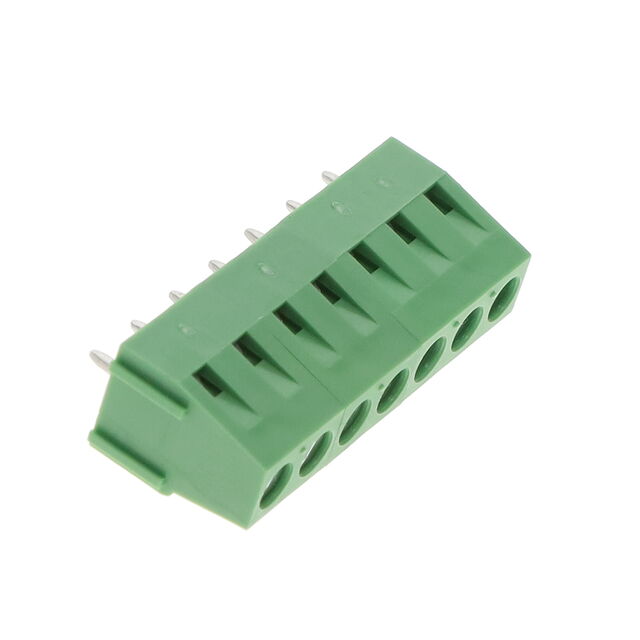

TERM BLK 7P SIDE ENT 5.08MM PCB
| Part | Screw Material - Plating | Contact Material - Plating | Clamp Material - Plating | Screw Thread | Torque - Screw | Torque - Screw | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] | Positions Per Level [custom] | Voltage | Number of Levels | Current | Color | Features | Pitch | Pitch | Mating Orientation | Wire Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | Steel - Zinc Plated | Brass | Brass | M2.5 | 3.5 Lb-In | 0.4 Nm | Thermoplastic | -30 ░C | 105 ░C | Through Hole | 24 AWG | 12 AWG | 7 | 300 VDC | 1 | 10 A | Green | Interlocking (Side) | 5.08 mm | 0.2 in | Horizontal with Board | Screw - Rising Cage Clamp |
 On Shore Technology Inc. | Steel - Zinc Plated | Brass | Brass | M2.5 | 3.5 Lb-In | 0.4 Nm | Thermoplastic | -30 ░C | 105 ░C | Through Hole | 24 AWG | 12 AWG | 7 | 300 VDC | 1 | 10 A | Green | Interlocking (Side) | 5 mm | 0.197 in | Horizontal with Board | Screw - Rising Cage Clamp |
