9WPA0624 Series

Catalog

DC FAN AXIAL BALL BEARING 24V 21.6V TO 26.4V 53.7CFM 56DB 60 X 60 X 25MM SENSOR

Part	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Current Rating (Amps)	Lifetime @ Temp.	Material - Blade	RPM	Features	Static Pressure	Static Pressure	Noise	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [x]	Bearing Type	Termination	Air Flow	Air Flow	Ingress Protection	Width [y]	Power (Watts)	Fan Type	Weight	Weight

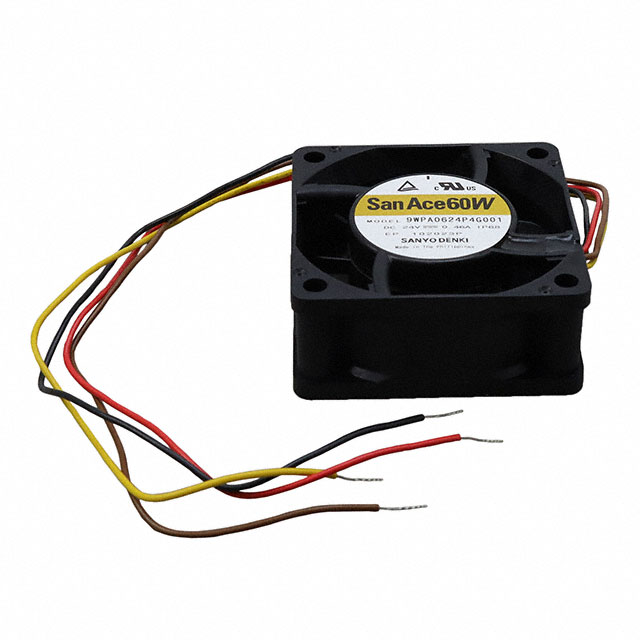

Sanyo Denki America Inc. 9WPA0624P4G001	26.4 VDC	21.6 VDC	Plastic	460 mA	40000 Hrs	Plastic	12000 RPM	Locked Rotor Protection PWM Control Speed Sensor (Tach)	358.7 Pa	1.44 in H2O	56 dB	24 VDC	-20 ░C	70 °C	60 mm	60 mm	Ball	4 Wire Leads	1.5 m³/min	53.7 CFM	IP68 - Dust Tight Waterproof	25 mm	11.04 W	Tubeaxial

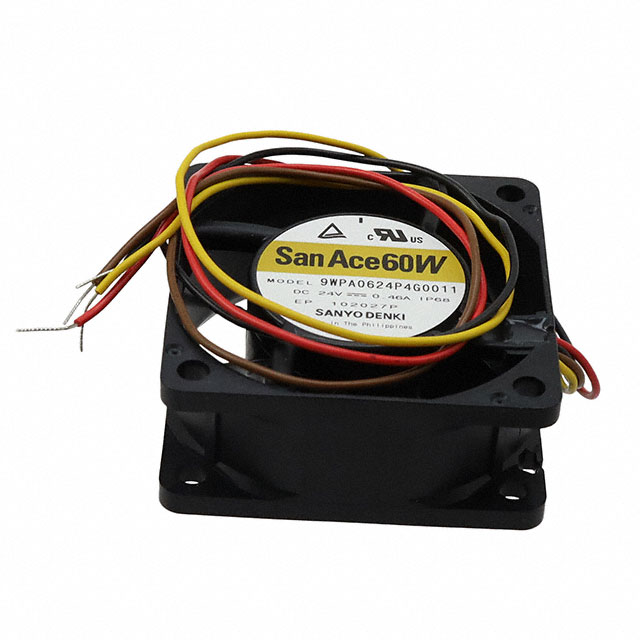

Sanyo Denki America Inc. 9WPA0624P4G0011	26.4 VDC	21.6 VDC	Plastic	460 mA	40000 Hrs	Plastic	12000 RPM	Locked Rotor Protection PWM Control Speed Sensor (Tach)	358.7 Pa	1.44 in H2O	56 dB	24 VDC	-20 ░C	70 °C	60 mm	60 mm	Ball	4 Wire Leads	1.5 m³/min	53.7 CFM	IP68 - Dust Tight Waterproof	25 mm	11.04 W	Tubeaxial
Sanyo Denki America Inc. 9WPA0624P4G003	26.4 VDC	21.6 VDC	Plastic	50 mA	40000 Hrs	Plastic	3500 RPM	Locked Rotor Protection PWM Control Speed Sensor (Tach)	29.9 Pa	0.12 in H2O	22 dB(A)	24 VDC	-20 ░C	70 °C	60 mm	60 mm	Ball	4 Position Rectangular Connector	0.428 m³/min	15.3 CFM	IP68 - Dust Tight Waterproof	25 mm		Tubeaxial	110.22 g	0.243 lb
