2355104 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

4P,2MM,BRK HDR,SRVT,2.8,0.1AU,TB

Part	Mounting Type	Contact Length - Mating	Contact Length - Mating	Fastening Type	Number of Positions	Number of Positions Loaded	Connector Type	Material Flammability Rating	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Voltage Rating	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Features	Number of Rows	Shrouding	Overall Contact Length	Overall Contact Length	Contact Material	Contact Length - Post [x]	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Type

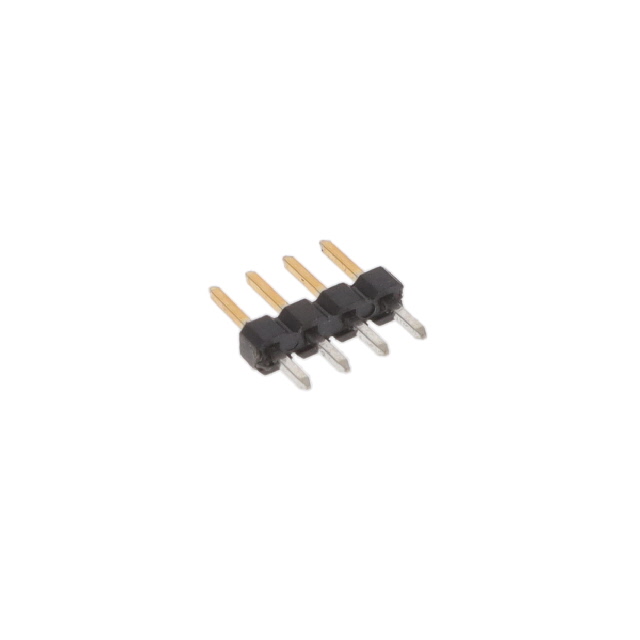

TE Connectivity Raychem Cable Protection 2355104-4	Through Hole	4 mm	0.157 in	Push-Pull	4	All	Breakaway Header	UL94 V-0	2 A	1.5 mm	0.059 "	Gold	2 çm	78.7 çin	125 VAC	Black	0.079 in	2 mm	Square	Pick and Place	1	Unshrouded	8.3 mm	0.327 in	Copper Alloy	0.11 in	2.79 mm	3.94 µin	0.1 µm	Thermoplastic	Tin	125 °C	-40 °C	Solder	Male Pin
TE Connectivity Raychem Cable Protection 1-2355104-0	Through Hole	4 mm	0.157 in	Push-Pull	10	All	Breakaway Header	UL94 V-0	2 A	1.5 mm	0.059 "	Gold	2 çm	78.7 çin	125 VAC	Black	0.079 in	2 mm	Square	Pick and Place	1	Unshrouded	8.3 mm	0.327 in	Copper Alloy	0.11 in	2.79 mm	3.94 µin	0.1 µm	Thermoplastic	Tin	125 °C	-40 °C	Solder	Male Pin

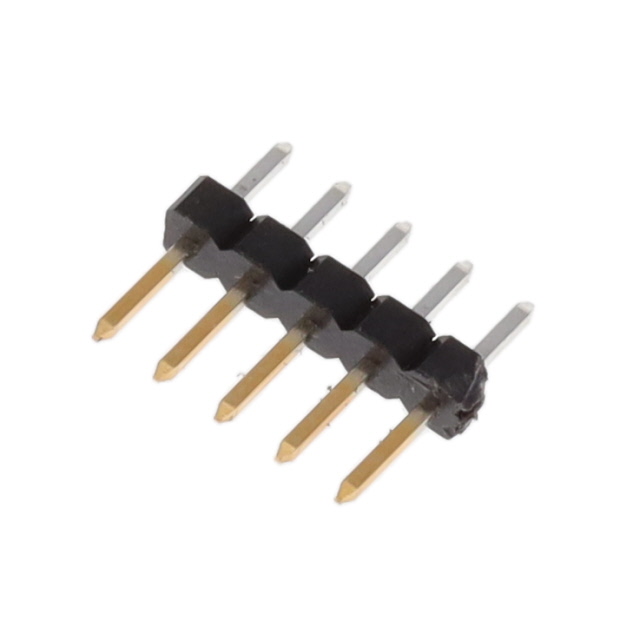

TE Connectivity Raychem Cable Protection 2355104-5	Through Hole	4 mm	0.157 in	Push-Pull		All	Breakaway Header	UL94 V-0	2 A	1.5 mm	0.059 "	Gold	2 çm	78.7 çin	125 VAC	Black	0.079 in	2 mm	Square	Pick and Place	1	Unshrouded	8.3 mm	0.327 in	Copper Alloy	0.11 in	2.79 mm	3.94 µin	0.1 µm	Thermoplastic	Tin	125 °C	-40 °C	Solder	Male Pin

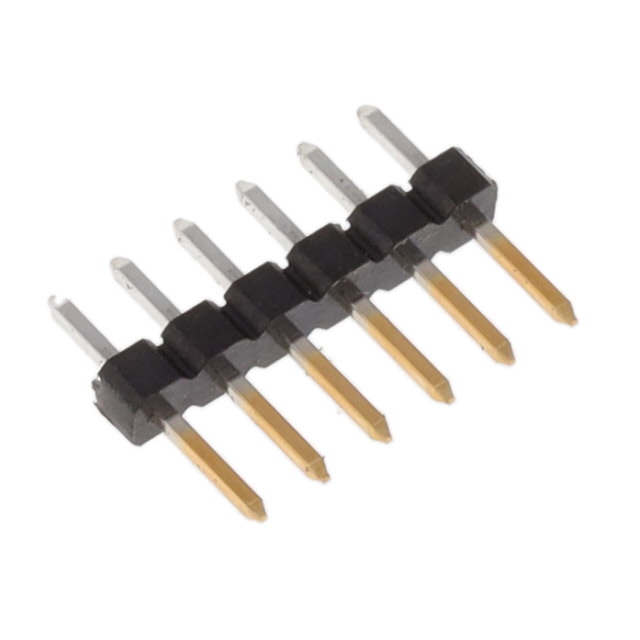

TE Connectivity Raychem Cable Protection 2355104-6	Through Hole	4 mm	0.157 in	Push-Pull	6	All	Breakaway Header	UL94 V-0	2 A	1.5 mm	0.059 "	Gold	2 çm	78.7 çin	125 VAC	Black	0.079 in	2 mm	Square	Pick and Place	1	Unshrouded	8.3 mm	0.327 in	Copper Alloy	0.11 in	2.79 mm	3.94 µin	0.1 µm	Thermoplastic	Tin	125 °C	-40 °C	Solder	Male Pin

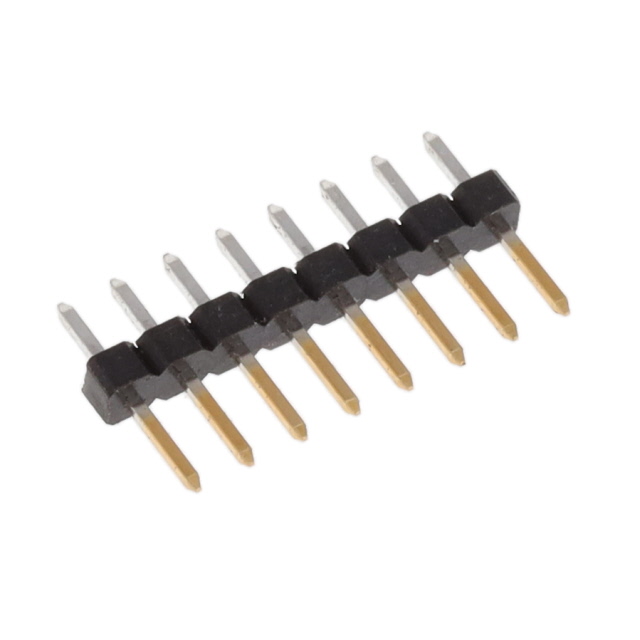

TE Connectivity Raychem Cable Protection 2355104-8	Through Hole	4 mm	0.157 in	Push-Pull	8	All	Breakaway Header	UL94 V-0	2 A	1.5 mm	0.059 "	Gold	2 çm	78.7 çin	125 VAC	Black	0.079 in	2 mm	Square	Pick and Place	1	Unshrouded	8.3 mm	0.327 in	Copper Alloy	0.11 in	2.79 mm	3.94 µin	0.1 µm	Thermoplastic	Tin	125 °C	-40 °C	Solder	Male Pin
