1478046 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

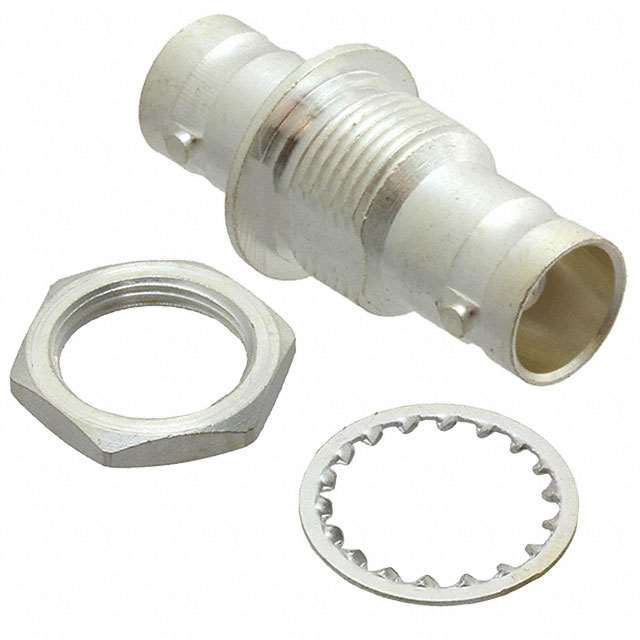

CONN ADAPT JACK-JACK BNC 50 OHM
| Part | Dielectric Material | Body Material | Includes | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Finish | Center Contact Material | Convert From (Adapter End) | Adapter Series | Center Contact Plating | Style | Convert To (Adapter End) | Impedance | Center Gender | Mounting Feature | Fastening Type | Frequency - Max [Max] | Conversion Type | Mounting Type | Adapter Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | Brass | 1 Connector 1 Lockwasher 1 Nut | -65 ░C | 165 °C | 500 | Silver | Brass | BNC Jack Female Socket | BNC to BNC | Silver | Straight | BNC Jack Female Socket | 50 Ohms | Female to Female | Bulkhead | Bayonet Lock | 4 GHz | Same Series | Panel Mount | Jack to Jack |
