3SB2227 Series
Manufacturer: Siemens
Beta
⌘K

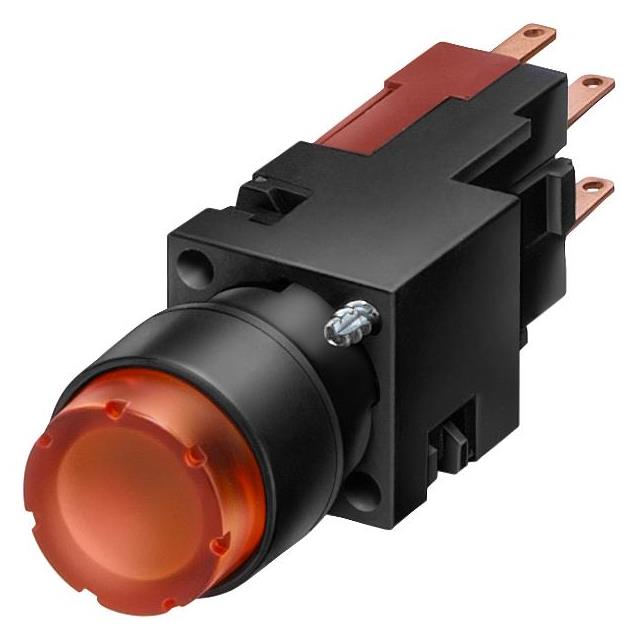

PUSHBUTTON,MOMENTARY,EXT,RED,ILL
| Part | Mechanical Life | Actuator Type | Panel Cutout Dimensions [diameter] | Illumination Voltage (Nominal) | Circuit | Type | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Color - Actuator/Cap | Switch Function | Voltage Rating - AC | Voltage Rating - DC | Illumination Type, Color | Mounting Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Siemens | 3000000 Cycles | Button Round | 16 mm | 24 V | SPST-NC | Illuminated Standard | Quick Connect | -25 °C | 60 °C | IP65 - Dust Tight Water Resistant | Red | On-Mom | 110 V | 24 V | Incandescent | Panel Mount Front | 6 A 10 A |
 Siemens | 3000000 Cycles | Button Flush Round | 16 mm | 24 V | SPST-NC | Illuminated Standard | Quick Connect | -25 °C | 60 °C | IP65 - Dust Tight Water Resistant | Red | On-Mom | 110 V | 24 V | Incandescent | Panel Mount Front | 6 A 10 A |
