ATS-H1 Series

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

Catalog

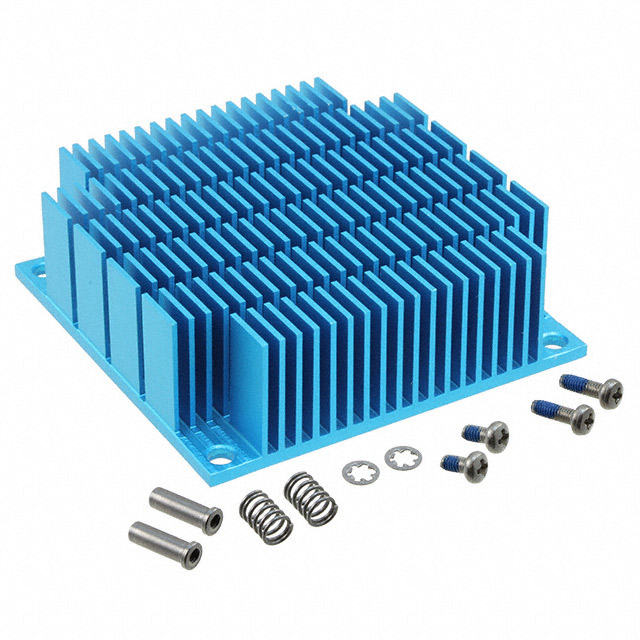

HEATSINK 40X40X35MM R-TAB

...

Part	Attachment Method	Width [y]	Width [y]	Fin Height [custom]	Fin Height [custom]	Package Cooled	Material Finish	Shape	Material	Type	Thermal Resistance @ Forced Air Flow	Length [x]	Length [x]	Width [x]	Width [x]	Fin Height [z]	Fin Height [z]	Width	Width	Fin Height	Fin Height	Length	Shape [custom]	Shape [custom]	Length
Advanced Thermal Solutions Inc. ATS-H1-96-C1-R0	Push Pin	1.575 in	40 mm	1.378 in	35 mm	ASIC BGA CPU LGA	Blue Anodized	Fins Square	Aluminum	Top Mount	5.6 °C/W
Advanced Thermal Solutions Inc. ATS-H1-133-C2-R0	Push Pin			0.394 "	10 mm	ASIC BGA CPU LGA	Blue Anodized	Fins Square	Aluminum	Top Mount	7.42 °C/W	2.756 in	70 mm	70 mm	2.756 "
Advanced Thermal Solutions Inc. ATS-H1-24-C1-R0	Push Pin	2.362 in	60 mm			ASIC BGA CPU LGA	Blue Anodized	Fins Square	Aluminum	Top Mount	8.36 °C/W	2.362 in	60 mm			20 mm	0.79 in
Advanced Thermal Solutions Inc. ATS-H1-28-C3-R0	Push Pin					ASIC BGA CPU LGA	Blue Anodized	Fins Square	Aluminum	Top Mount	10.62 °C/W	2.756 in	70 mm	70 mm	2.756 "	15 mm	0.59 in
Advanced Thermal Solutions Inc. ATS-H1-99-C3-R0	Push Pin					ASIC BGA CPU LGA	Blue Anodized	Fins Square	Aluminum	Top Mount	11.6 °C/W	1.772 in	45 mm			20 mm	0.79 in	1.772 in	45 mm
Advanced Thermal Solutions Inc. ATS-H1-195-C3-R0	Push Pin	1.575 in	40 mm			ASIC BGA CPU LGA	Blue Anodized	Fins Square	Aluminum	Top Mount	11.12 °C/W									0.472 in	12 mm
Advanced Thermal Solutions Inc. ATS-H1-45-C1-R0	Push Pin					ASIC BGA CPU LGA	Blue Anodized	Fins Square	Aluminum	Top Mount	14.95 °C/W	0.984 in		25 mm	0.984 "	20 mm	0.79 in					25 mm
Advanced Thermal Solutions Inc. ATS-H1-95-C3-R0	Push Pin	1.575 in	40 mm			ASIC BGA CPU LGA	Blue Anodized	Fins Square	Aluminum	Top Mount	7.4 °C/W					30 mm	1.181 in
Advanced Thermal Solutions Inc. ATS-H1-38-C1-R0	Push Pin	2.267 in	57.6 mm			ASIC BGA CPU LGA	Blue Anodized		Aluminum	Top Mount	6.4 °C/W					22.86 mm	0.9 in					36.83 mm	Rectangular	Fins	1.45 "
Advanced Thermal Solutions Inc. ATS-H1-97-C3-R0	Push Pin			0.394 "	10 mm	ASIC BGA CPU LGA	Blue Anodized	Fins Square	Aluminum	Top Mount	20.39 °C/W	1.772 in	45 mm					1.772 in	45 mm
