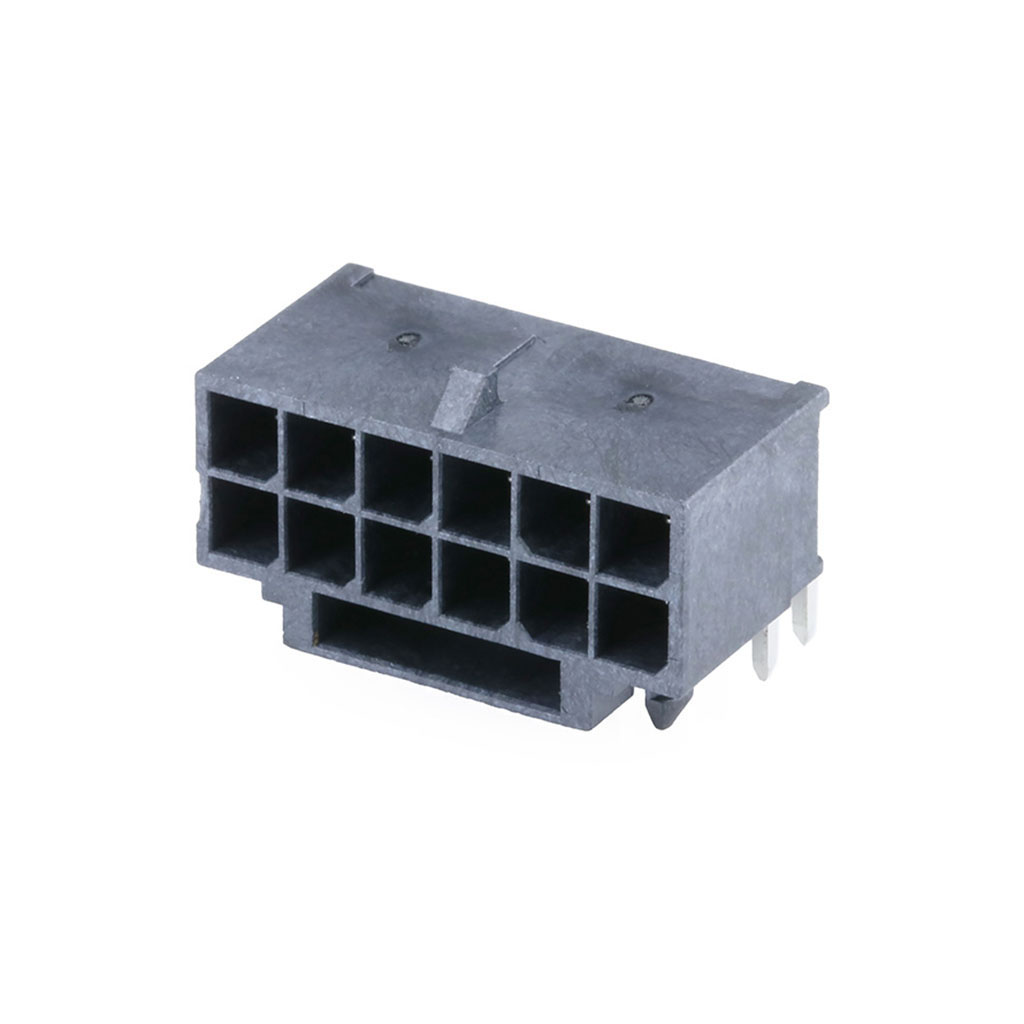

Micro-Fit+ PCIe CEM5 Right-Angle Header, Through Hole, 3.00mm Pitch, Dual Row, 16 Circuits (12 Power, 4 Signal), Matte Tin (Sn) Plating, Black, Tape and Reel
Micro-Fit+ PCIe CEM5 Right-Angle Header, Through Hole, 3.00mm Pitch, Dual Row, 16 Circuits (12 Power, 4 Signal), Matte Tin (Sn) Plating, Black, Tape and Reel
Micro-Fit+ PCIe CEM5 Right-Angle Header, Through Hole, 3.00mm Pitch, Dual Row, 16 Circuits (12 Power, 4 Signal), Matte Tin (Sn) Plating, Black, Tape and Reel
| Part | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Connector Type | Style | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish - Post | Insulation Material | Number of Positions [custom] | Number of Positions [custom] | Contact Type | Voltage Rating | Contact Shape | Mounting Type | Insulation Color | Number of Rows | Features | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Shrouding | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Number of Positions Loaded | Row Spacing - Mating | Row Spacing - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 0.118 in | 3 mm | 8.92 mm | 0.351 in | Header | Board to Cable/Wire | 3.18 mm | 0.125 in | Tin | Liquid Crystal Polymer (LCP) | 4 | 12 | Male Pin | 12 VAC | Square | Through Hole Right Angle | Black | 2 | Board Guide | 60 µin | 1.52 µm | Shrouded - 4 Wall | Copper Alloy | -40 °C | 105 ░C | Solder | UL94 V-0 | 60 Áin | 1.52 Ám | Locking Ramp | All | 3 mm | 0.118 in |
