86130142 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

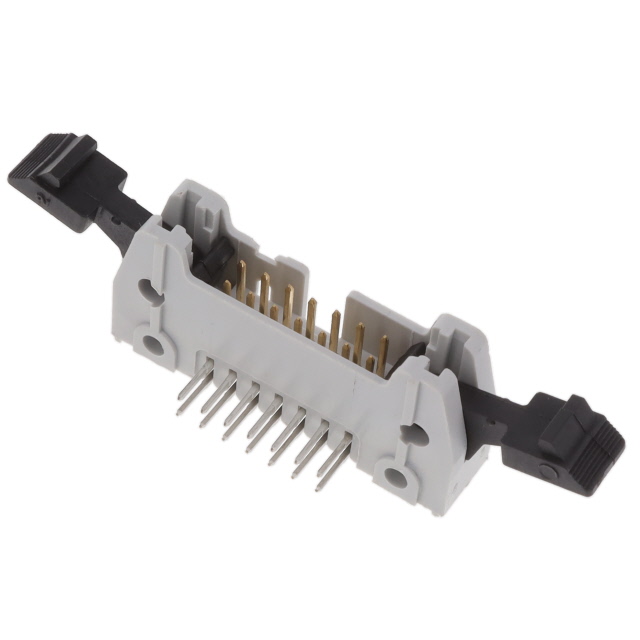

CONN HEADER R/A 14POS 2.54MM
| Part | Number of Rows | Number of Positions | Termination | Contact Length - Mating | Contact Length - Mating [x] | Contact Type | Insulation Material | Contact Finish - Post | Shrouding | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Finish - Mating | Contact Shape | Style | Insulation Color | Contact Length - Post [x] | Contact Length - Post | Number of Positions Loaded | Material Flammability Rating | Fastening Type | Contact Material | Connector Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Voltage Rating | Insulation Height | Insulation Height | Features | Pitch - Mating | Pitch - Mating | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 2 | 14 | Solder | 6.1 mm | 0.24 in | Male Pin | Polybutylene Terephthalate (PBT) | Tin | Shrouded - 4 Wall | -55 °C | 125 °C | Through Hole Right Angle | Gold or Gold-Palladium | Circular | Board to Cable/Wire | Gray | 0.11 in | 2.79 mm | All | UL94 V-0 | Latch Lock/Eject Hooks Long | Copper Alloy | Header | 2.54 mm | 0.1 in | 250 VDC | 8.75 mm | 0.344 in | Keying Slot | 0.1 in | 2.54 mm | |
Amphenol ICC (FCI) | 2 | 14 | Solder | 6.1 mm | 0.24 in | Male Pin | Polybutylene Terephthalate (PBT) | Tin | Shrouded - 4 Wall | -55 °C | 125 °C | Through Hole Right Angle | Gold or Gold-Palladium | Circular | Board to Cable/Wire | Gray | 0.11 in | 2.79 mm | All | UL94 V-0 | Latch Lock/Eject Hooks Long | Copper Alloy | Header | 2.54 mm | 0.1 in | 250 VDC | 8.75 mm | 0.344 in | Keying Slot | 0.1 in | 2.54 mm | |
Amphenol ICC (FCI) | 2 | 14 | Solder | 6.1 mm | 0.24 in | Male Pin | Polybutylene Terephthalate (PBT) | Tin | Shrouded - 4 Wall | -55 °C | 125 °C | Through Hole Right Angle | Gold or Gold-Palladium | Circular | Board to Cable/Wire | Gray | 0.165 in | All | UL94 V-0 | Latch Lock/Eject Hooks Long | Copper Alloy | Header | 2.54 mm | 0.1 in | 250 VDC | 8.75 mm | 0.344 in | Keying Slot | 0.1 in | 2.54 mm | 4.19 mm | |
 Amphenol ICC (FCI) | 2 | 14 | Solder | 6.1 mm | 0.24 in | Male Pin | Polybutylene Terephthalate (PBT) | Tin | Shrouded - 4 Wall | -55 °C | 125 °C | Through Hole Right Angle | Gold or Gold-Palladium | Circular | Board to Cable/Wire | Gray | 0.165 in | All | UL94 V-0 | Latch Lock/Eject Hooks Long | Copper Alloy | Header | 2.54 mm | 0.1 in | 250 VDC | 8.75 mm | 0.344 in | Keying Slot | 0.1 in | 2.54 mm | 4.19 mm |
