19K207 Series
Manufacturer: Rosenberger
Beta
⌘K

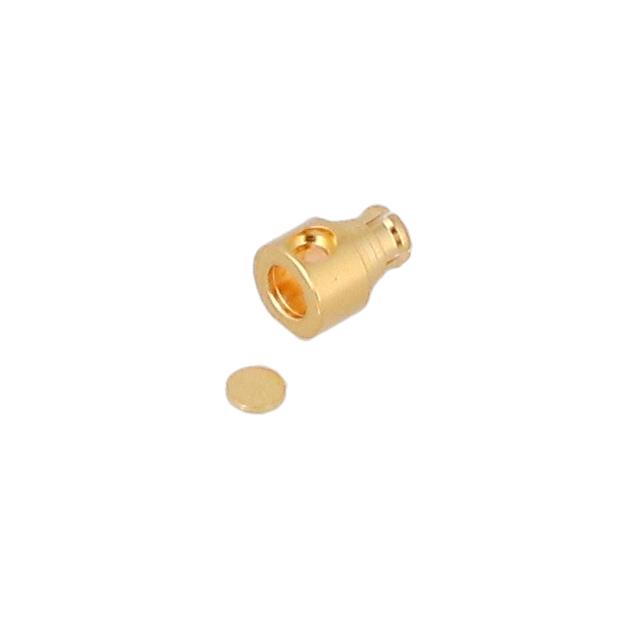

CONN SMP JACK R/A 50OHM SOLDER
| Part | Includes | Voltage Rating | Dielectric Material | Center Contact Plating | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Number of Ports | Shield Termination | Frequency - Max [Max] | Connector Type | Contact Termination | Cable Group | Fastening Type | Impedance | Center Contact Material | Housing Color | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 1 Connector 1 End Cap 1 Insulator | 335 V | Polytetrafluoroethylene (PTFE) | Gold | Beryllium Copper | 155 C | -65 ░C | Gold | 1 | Solder | 26.5 GHz | Female Socket Jack | Solder | RG-405 (.085" Semi Rigid) | Snap-On | 50 Ohms | Beryllium Copper | Gold | Free Hanging (In-Line) Right Angle |
