WP3A10 Series

Catalog

SINGLE COLOR LEDS GRN 30MCD 568NM 60 DEG DIFFUSED

Part	Voltage - Forward (Vf) (Typ)	Package / Case	Lens Style	Millicandela Rating	Current - Test	Wavelength - Dominant	Mounting Type	Size / Dimension [diameter]	Supplier Device Package	Configuration	Lens Transparency	Height (Max) [Max] [z]	Lens Color	Viewing Angle	Color	Lens Size	Lens Size	Wavelength - Peak	Type	Current - DC Forward (If) (Max)	Radiant Intensity (Ie) Min @ If [Min]	Wavelength	Orientation	Operating Temperature [Max]	Operating Temperature [Min]
Kingbright WP3A10GD	2.2 V	Radial	Round with Domed Top	25 mcd	20 mA	568 nm	Through Hole	3 mm	T-1	Standard	Diffused	5 mm	Green	60 °	Green	3 mm	T-1	565 nm
Kingbright WP3A10ID	2 V	Radial	Round with Domed Top	15 mcd	20 mA	617 nm	Through Hole	3 mm	T-1	Standard	Diffused	5 mm	Red	60 °	Red	3 mm	T-1	627 nm

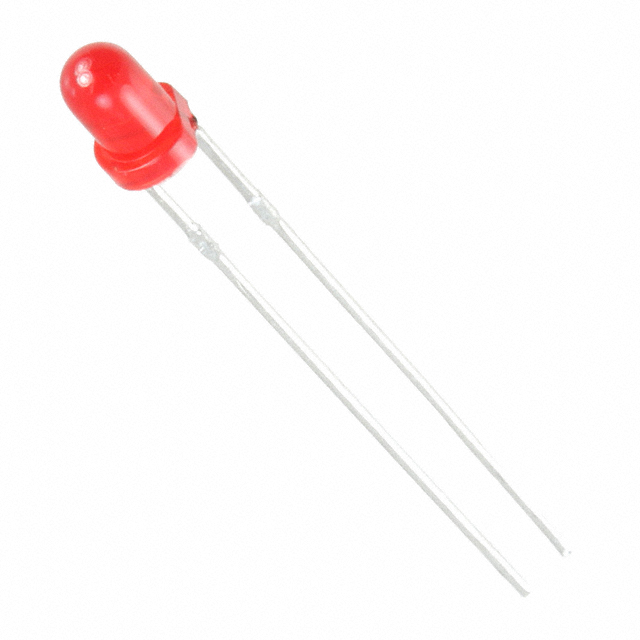

Kingbright WP3A10HD	2.25 V	Radial	Round with Domed Top	1.8 mcd	20 mA	635 nm	Through Hole	3 mm	T-1	Standard	Diffused	5 mm	Red	60 °	Red	3 mm	T-1	700 nm
Kingbright WP3A10SF7C	1.4 V	Radial					Through Hole							50 °					Infrared (IR)	50 mA	7 mW/sr	850 nm	Top View	85 C	-40 ¯C

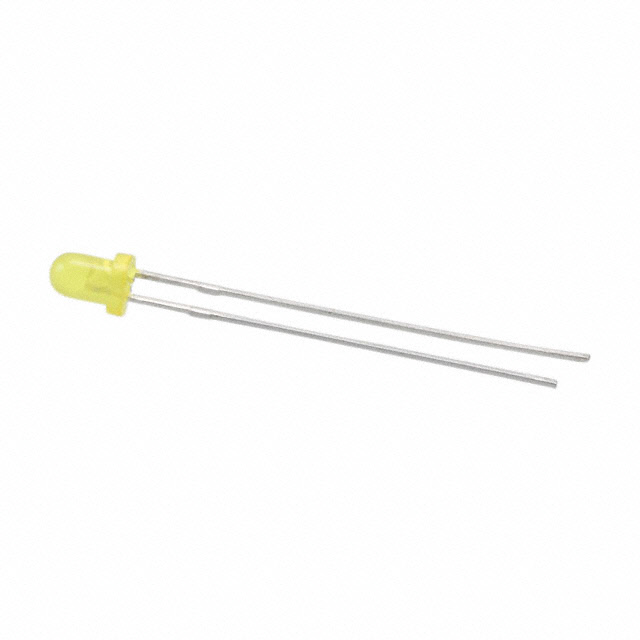

Kingbright WP3A10YD	2.1 V	Radial	Round with Domed Top	15 mcd	20 mA	588 nm	Through Hole	3 mm	T-1 (3mm)	Standard	Diffused	5 mm	Yellow	60 °	Yellow	3 mm	T-1	590 nm
