327938 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

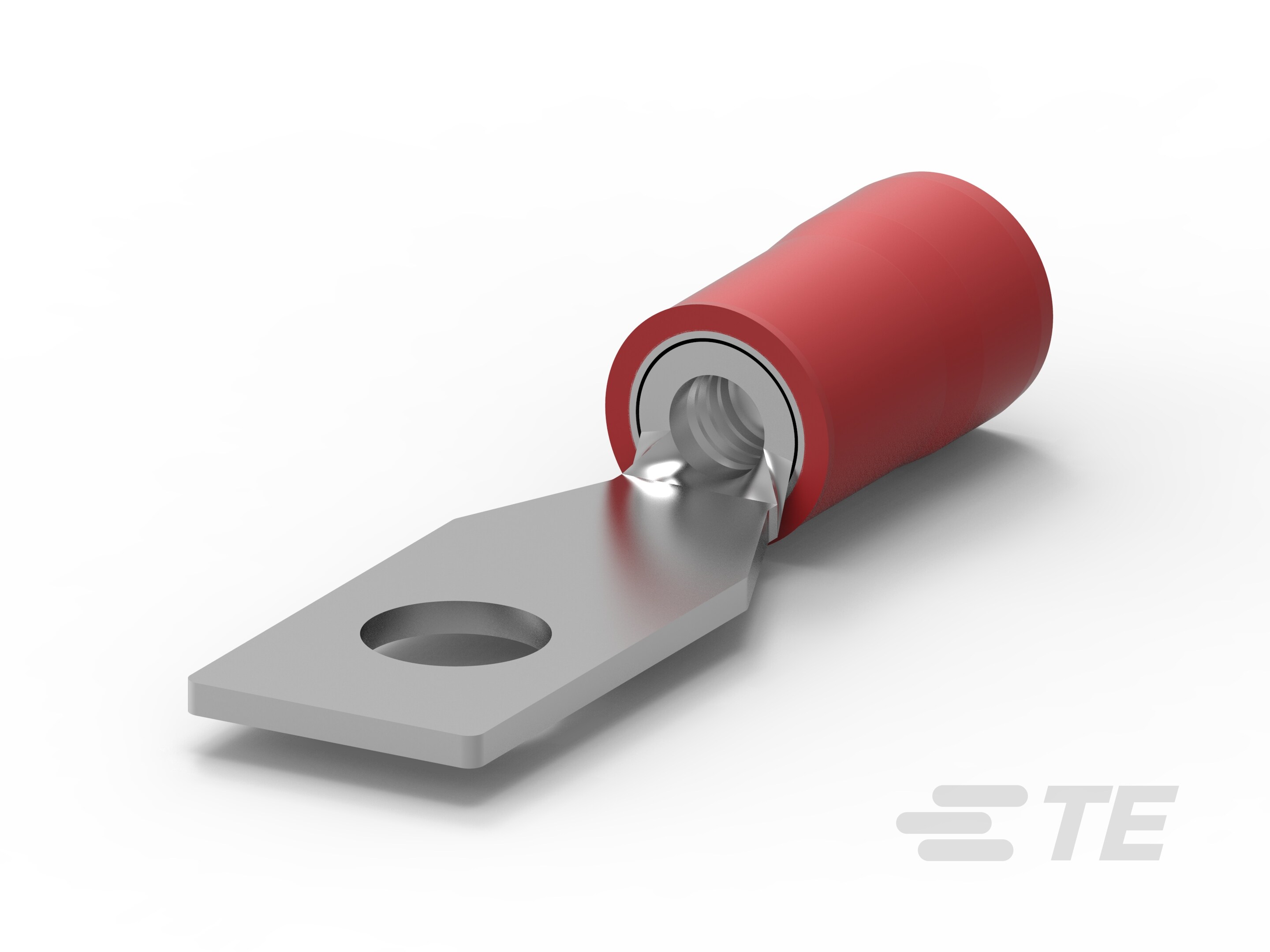

RECTANGULAR TONGUE TERMINAL 16-22AWG COPPER RED 28.16MM TIN LOOSE
| Part | Insulation | Mounting Type | Length - Overall [x] | Length - Overall [x] | Color | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Termination | Tab Thickness | Tab Thickness | Contact Finish | Width - Outer Edges [y] | Width - Outer Edges [y] | Terminal Type | Contact Material | Features | Wire Gauge [Max] | Wire Gauge [Min] | Terminal Style | Stud/Tab Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Insulated | Free Hanging (In-Line) | 1.109 in | 28.17 mm | Red | 0.145 in | 3.68 mm | Crimp | 0.031 " | 0.79 mm | Tin | 7.67 mm | 0.302 in | Rectangular Tongue | Copper | Serrated Termination | 22 AWG | 16 AWG | Single Stud Hole | 6 Stud |
