SA14300 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

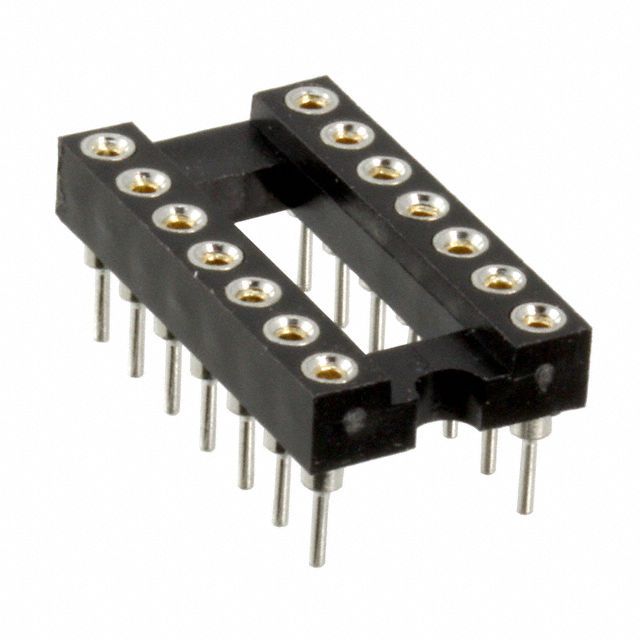

CONN IC DIP SOCKET 14POS GOLD
| Part | Contact Resistance | Current Rating (Amps) | Material Flammability Rating | Contact Finish Thickness - Mating | Pitch - Post | Pitch - Post | Contact Material - Mating | Contact Material - Post [custom] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Features | Type | Type | Type | Housing Material | Termination | Pitch - Mating | Pitch - Mating | Mounting Type | Number of Positions or Pins (Grid) | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 4 mOhm | 3 A | UL94 V-0 | Flash | 0.1 in | 2.54 mm | Beryllium Copper | Brass | 200 µin | 5.08 µm | -40 C | 105 ░C | Gold | Open Frame | 7.62 mm | 0.3 in | DIP | Glass Filled Polyester Thermoplastic | Solder | 0.1 " | 2.54 mm | Through Hole | 14 | Tin |
