GBC31S Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD 31POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Contact Finish - Post	Connector Type	Material Flammability Rating	Termination	Style	Number of Rows	Insulation Material	Number of Positions Loaded	Current Rating (Amps)	Insulation Height	Insulation Height	Number of Positions [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Length - Mating	Contact Length - Mating	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Shrouding	Insulation Color
Sullins Connector Solutions GBC31SFBN-M30	2.54 µm	100 µin	Male Pin	Tin	Header Breakaway	UL94 V-0	Solder	Board to Board Cable	1	Nylon 9T Polyamide (PA9T)	All	3 A	0.1 in	2.54 mm	31	150 °C	-65 ░C	Square	Phosphor Bronze	0.25 µm	10 µin	Surface Mount	8.08 mm	0.318 in	Push-Pull	0.1 "	2.54 mm	Gold	Unshrouded	Black

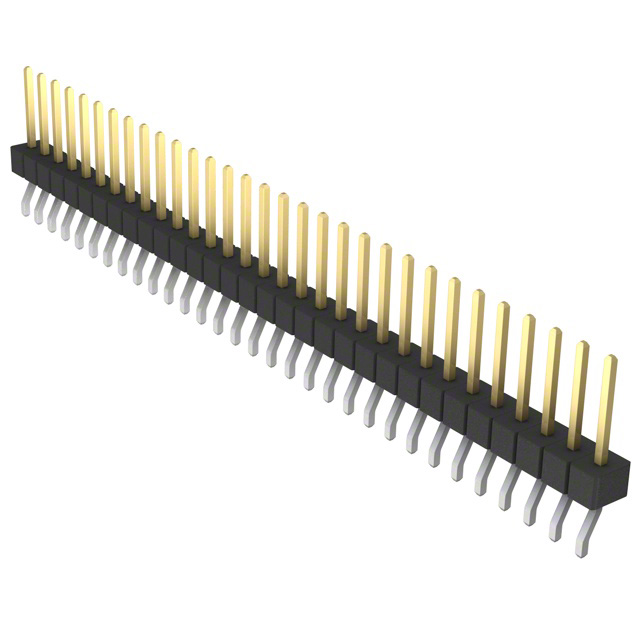

Sullins Connector Solutions GBC31SGSN-M89	2.54 µm	100 µin	Male Pin	Tin	Header Breakaway	UL94 V-0	Solder	Board to Board Cable	1	Nylon 9T Polyamide (PA9T)	All	3 A	0.14 in	3.56 mm	31	150 °C	-65 ░C	Square	Phosphor Bronze	0.25 µm	10 µin	Right Angle Surface Mount	8.08 mm	0.318 in	Push-Pull	0.1 "	2.54 mm	Gold	Unshrouded	Black

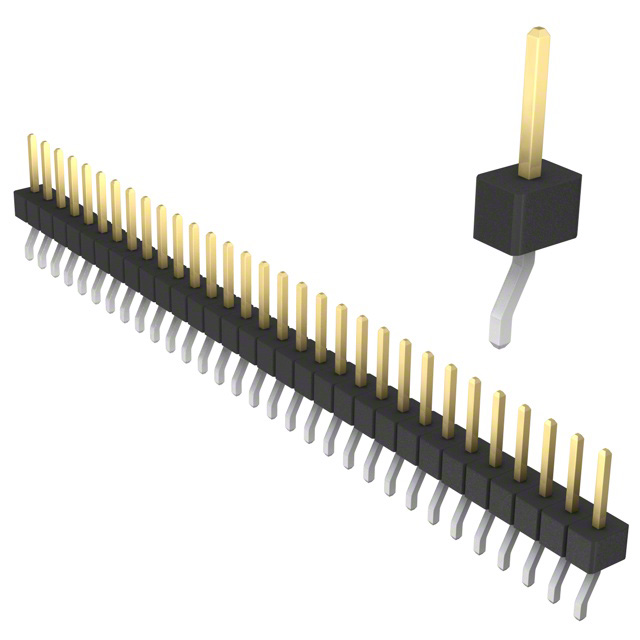

Sullins Connector Solutions GBC31SBSN-M89	2.54 µm	100 µin	Male Pin	Tin	Header Breakaway	UL94 V-0	Solder	Board to Board Cable	1	Nylon 9T Polyamide (PA9T)	All	3 A	0.14 in	3.56 mm	31	150 °C	-65 ░C	Square	Phosphor Bronze	0.25 µm	10 µin	Right Angle Surface Mount	5.84 mm	0.23 in	Push-Pull	0.1 "	2.54 mm	Gold	Unshrouded	Black
Sullins Connector Solutions GBC31SABN-M30	2.54 µm	100 µin	Male Pin	Tin	Header Breakaway	UL94 V-0	Solder	Board to Board Cable	1	Nylon 9T Polyamide (PA9T)	All	3 A	0.1 in	2.54 mm	31	150 °C	-65 ░C	Square	Phosphor Bronze	0.25 µm	10 µin	Surface Mount	5.84 mm	0.23 in	Push-Pull	0.1 "	2.54 mm	Gold	Unshrouded	Black
