12TQ035 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

DIODE SCHOTTKY 35V 15A TO263AB

Part	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Package / Case	Capacitance @ Vr, F	Speed	Mounting Type	Voltage - Forward (Vf) (Max) @ If [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Current - Reverse Leakage @ Vr	Supplier Device Package	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Qualification	Grade
Vishay General Semiconductor - Diodes Division VS-12TQ035STRL-M3	-55 °C	150 °C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	900 pF	200 mA 500 ns	Surface Mount	560 mV	35 V	Schottky	1.75 mA	TO-263AB (D2PAK)	15 A

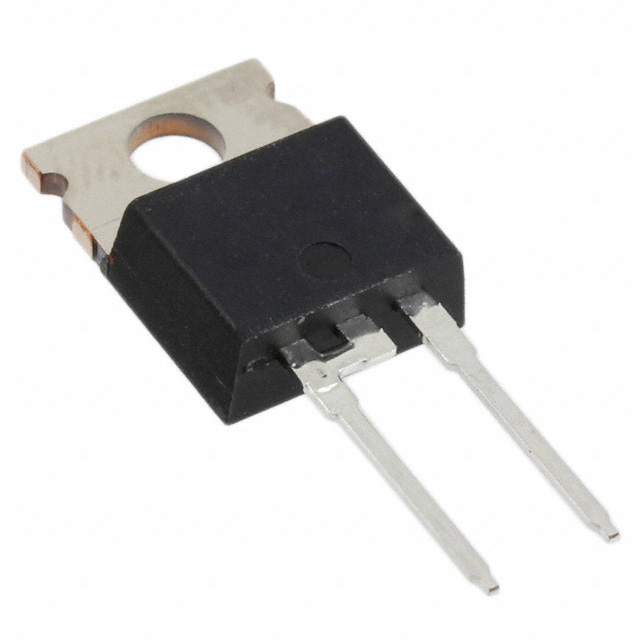

Vishay General Semiconductor - Diodes Division VS-12TQ035-M3	-55 °C	150 °C	TO-220-2	900 pF	200 mA 500 ns	Through Hole		35 V	Schottky	1.75 mA	TO-220AC	15 A	710 mV
Vishay General Semiconductor - Diodes Division VS-12TQ035S-M3	-55 °C	150 °C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	900 pF	200 mA 500 ns	Surface Mount	560 mV	35 V	Schottky	1.75 mA	TO-263AB (D2PAK)	15 A
Vishay General Semiconductor - Diodes Division VS-12TQ035STRRHM3	-55 °C	150 °C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	900 pF	200 mA 500 ns	Surface Mount	560 mV	35 V	Schottky	1.75 mA	TO-263AB (D2PAK)	15 A		AEC-Q101	Automotive
Vishay General Semiconductor - Diodes Division 12TQ035	-55 °C	150 °C	TO-220-2		200 mA 500 ns	Through Hole	560 mV	35 V	Schottky	1.75 mA	TO-220AC	15 A
Vishay General Semiconductor - Diodes Division VS-12TQ035STRR-M3	-55 °C	155 °C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	900 pF	200 mA 500 ns	Surface Mount	560 mV	35 V	Schottky	1.75 mA	TO-263AB (D2PAK)	15 A
Vishay General Semiconductor - Diodes Division VS-12TQ035PBF	-55 °C	150 °C	TO-220-2		200 mA 500 ns	Through Hole	560 mV	35 V	Schottky	1.75 mA	TO-220AC	15 A
Vishay General Semiconductor - Diodes Division VS-12TQ035STRLPBF	-55 °C	150 °C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	900 pF	200 mA 500 ns	Surface Mount	560 mV	35 V	Schottky	1.75 mA	TO-263AB (D2PAK)	15 A
Vishay General Semiconductor - Diodes Division VS-12TQ035-N3	-55 °C	150 °C	TO-220-2	900 pF	200 mA 500 ns	Through Hole	560 mV	35 V	Schottky	50 µA	TO-220AC	15 A
