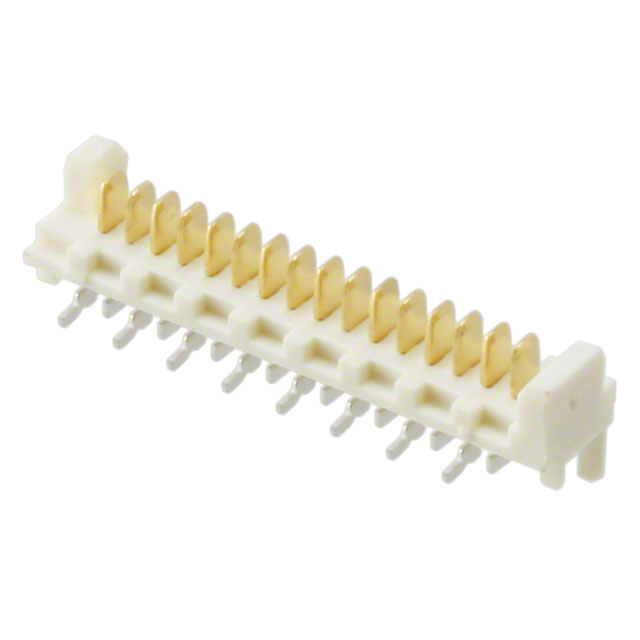

Picoflex PF-50 Header without PCB Pegs, Vertical, Low Profile, Surface Mount, Tin (Sn) Plated, 16 Circuits, Tape and Reel, Natural
Picoflex PF-50 Header without PCB Pegs, Vertical, Low Profile, Surface Mount, Tin (Sn) Plated, 16 Circuits, Tape and Reel, Natural
Picoflex PF-50 Header without PCB Pegs, Vertical, Low Profile, Surface Mount, Tin (Sn) Plated, 16 Circuits, Tape and Reel, Natural
| Part | Applications | Contact Finish Thickness - Post [custom] | Contact Finish Thickness - Post [custom] | Material Flammability Rating | Contact Length - Mating | Contact Length - Mating | Fastening Type | Insulation Height [z] | Insulation Height [z] | Contact Shape | Number of Positions | Shrouding | Termination | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Features | Number of Positions Loaded | Contact Type | Insulation Material | Number of Rows | Style | Mounting Type | Pitch - Mating | Pitch - Mating | Contact Material | Insulation Color | Connector Type | Current Rating (Amps) | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | |||||||||||||||||||||||||||||||
 Molex | Automotive General Purpose Industrial Medical | 118.1 µin | 3 µm | UL94 V-0 | 2.15 mm | 0.085 in | Push-Pull | 4.1 mm | 0.161 in | Rectangular | 16 | Shrouded - 2 Wall | Solder | Palladium-Nickel | 24 µin | 0.61 µm | Tin | Board Guide | All | Male Blade | Glass Filled Nylon Polyamide (PA) | 1 | Board to Cable/Wire | Surface Mount | 1.27 mm | 0.05 in | Cartridge Brass | Natural | Header | ||
 Molex | Automotive General Purpose Industrial Medical | UL94 V-0 | 2.15 mm | 0.085 in | Push-Pull | 6.4 mm | 0.252 " | Rectangular | 20 | Shrouded - 2 Wall | Solder | 118.1 µin | 3 µm | Tin | Board Guide | All | Male Blade | Glass Filled Nylon Polyamide (PA) | 1 | Board to Cable/Wire | Surface Mount | 1.27 mm | 0.05 in | Brass | Natural | Header | 1.2 A | 250 V | |||
Molex | Automotive General Purpose Industrial Medical | 118.1 µin | 3 µm | UL94 V-0 | 2.15 mm | 0.085 in | Push-Pull | 6.4 mm | 0.252 " | Rectangular | 22 | Shrouded - 2 Wall | Solder | Gold | 30 Áin | 0.76 Ám | Tin | Board Guide | All | Male Blade | Glass Filled Nylon Polyamide (PA) | 1 | Board to Cable/Wire | Surface Mount | 1.27 mm | 0.05 in | Brass | Natural | Header | 1.2 A | 250 V |

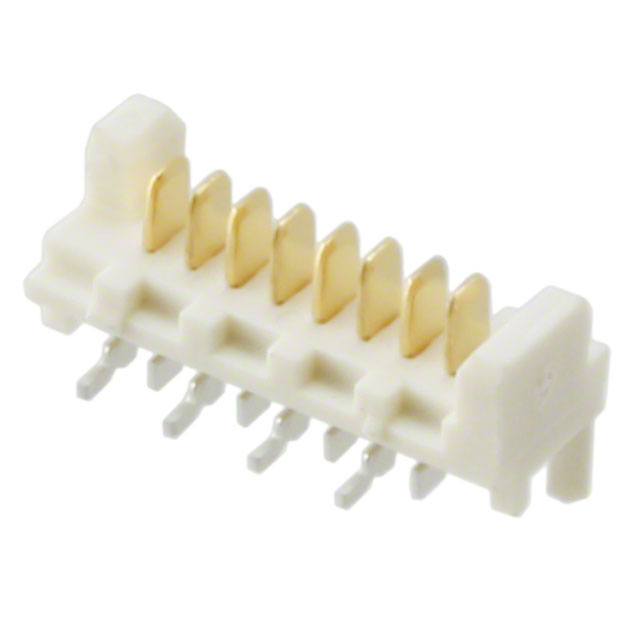

 Molex | Automotive General Purpose Industrial Medical | 118.1 µin | 3 µm | UL94 V-0 | 2.15 mm | 0.085 in | Push-Pull | 4.1 mm | 0.161 in | Rectangular | 8 | Shrouded - 2 Wall | Solder | Palladium-Nickel | 24 µin | 0.61 µm | Tin | Board Guide | All | Male Blade | Glass Filled Nylon Polyamide (PA) | 1 | Board to Cable/Wire | Surface Mount | 1.27 mm | 0.05 in | Cartridge Brass | Natural | Header | ||
 Molex | |||||||||||||||||||||||||||||||

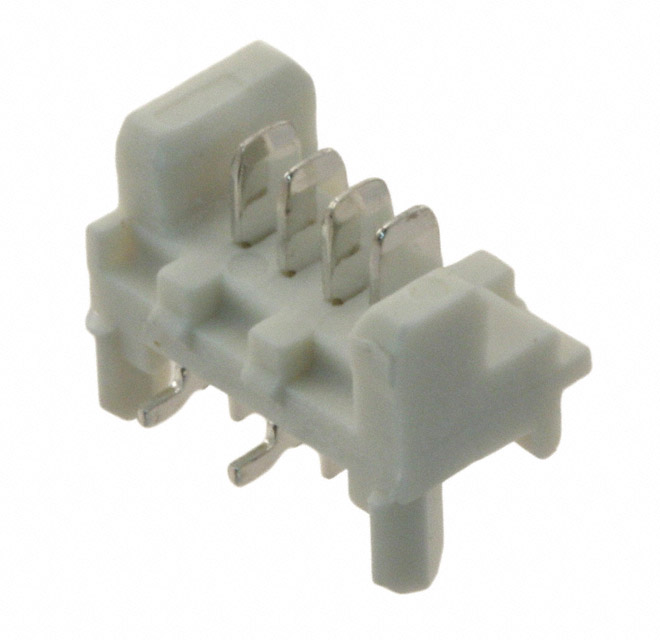

 Molex | Automotive General Purpose Industrial Medical | UL94 V-0 | 2.15 mm | 0.085 in | Push-Pull | 4.1 mm | 0.161 in | Rectangular | 4 | Shrouded - 2 Wall | Solder | 118.1 µin | 3 µm | Tin | Board Guide | All | Male Blade | Glass Filled Nylon Polyamide (PA) | 1 | Board to Cable/Wire | Surface Mount | 1.27 mm | 0.05 in | Cartridge Brass | Natural | Header | |||||
 Molex |
