W2D250 Series

Catalog

FAN IMP MTRZD 320X85MM 440VAC

Part	Current Rating (Amps)	Material - Blade	Termination	Features	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Width [y]	Ingress Protection	Fan Type	Voltage - Rated	Bearing Type	Size / Dimension	Size / Dimension [diameter]	Power (Watts)	RPM	Material - Frame	Current Rating (Amps) [Min]	Current Rating (Amps) [Max]	Termination	Static Pressure	Static Pressure	Voltage - Rated [Min]	Voltage - Rated [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Air Flow	Air Flow	Size / Dimension [x]	Size / Dimension [z]

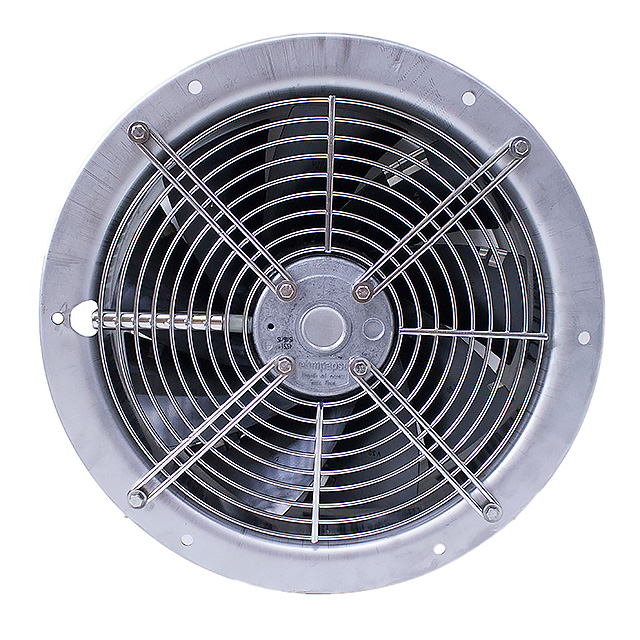

ebm-papst Inc. W2D250-CH12-14	0.2 A	Steel	9	Thermal Overload Protector (TOP)	CE	45 °C	-40 C	85 mm	IP44	Motorized Impellers	440 VAC	Ball	Round	320 mm	75 W	1850 RPM

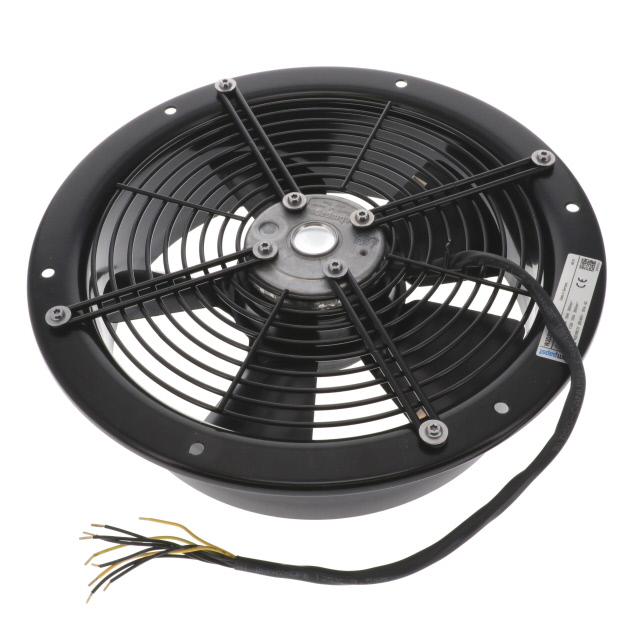

ebm-papst Inc. W2D250-CA06-52		Steel		Dual Voltage Thermal Overload Protector (TOP)	CE CSA UL	65 °C	-25 °C	85 mm	IP44	3 Phase Tubeaxial		Ball	Round	320 mm	150 W	2900 RPM	Steel	0.22 A	0.38 A	9 Wire Leads with Splice Terminals	125 Pa	0.502 in H2O	265 VAC	460 VAC	-25 °C	65 °C
ebm-papst Inc. W2D250-CA02-01		Steel		Dual Voltage	CE EAC	40 °C	-25 °C	85 mm	IP44	3 Phase Tubeaxial		Ball	Round	320 mm	160 W	2950 RPM	Steel	0.26 A	0.45 A	7 Wire Leads with Splice Terminals	299.9 Pa	1.204 in H2O	230 VAC	400 VAC	-25 °C	40 °C	618.5 CFM	17.32 m³/min

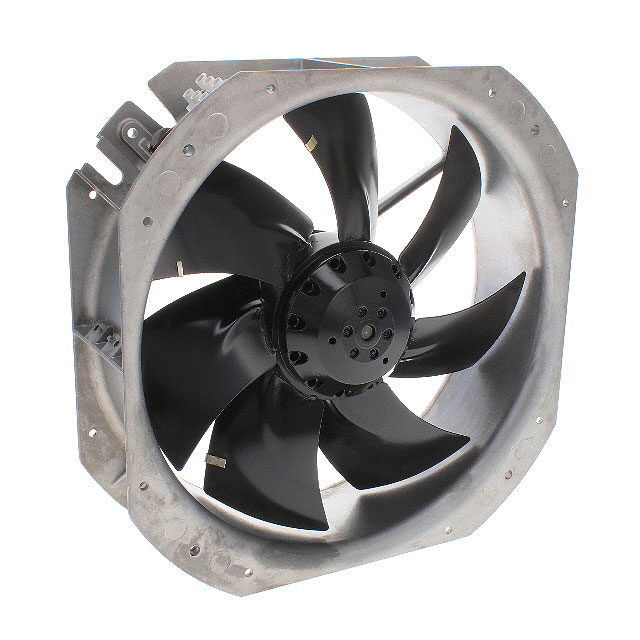

ebm-papst Inc. W2D250-HH14-09		Steel		Dual Voltage	CCC CE CSA EAC UL	60 °C	-25 °C	90.2 mm	IP44	3 Phase Tubeaxial		Ball			145 W 175 W	2800 RPM	Aluminum	0.23 A	0.24 A	Terminal Block			400 VAC	460 VAC					320 mm	320 mm
