M1140 Series

Catalog

CABLE 20COND 20AWG SHLD 1000'

Part	Shield Coverage	Shield Material	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Conductor Material	Length	Length	Voltage	Conductor Insulation	Cable Type	Wire Gauge	Ratings	Jacket (Insulation) Material	Number of Conductors	Length [x]	Length [x]
ALPHA WIRE M1140 SL001	90 %	Copper Tinned	Braid	26	34 AWG	0.035 in	0.889 mm	11.79 mm	0.464 in	Slate	Copper Tinned	304.8 m	1000 ft	300 VDC	Polyethylene (PE)	Multi-Conductor	20 AWG	UL Style 2094	Poly-Vinyl Chloride (PVC)	20
ALPHA WIRE M1140 SL002	90 %	Copper Tinned	Braid	26	34 AWG	0.035 in	0.889 mm	11.79 mm	0.464 in	Slate	Copper Tinned	152.4 m	500 ft	300 VDC	Polyethylene (PE)	Multi-Conductor	20 AWG	UL Style 2094	Poly-Vinyl Chloride (PVC)	20

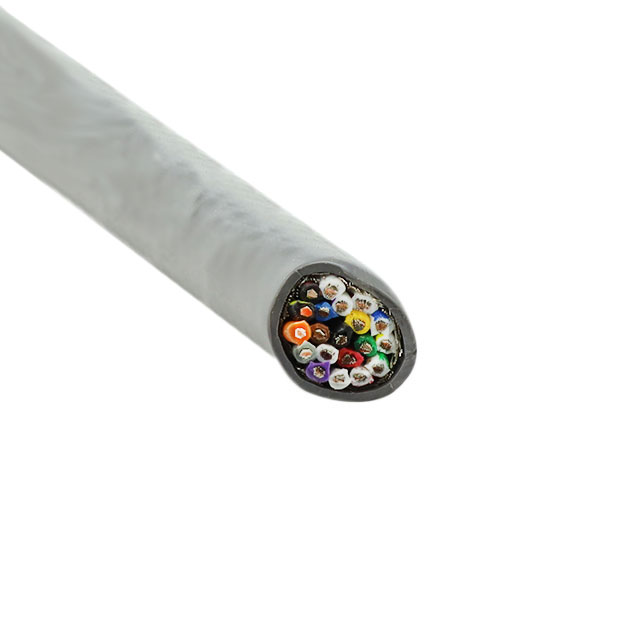

ALPHA WIRE M1140 SL005	90 %	Copper Tinned	Braid	26	34 AWG	0.035 in	0.889 mm	11.79 mm	0.464 in	Slate	Copper Tinned			300 VDC	Polyethylene (PE)	Multi-Conductor	20 AWG	UL Style 2094	Poly-Vinyl Chloride (PVC)	20	100 ft	30.5 m
