5219 Series
Manufacturer: Bourns Inc.
Beta
⌘K

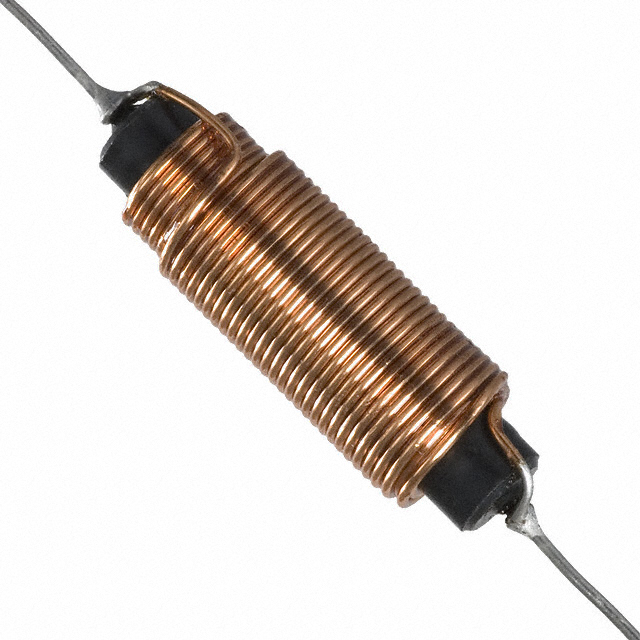

HASH CHOKE WIREWOUND 4.9UH 20% 7.96MHZ IRON 15A 0.016OHM DCR AXL BOX
| Part | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [diameter] | Size / Dimension [diameter] | Current Rating (Amps) | Inductance | Inductance Frequency - Test | Type | Material - Core | Mounting Type | Package / Case | DC Resistance (DCR) [Max] | Frequency - Self Resonant | Tolerance | Operating Temperature [Min] | Operating Temperature [Max] | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 31.75 mm | 1.25 " | 15.24 mm | 0.6 " | 15 A | 4.9 µH | 7.96 MHz | Drum Core Wirewound | Iron | Through Hole | Axial | 16 mOhm | 95 MHz | 20 % | -55 C | 105 ░C | Unshielded |
